Tube Furnace 1200°C | 440 Mm Heating Zone FMT-06

Tube Furnace 1200°C | 440 Mm Heating Zone FMT-06

Name: Tube Furnace 1200°C | 440 Mm Heating Zone FMT-06
Brand: Labotemp
SKU: FMT-06
Price: 4564.00 USD
Availability: InStock
Rating: 4.9 (982 reviews)

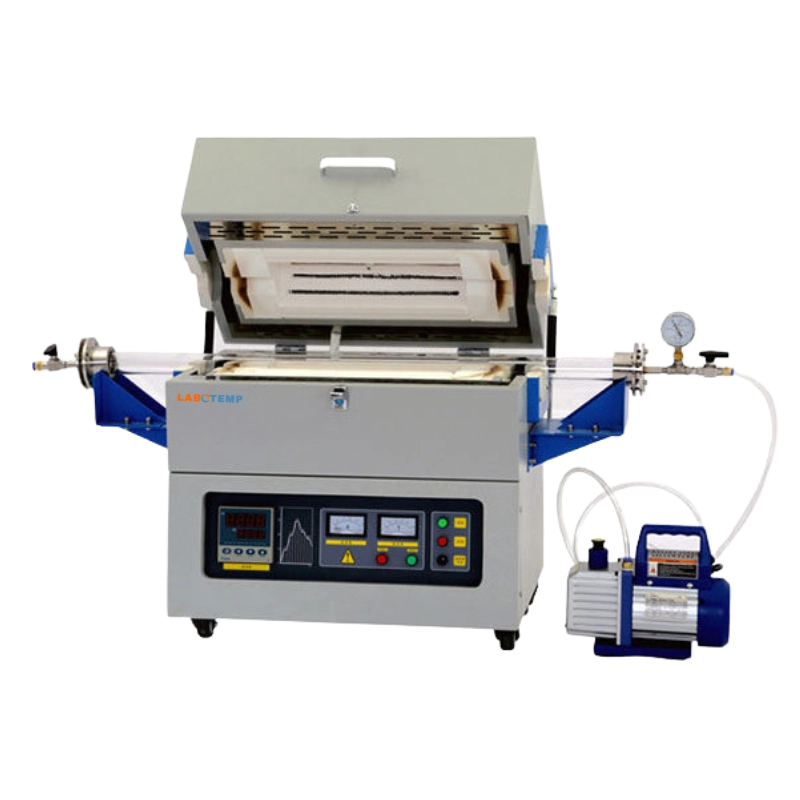

Labotemp Quartz Tube Furnace FMT-06 is a precision laboratory tube furnace engineered for uniform heat treatment up to 1200°C (working ≤1100°C). It features a ∮80 mm high-purity quartz tube, a 440 mm heating zone and 1000 mm total tube length. Resistance-wire heating and PID control with 30-segment programmable curves deliver ±1°C accuracy and ±5°C uniformity; an alumina ceramic-fiber chamber ensures thermal efficiency.

Built by an experienced furnace manufacturer and distributed via authorised furnace suppliers, this tubular furnace suits material synthesis, annealing, sintering, semiconductor processing, powder metallurgy and nanomaterial research. The horizontal tubular furnace design simplifies loading and supports controlled-atmosphere or vacuum configurations with optional accessories (touchscreen with USB, PC connection software/interface, and safety interlock with automatic power-off), making it an ideal lab furnace and electric tube furnace for laboratory and industrial use.

Why choose Labotemp Tube Furnace FMT-06?
✓ Precision Control: PID regulation with 30-segment programming
✓ Quartz Tube Design: High-purity tube for clean, oxidation-free processing.
✓ Uniform Heating: 440 mm single-zone chamber for consistent temperatures.

$4564

Datasheet

Maximum Temperature : 1200°C Maximum Temperature	1200°C
Standard Heating Zone Length (mm) : 440 Standard Heating Zone Length (mm)	440
Chamber Size (mm) : 80×440 Chamber Size (mm)	80×440
Standard Tube Diameter (mm) : ∮80 Standard Tube Diameter (mm)	∮80
Total Length of Furnace Tube (mm) : 1000 Total Length of Furnace Tube (mm)	1000
Working Temperature (℃) : ≤110 Working Temperature (℃)	≤110
Temperature Accuracy (℃) : ±1 Temperature Accuracy (℃)	±1
Furnace Tube Material : Quartz Tube Furnace Tube Material	Quartz Tube
Temperature Uniformity (℃) : ±5 Temperature Uniformity (℃)	±5
Heating Rate (℃/min) : 0 ~ 20℃/min Heating Rate (℃/min)	0 ~ 20℃/min
External Size : 740×420×668 mm External Size	740×420×668 mm
Heating Element : Resistance Wire Heating Element	Resistance Wire
Thermocouple Type : K Type Thermocouple Type	K Type
Chamber Material : Alumina Ceramic Fiber Chamber Material	Alumina Ceramic Fiber
Power Supply : AC 220V, 50Hz/60Hz Power Supply	AC 220V, 50Hz/60Hz
Net Weight : 80kg Net Weight	80kg
Gross Weight : 100kg Gross Weight	100kg

PID controller ➤ PID controller
1200°C maximum operating temperature ➤ 1200°C maximum operating temperature
PID automatic control via current limiting phase angle fired the resistor ➤ PID automatic control via current limiting phase angle fired the resistor
30 segments “time–temperature curve” can be set arbitrarily ➤ 30 segments “time–temperature curve” can be set arbitrarily
The tube furnace uses high-purity quartz or alumina tubes as furnace tubes ➤ The tube furnace uses high-purity quartz or alumina tubes as furnace tubes
The furnace tubes are designed to be installed horizontally ➤ The furnace tubes are designed to be installed horizontally
The temperature zone is designed to be single zone ➤ The temperature zone is designed to be single zone

Used for material synthesis, annealing, sintering, semiconductor processing, powder metallurgy, nanomaterial preparation, and thermal stability testing in research and industrial applications ➤ Used for material synthesis, annealing, sintering, semiconductor processing, powder metallurgy, nanomaterial preparation, and thermal stability testing in research and industrial applications

Touch screen (with USB interface) ➤ Touch screen (with USB interface)
Computer connection software, control equipment (RKC, 16-segment program + interface + software) ➤ Computer connection software, control equipment (RKC, 16-segment program + interface + software)
Safety interlock (power-off function when door is opened) ➤ Safety interlock (power-off function when door is opened)
