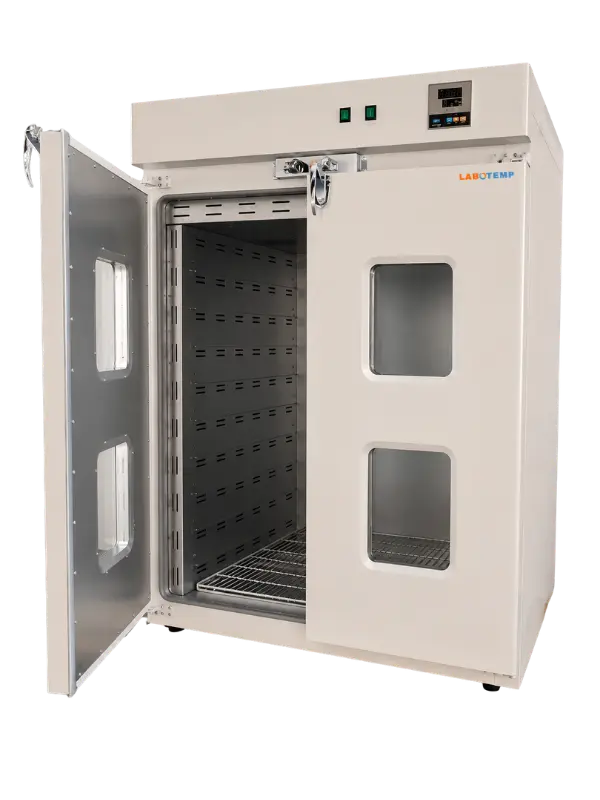

Labotemp Industrial Blast Drying Oven FOV-28 is a high-capacity blast drying oven engineered for precise heating, drying, baking, thermal aging, and heat treatment applications in laboratories, research institutes, pharmaceutical facilities, electronics manufacturing, and industrial production environments. Featuring a spacious 620 L chamber and an operating temperature range from ambient to 300°C, this industrial oven provides stable and uniform thermal conditions for processing large batches of samples, components, and materials. The optimized rear-circulation air duct, multi-fan forced convection system, and quartz glass-enclosed infrared heating technology ensure consistent temperature distribution throughout the chamber, improving drying efficiency and process reliability.
Built for long-term performance, the FOV-28 combines a reinforced SGCC/SUS chamber structure with high-density rock wool insulation for excellent heat retention and energy efficiency. The intelligent 5-inch color LCD controller offers PID temperature control with 0.1°C resolution and ±0.5°C control accuracy, while programmable timing, scheduled start, alarm functions, and optional IoT connectivity support advanced process management. Double-point door locking, tempered double-glazed viewing windows, and integrated safety alarms enhance operational safety and user convenience. Designed as a dependable lab drying oven and industrial heating solution, the FOV-28 delivers reliable performance for continuous laboratory and production use.
Why Choose Labotemp Industrial Blast Drying Oven FOV-28?
✓ Large 620 L Capacity: Accommodates high-volume drying, curing, and thermal processing applications.
✓ Uniform Heating Performance: Multi-fan forced convection and optimized air circulation ensure excellent temperature consistency.
✓ Advanced Smart Control: 5-inch LCD PID controller with programmable timing, alarms, and optional IoT remote monitoring.
|
Product Type : Industrial Blast Drying Oven Product Type |
Industrial Blast Drying Oven |
|
Chamber Capacity : 620 L Chamber Capacity |
620 L |
|
Internal Dimensions (W × D × H) : 700 × 600 × 1500 mm Internal Dimensions (W × D × H) |
700 × 600 × 1500 mm |
|
External Dimensions (W × D × H) : 820 × 760 × 1930 mm External Dimensions (W × D × H) |
820 × 760 × 1930 mm |
|
Chamber Material : SGCC / SUS Stainless Steel Chamber Material |
SGCC / SUS Stainless Steel |
|
Number of Heaters : 4 Number of Heaters |
4 |
|
Heating Power : 5600 W Heating Power |
5600 W |
|
Insulation Material : Rock Wool Insulation Material |
Rock Wool |
|
Shelves / Pallets : 5 Shelves / Pallets |
5 |
|
Air Circulation System : Built-in Air Duct with Multi-Fan Convection Air Circulation System |
Built-in Air Duct with Multi-Fan Convection |
|
Controller Type : 5-inch LCD Controller Controller Type |
5-inch LCD Controller |
|
Optional Controller : IoT Smart Controller Optional Controller |
IoT Smart Controller |
|
Temperature Range : Ambient to 300°C Temperature Range |
Ambient to 300°C |
|
Temperature Measurement Range : 0 to 299.9°C Temperature Measurement Range |
0 to 299.9°C |
|
Temperature Resolution : 0.1°C Temperature Resolution |
0.1°C |
|
Temperature Control Accuracy : ±0.5°C Temperature Control Accuracy |
±0.5°C |
|
Warm-Up Time (0–120°C) : ≤140 Minutes Warm-Up Time (0–120°C) |
≤140 Minutes |
|
Timer Range : Up to 999 Hours Timer Range |
Up to 999 Hours |
|
Scheduled Start Function : Yes (LCD & IoT Models) Scheduled Start Function |
Yes (LCD & IoT Models) |
|
Audible Alarm : Yes Audible Alarm |
Yes |
|
Periodic Power-On Function : Yes Periodic Power-On Function |
Yes |
|
Built-in Ventilation Hole : Yes Built-in Ventilation Hole |
Yes |
|
Mobile Phone Remote Control : Optional (IoT Version Only) Mobile Phone Remote Control |
Optional (IoT Version Only) |
|
Mobile Phone Remote Alarm : Optional (IoT Version Only) Mobile Phone Remote Alarm |
Optional (IoT Version Only) |
|
Real-Time Clock Display : Yes (LCD & IoT Models) Real-Time Clock Display |
Yes (LCD & IoT Models) |
|
Remote Delay Setting : 5 Seconds (IoT Version Only) Remote Delay Setting |
5 Seconds (IoT Version Only) |
|
Temperature Control Method : Intelligent PID Control Temperature Control Method |
Intelligent PID Control |
|
Display Type : 5-inch Color LCD Display Type |
5-inch Color LCD |
|
Power Supply : AC 220V / 50Hz Power Supply |
AC 220V / 50Hz |
|
Net Weight : 148 kg Net Weight |
148 kg |
|
Safety Features : Over-Temperature Alarm, Door Locking System, Double-Layer Glass Door Safety Features |
Over-Temperature Alarm, Door Locking System, Double-Layer Glass Door |
|
Optional Features : Mobile App Monitoring, Remote Control, IoT Connectivity, Cloud Monitoring Optional Features |
Mobile App Monitoring, Remote Control, IoT Connectivity, Cloud Monitoring |
