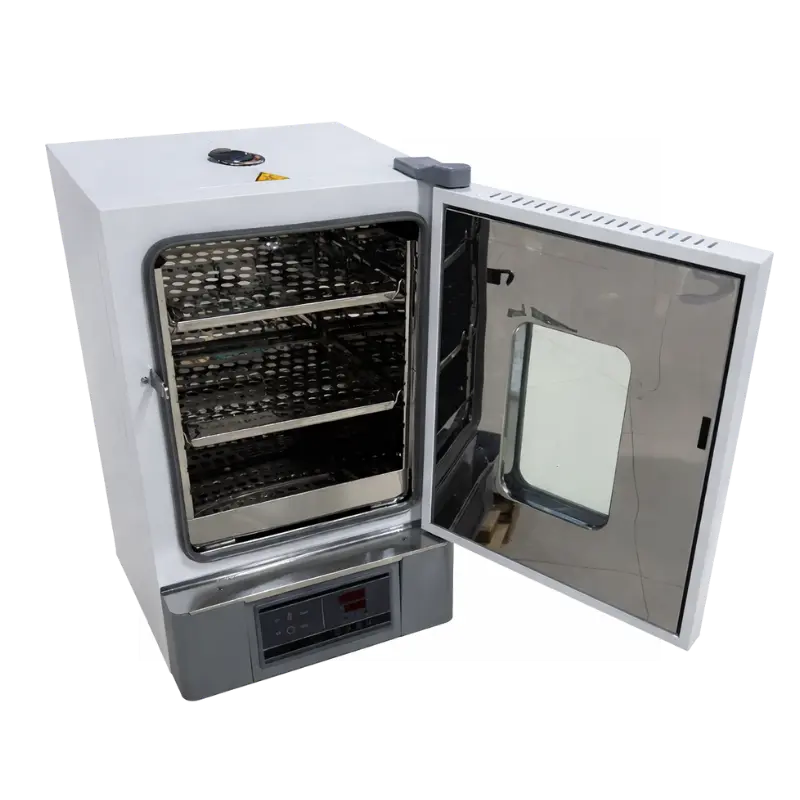

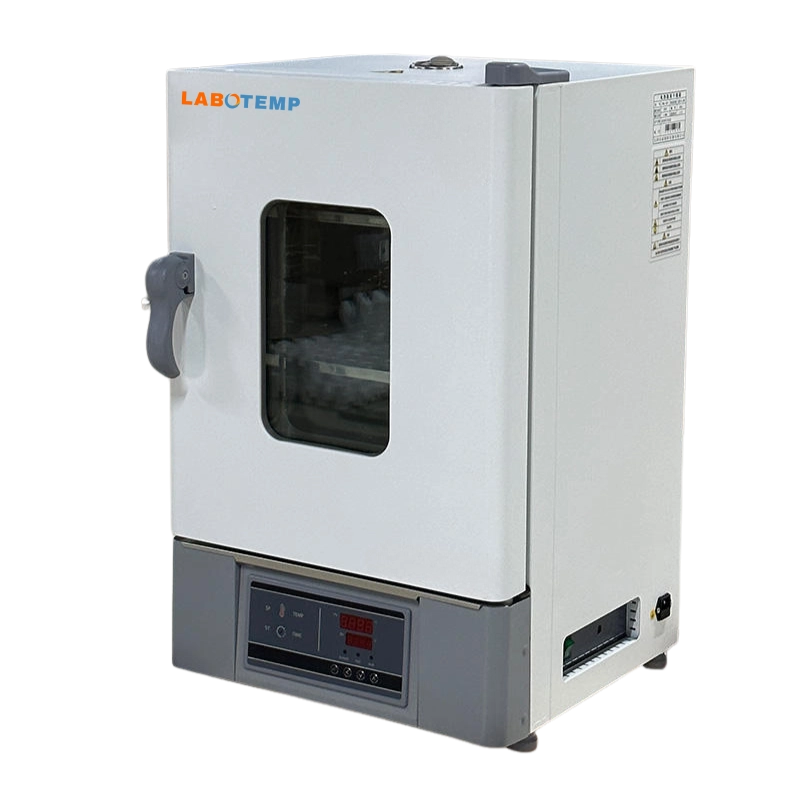

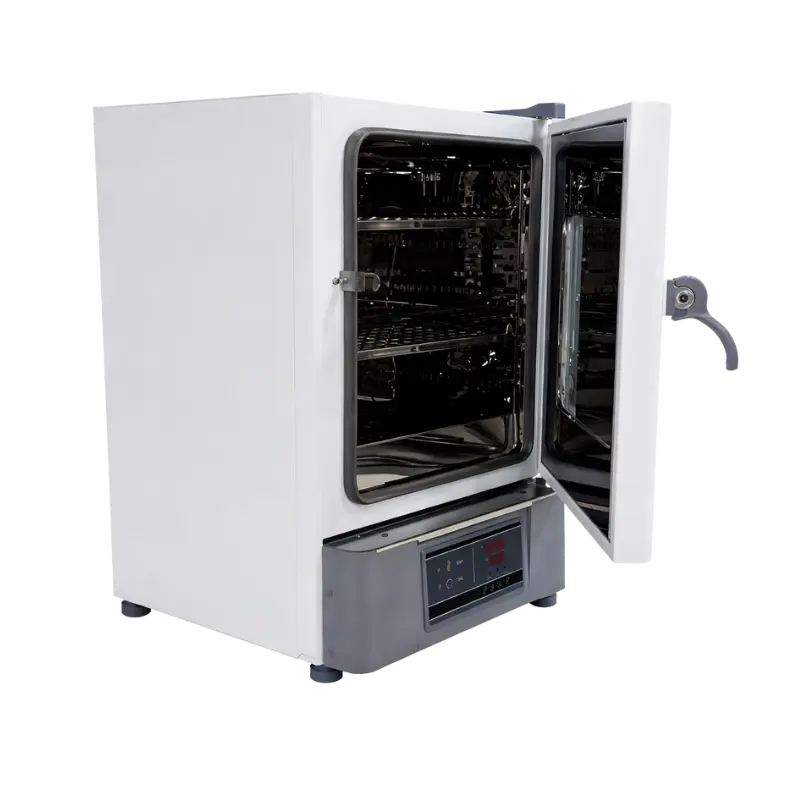

Labotemp Blast Drying Oven FOV-09 is an ISO and CE compliant laboratory drying oven designed for controlled heating, drying and thermal processing in research laboratories, industrial facilities and quality control environments. This blast drying oven supports applications such as oven drying, glassware drying, sample conditioning and material testing where stable temperature performance is required. With a 125 L chamber capacity and a temperature range of RT+10 to 300 °C, the unit provides reliable performance for laboratories requiring a dependable laboratory hot air oven or laboratory convection oven for routine analytical and industrial drying tasks.
Constructed with a mirror stainless steel interior and chemically resistant cold-rolled steel exterior, this laboratory oven ensures durability and long service life. The dual-channel forced convection system circulates heated air evenly throughout the chamber to improve drying efficiency and temperature stability. A dual PID temperature controller with digital, LCD or touchscreen interface options maintains accurate heating with 0.1 °C resolution and ±1 °C stability for repeatable laboratory processes.
Why choose Labotemp Blast Drying Oven FOV-09?
✓ Large Capacity Chamber: 125 L interior supports batch drying and sample processing.
✓ Uniform Heat Circulation: Dual-channel convection improves temperature stability.
✓ Advanced PID Control: Programmable controller enables precise heating and timed operation.
|
Maximum Temperature : 300°C Maximum Temperature |
300°C |
|
Chamber Volume : 125 L Chamber Volume |
125 L |
|
Power Rating : 2.3 kW Power Rating |
2.3 kW |
|
Temperature Distribution Accuracy : ±2.0% Temperature Distribution Accuracy |
±2.0% |
|
Timer Range : 0–9999 minutes Timer Range |
0–9999 minutes |
|
Program Control : Up to 50 programs × 50 steps Program Control |
Up to 50 programs × 50 steps |
|
Interior Material : Mirror stainless steel Interior Material |
Mirror stainless steel |
|
Exterior Material : Cold-rolled plate with chemical-resistant coating Exterior Material |
Cold-rolled plate with chemical-resistant coating |
|
Insulation Material : Silica fiber Insulation Material |
Silica fiber |
|
Heater Type : Stainless steel heating pipe / Nickel-cobalt alloy wire Heater Type |
Stainless steel heating pipe / Nickel-cobalt alloy wire |
|
Air Circulation : Dual-channel forced convection, rear air duct, swirl air supply Air Circulation |
Dual-channel forced convection, rear air duct, swirl air supply |
|
Air Vent : Ø28 mm × 2 (top) Air Vent |
Ø28 mm × 2 (top) |
|
Sensor Type : Pt100 Sensor Type |
Pt100 |
|
Safety Device : Anti-temperature rise device Safety Device |
Anti-temperature rise device |
|
Fan Type : Constant speed fan Fan Type |
Constant speed fan |
|
Internal Dimensions (mm) : 500×450×550 Internal Dimensions (mm) |
500×450×550 |
|
External Dimensions (mm) : 617×639×953 External Dimensions (mm) |
617×639×953 |
|
Package Dimensions (mm) : 742×718×1080 Package Dimensions (mm) |
742×718×1080 |
|
Temperature Resolution : 0.1°C Temperature Resolution |
0.1°C |
|
Temperature Fluctuation : ±1.0°C Temperature Fluctuation |
±1.0°C |
|
Power Supply : AC220V 50/60 Hz / 10.5A Power Supply |
AC220V 50/60 Hz / 10.5A |
|
Partition Load Capacity : 15 kg Partition Load Capacity |
15 kg |
|
Partition Layers / Standard Layers : 11/2 layers Partition Layers / Standard Layers |
11/2 layers |
|
Partition Spacing : 150 mm Partition Spacing |
150 mm |
|
Net Weight : 60kg Net Weight |
60kg |
|
Gross Weight : 66kg Gross Weight |
66kg |
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1°C
Temperature Control Range: RT+10°C ~ 300°C
Studio Size: 350 × 350 × 350 mm
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1°C
Temperature Control Range: RT+10°C ~ 300°C
Studio Size: 350 × 450 × 450 mm
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1°C
Temperature Control Range: RT+10°C ~ 300°C
Studio Size: 450 × 550 × 550 mm
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1°C
Temperature Control Range: RT+10°C ~ 300°C
Studio Size: 500 × 600 × 700 mm
Timer Range: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±2.0%
Timer Range: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±2.0%
Timer Range: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±2.0%
Timer Range: 0 – 9999 minutes
Temperature Resolution: 0.1 °C
Temperature Range: RT +10 °C to 300 °C
Temperature Fluctuation: ±1.0 °C
Timer Range: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±2.0%
Timer Range: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±2.0%
Timer Range: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±2.0%
Timer Range: 0–9999 Minutes
Temperature Sensor: Pt100
Temperature Resolution: 0.1°C
Temperature Range: RT +10°C to 300°C
Temperature Resolution: 0.1°C
Temperature Range: RT +10°C to 300°C
Temperature Functions: Self-Tuning, Deviation Correction
Temperature Fluctuation: ±1°C
Timer: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±3.0%
Timer: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±3.0%
Timer: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±3.0%
Timer: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±3.0%
Timer: 0–9999 minutes
Temperature Resolution: 0.1°C
Temperature Fluctuation: ±1.0°C
Temperature Distribution Accuracy: ±3.0%
Volume (L): 50
Uniformity: 2.50%
Timing: 0–9999 min
Temp Range: RT+20–500°C
Volume : 150L
Uniformity: 2.50%
Timing: 0–9999 min
Temp Range: RT+20–500°C
Volume : 208L
Uniformity: 2.50%
Timing: 0–9999 min
Temp Range: RT+20–600°C
Volume: 1000 L
Uniformity: ±3%
Timing: 0–9999 min
Temp Range: RT+10–250°C
Volume (L): 1300
Uniformity: ±3%
Timing: 0–9999 min
Temp Range: RT+10–300°C
Volume: 3070L
Uniformity: ±3%
Timing: 0–9999 min
Temp Range: RT+10–300°C
Voltage : 220V/110V 50/60Hz
Ventilation: Top moisture discharge hole
Temperature Resolution: 0.1°C
Temperature Range: RT +10°C to 300°C
Warm-Up Time (0–120°C): ≤140 Minutes
Timer Range: Up to 999 Hours
Temperature Resolution: 0.1°C
Temperature Range: Ambient to 300°C
Volume: 1870L
Timer: 0–9999 min (with Timing Wait Function)
Thermal Parameters:
Temperature Uniformity: ±3%
Vacuum Display: LCD display, accuracy class 0.5
Vacuum Degree Range: <133Pa
Timer: 0–9999 minutes (with timing wait function)
Temperature Sensor: PT100
Volume (L): 91
Timing: 0–9999 min
Temperature Control Mode: Two temperature section PID intelligent
Temp Range: RT+10–250°C
Volume: 52 L
Vacuum Meter: LCD display, accuracy class 0.5
Usable Vacuum Degree Range: <133 Pa
Timer: 0–9999 min (with timing wait function)
