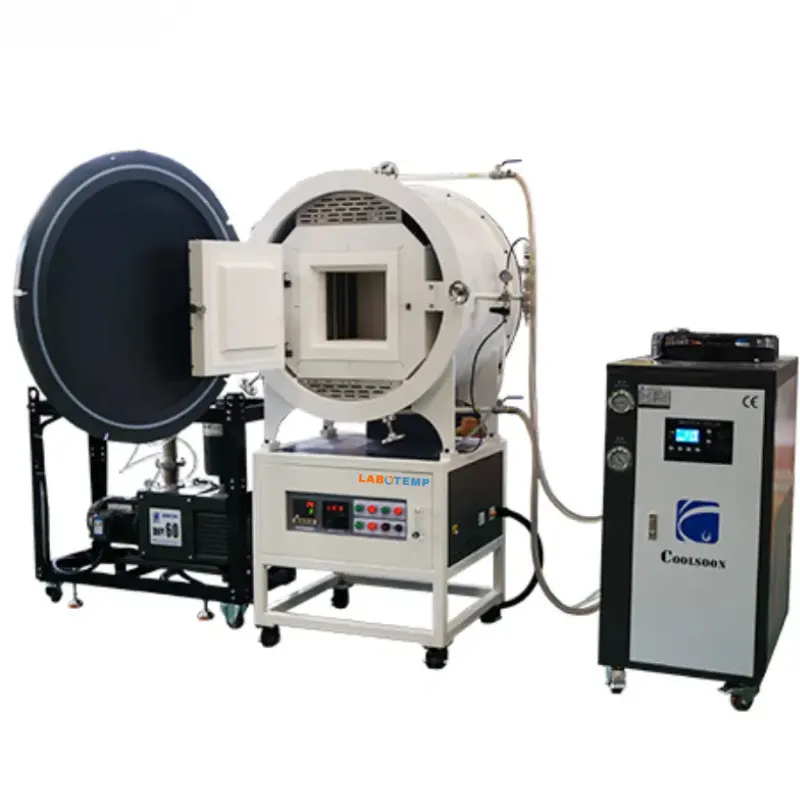

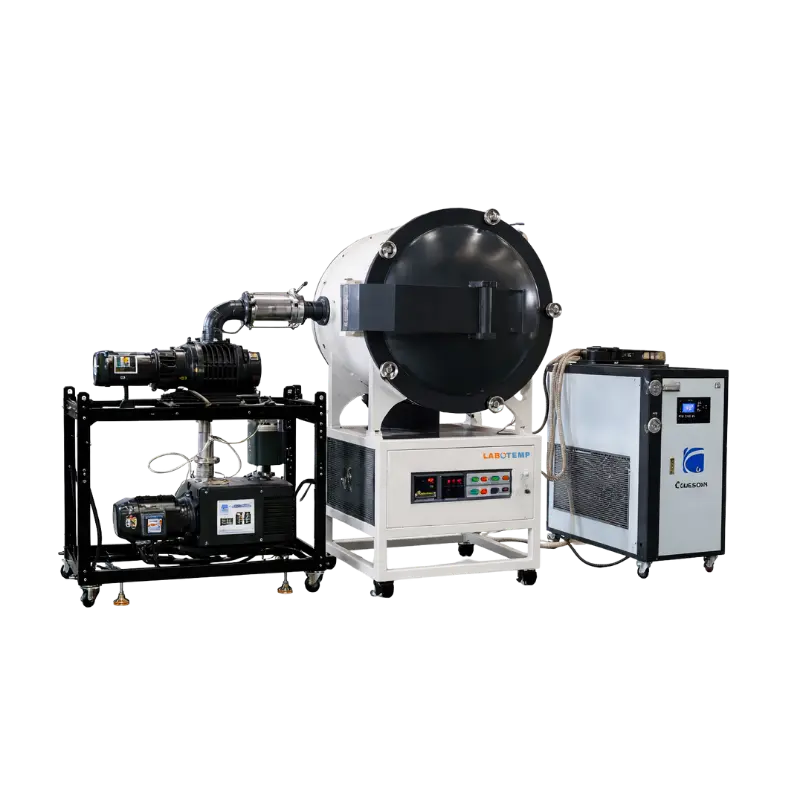

Labotemp Vacuum Furnace FVA-17 is a high-capacity laboratory furnace designed for precision vacuum heat treatment, sintering, and high-temperature material processing up to 1400°C. With a 45L chamber, this high temperature vacuum furnace delivers uniform heating and stable thermal performance for demanding research and industrial applications. It features durable SiC rod heating elements and a Shimaden (Japan) S-type controller for accurate temperature regulation and repeatable results.
Designed for vacuum and inert gas operation, the system includes an efficient pump setup and water-cooling protection to ensure safe and stable performance under extreme conditions. Its robust construction, 380V power supply, and programmable control support complex thermal cycles, making it ideal for vacuum annealing furnace, brazing, and advanced material research. Trusted by laboratories, universities, and industrial R&D centers, FVA-17 reflects Labotemp’s expertise as a reliable vacuum furnace manufacturer.
Why choose Labotemp Vacuum Furnace FVA-17?
✓ High-Temperature Capability: Stable operation up to 1400°C
✓ Precision Control: Shimaden controller with S-type thermocouple
✓ Deep Vacuum Support: Compatible with high-vacuum systems
✓ Reliable Performance: Ideal for heat treatment furnace use
|
Model No. : FVA-17 Model No. |
FVA-17 |
|
Volume (L) : 45 Volume (L) |
45 |
|
Max Temp (°C) : 1400 Max Temp (°C) |
1400 |
|
Working Temp (°C) : 1350 Working Temp (°C) |
1350 |
|
Power Supply : 380V, 3-Phase, 50/60 Hz Power Supply |
380V, 3-Phase, 50/60 Hz |
|
Power : 14kW Power |
14kW |
|
Chamber Size (mm) : 300×500×300 Chamber Size (mm) |
300×500×300 |
|
Heating Element : SiC Rod Heating Element |
SiC Rod |
|
Thermocouple Type : S-type Thermocouple Type |
S-type |
|
Temperature Controller : Shimaden (Japan), multi-segment programmable, S-type thermocouple Temperature Controller |
Shimaden (Japan), multi-segment programmable, S-type thermocouple |
|
Cooling Requirement : Yes (Water Cooling) Cooling Requirement |
Yes (Water Cooling) |
|
Cooling Requirement : Industrial chiller ≥3.3 kW, flow ≥1.5 m³/h Cooling Requirement |
Industrial chiller ≥3.3 kW, flow ≥1.5 m³/h |
|
Vacuum Level (High-Vacuum Configuration) : 4.5 × 10⁻⁴ Torr (with KT400 diffusion pump + rotary + roots pump) Vacuum Level (High-Vacuum Configuration) |
4.5 × 10⁻⁴ Torr (with KT400 diffusion pump + rotary + roots pump) |
|
Vacuum Gauge : Digital gauge (measures to 10⁻⁴ Torr) Vacuum Gauge |
Digital gauge (measures to 10⁻⁴ Torr) |
|
Atmosphere Modes : High Vacuum / Inert Gas (Ar / N₂) Atmosphere Modes |
High Vacuum / Inert Gas (Ar / N₂) |
|
Control Interface : Manual valve control (automatic optional) Control Interface |
Manual valve control (automatic optional) |
|
RS485 / USB Communication : Optional (for PC software & data logging) RS485 / USB Communication |
Optional (for PC software & data logging) |
