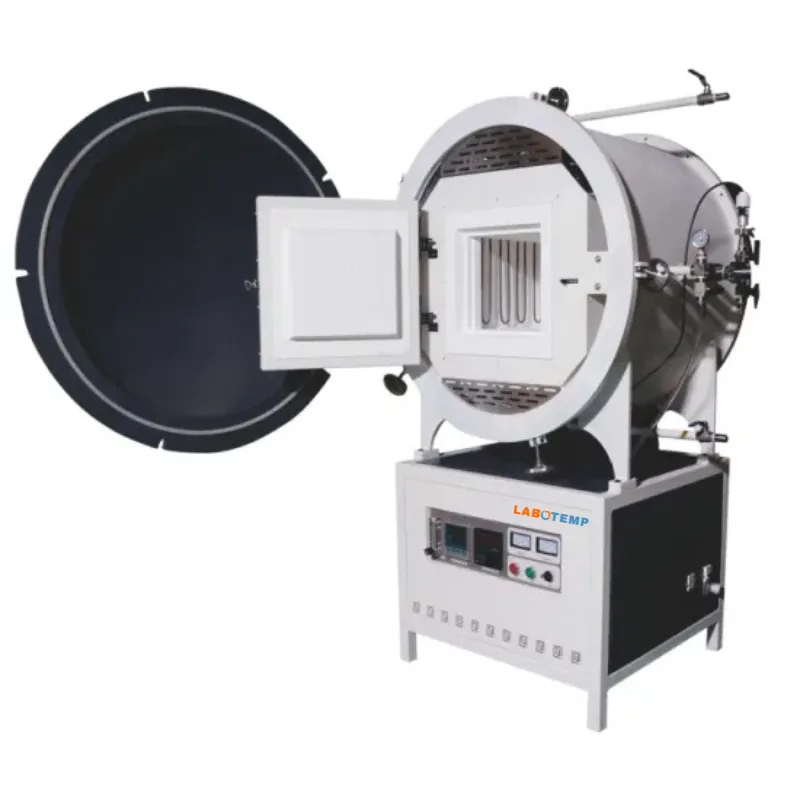

Vacuum Furnace FVA-11

Name: Vacuum Furnace FVA-11
Brand: Labotemp
SKU: FVA-11
Price: 12449.00 USD
Availability: InStock
Rating: 4.8 (971 reviews)

Labotemp Vacuum Furnace FVA-11 is an ultra-high-temperature laboratory vacuum furnace engineered for advanced thermal processing and precision material research. Featuring a compact 3 L chamber (150 × 150 × 150 mm) and a maximum temperature of 1700°C with a 1600°C working range, it supports vacuum heat treatment, vacuum annealing, vacuum brazing, and high-temperature sintering of advanced ceramics, metal alloys, and specialty composite materials.

The furnace is equipped with high-performance MoSi₂ rod heating elements, delivering excellent thermal efficiency, uniform heat distribution, and reliable operation under extreme temperature cycles. Designed by experienced vacuum furnace manufacturers, FVA-11 is widely used in aerospace, semiconductor processing, material science laboratories, and advanced engineering research requiring controlled atmosphere or high vacuum environments.

Why Choose Labotemp Vacuum Furnace FVA-11?

✓ Ultra-High Temperature Capability: Reliable operation up to 1700°C.
✓ Precision Control: B-type thermocouple with advanced programmable controllers.
✓ Compact & Efficient: Optimized chamber for high-value research samples.
✓ Industrial-Grade Safety: Rigid insulation and water cooling for extreme conditions.

$12449

Datasheet

Model No. : FVA-11 Model No.	FVA-11
Volume (L) : 3 Volume (L)	3
Maximum Temperature (°C) : 1700 Maximum Temperature (°C)	1700
Working Temperature (°C) : 1600 Working Temperature (°C)	1600
Voltage : 220V, 50/60 Hz Voltage	220V, 50/60 Hz
Power (kW) : 4 Power (kW)	4
Chamber Size (mm) : 150×150×150 Chamber Size (mm)	150×150×150
Heating Element : MoSi₂ Rod Heating Element	MoSi₂ Rod
Thermocouple Type : B Type Platinum-Rhodium Thermocouple Type	B Type Platinum-Rhodium
Temperature Controller : Intelligent PID Controller Temperature Controller	Intelligent PID Controller
Cooling Requirement : Natural Cooling (Optional Water Cooling) Cooling Requirement	Natural Cooling (Optional Water Cooling)
Heating Rate : 1–10 °C/min (Adjustable) Heating Rate	1–10 °C/min (Adjustable)
Temperature Accuracy : ±1 °C Temperature Accuracy	±1 °C
Furnace Structure : Integrated furnace & controller design Furnace Structure	Integrated furnace & controller design
Vacuum Range : 500 Pa to 0.06 Pa (with suitable pump) Vacuum Range	500 Pa to 0.06 Pa (with suitable pump)

Rigid Insulation ➤ Rigid Insulation
Ultra-high temperature vacuum atmosphere furnace designed for operation up to 1700°C, suitable for advanced laboratory and R&D applications. ➤ Ultra-high temperature vacuum atmosphere furnace designed for operation up to 1700°C, suitable for advanced laboratory and R&D applications.
Equipped with high-quality MoSi₂ rod heating elements mounted on both sides, ensuring uniform temperature distribution and long service life under extreme conditions. ➤ Equipped with high-quality MoSi₂ rod heating elements mounted on both sides, ensuring uniform temperature distribution and long service life under extreme conditions.
Vacuum and inert gas compatible, supporting Nitrogen and other protective gases for oxidation-sensitive processes. ➤ Vacuum and inert gas compatible, supporting Nitrogen and other protective gases for oxidation-sensitive processes.
High-purity polycrystalline alumina ceramic fiber insulation, offering excellent thermal efficiency, low heat loss, and low energy consumption. ➤ High-purity polycrystalline alumina ceramic fiber insulation, offering excellent thermal efficiency, low heat loss, and low energy consumption.
Flange-type furnace door with compression sealing, ensuring reliable vacuum tightness and controlled atmosphere operation. ➤ Flange-type furnace door with compression sealing, ensuring reliable vacuum tightness and controlled atmosphere operation.
Intelligent PID programmable temperature controller with up to 30 program segments for ramp/soak/cooling cycles. ➤ Intelligent PID programmable temperature controller with up to 30 program segments for ramp/soak/cooling cycles.
Integrated over-temperature protection, thermocouple break protection, and alarm system for safe unattended operation. ➤ Integrated over-temperature protection, thermocouple break protection, and alarm system for safe unattended operation.

Ideal for sintering advanced ceramics, high-temperature materials, metal alloys, crystal growth, and special composite processing ➤ Ideal for sintering advanced ceramics, high-temperature materials, metal alloys, crystal growth, and special composite processing
Widely used in aerospace, semiconductor manufacturing, material science research, and advanced engineering laboratories ➤ Widely used in aerospace, semiconductor manufacturing, material science research, and advanced engineering laboratories
Suitable for research requiring controlled atmosphere or vacuum environments, including prototype development and micro-sample heat treatment ➤ Suitable for research requiring controlled atmosphere or vacuum environments, including prototype development and micro-sample heat treatment

Rotary vacuum pump (≤ 500 Pa) ➤ Rotary vacuum pump (≤ 500 Pa)
Digital vacuum gauge (1.0×10⁵ – 1.0×10⁻¹ Pa) ➤ Digital vacuum gauge (1.0×10⁵ – 1.0×10⁻¹ Pa)
Inert gas float flow meter (1–10 L/min) ➤ Inert gas float flow meter (1–10 L/min)
Gas pipeline and control unit ➤ Gas pipeline and control unit
Water cooling system / industrial chiller ➤ Water cooling system / industrial chiller
Spare MoSi₂ heating elements ➤ Spare MoSi₂ heating elements
