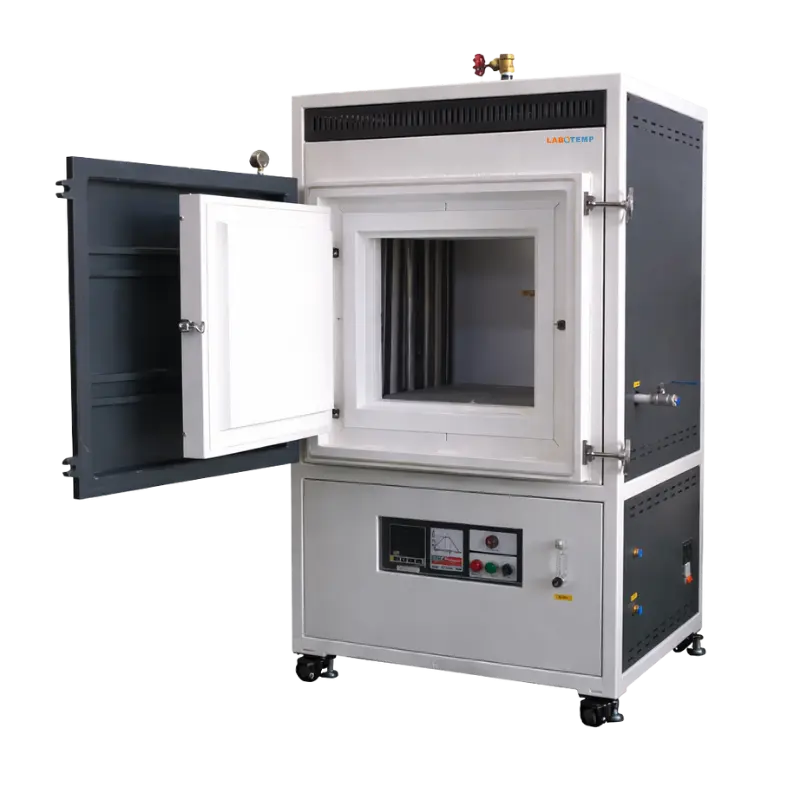

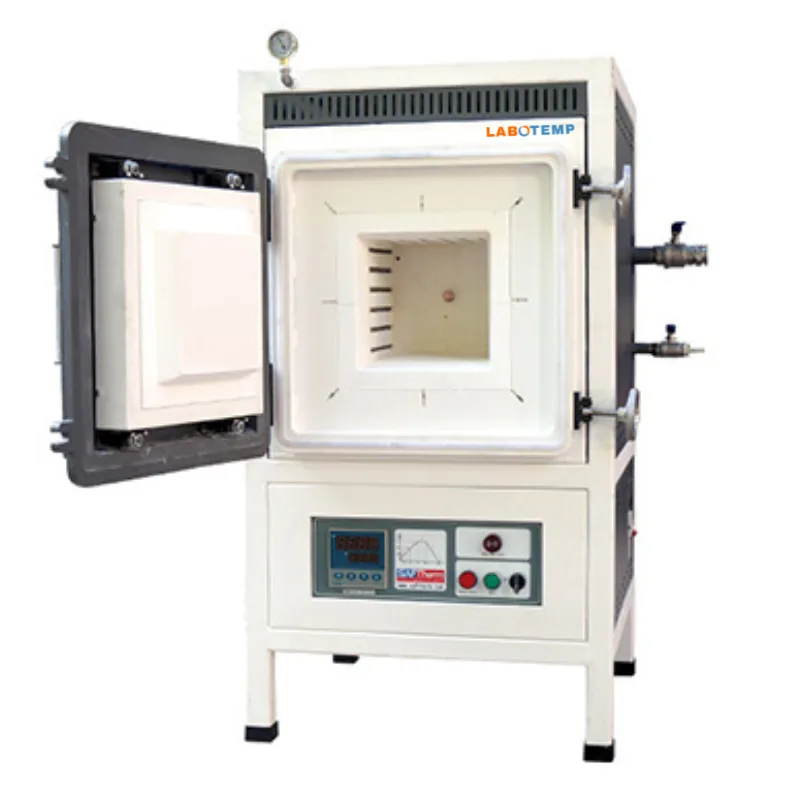

Labotemp Vacuum Furnace FVA-07 is a high-efficiency laboratory vacuum furnace for stable high-temperature processing in research and development. With an 8 L chamber (200 × 200 × 120 mm) and a 1400°C maximum, it supports vacuum heat treatment, vacuum annealing, sintering and controlled-atmosphere for ceramics, metals and composites.
Equipped with SiC rod heating elements, it delivers heating, high efficiency and long service life under thermal cycling. Pre-vacuum capability enables reduced-oxygen and inert-gas treatments to minimize oxidation. A 5 kW output ensures fast heat-up and uniform temperature. The box-type design supports reliable laboratory operation. Developed by experienced vacuum furnace manufacturers, Labotemp provides dependable solutions for universities and R&D labs.
Why Choose Labotemp Vacuum Furnace FVA-07?
✓ High-Temperature Capability: Stable operation up to 1400°C.
✓ Efficient Heating: SiC rod elements for fast, uniform thermal performance.
✓ Pre-Vacuum Processing: Supports inert atmosphere and low-oxygen heat treatment.
✓ Reliable & Supported: High-efficiency furnace design with professional technical support.
|
Model NO. : FVA-07 Model NO. |
FVA-07 |
|
Volume (L) : 8 Volume (L) |
8 |
|
Max Temp (°C) : 1400 Max Temp (°C) |
1400 |
|
Working Temp (°C) : 1300 Working Temp (°C) |
1300 |
|
Voltage : 220V Voltage |
220V |
|
Power (kW) : 5 Power (kW) |
5 |
|
Chamber Size (mm) : 200×200×120 Chamber Size (mm) |
200×200×120 |
|
Heating Element : SiC Rod Heating Element |
SiC Rod |
|
Vacuum / Pump System : No (Pre-vac Only) Vacuum / Pump System |
No (Pre-vac Only) |
|
Cooling Requirement : No Cooling Requirement |
No |
Working Temp (°C): 1350
Volume (L): 3
Voltage: 220V
Vacuum / Pump System: By Pump System
Working Temp (°C): 1300
Volume (L): 8
Voltage: 220V
Vacuum / Pump System: No (Pre-vac Only)
Working Temp (°C): 1350
Volume (L): 12
Voltage: 220V
Vacuum / Pump System: By Pump System
Working Temp (°C): 1300
Volume (L): 18
Voltage: 220V 50Hz
110V 60Hz
Vacuum / Pump System: Rotary Pump
Working Temp (°C): 1350
Volume (L): 36
Voltage: 380V
Vacuum / Pump System: By Pump System
Working Temp (°C) : 1350
Volume (L) : 45
Vacuum Level (High-Vacuum Configuration): 4.5 × 10⁻⁴ Torr (with KT400 diffusion pump + rotary + roots pump)
Vacuum Gauge: Digital gauge (measures to 10⁻⁴ Torr)
Working Temperature (°C): 1100
Volume (L): 3
Voltage: 220V 50Hz
Vacuum / Pump System: By Pump System
Working Temp (°C): 1100
Volume (L): 8
Voltage: 220V 50Hz
Vacuum / Pump System: No (Pre-vac Only)
Working Temp (°C): 1100
Volume (L): 12
Voltage: 220V
Vacuum / Pump System: By Pump System
Working Temp : 1100°C
Volume : 18L
Voltage: 220V 50Hz
Vacuum / Pump System: No (Pre-vac Only)
Working Temp (°C): 1100
Volume (L): 30
Voltage: 380V / 50Hz
Vacuum / Pump System: By Pump System
Working Temperature (°C): 1600
Volume (L): 3
Voltage: 220V, 50/60 Hz
Vacuum Range: 500 Pa to 0.06 Pa (with suitable pump)
Working Temp (°C): 1600
Volume (L): 8
Voltage: 220V
Vacuum / Pump System: No (Pre-vac Only)
Working Temp (°C): 1600
Volume (L): 12
Voltage: 220V
Thermocouple Type: B Type
Working Temp : 1600°C
Volume : 20L
Voltage: 380V / 50Hz
Vacuum / Pump System: No (Pre-vac Only)
Working Temp : 1600°C
Volume : 36L
Voltage: 380V / 50Hz
Vacuum / Pump System: No (Pre-vac Only)
Working Temp : 1600°C
Volume : 45L
Voltage: 380V / 50Hz
Thermocouple Type: B Type
Working Temperature: 1600°C
Work Chamber Size (W×D×H): 300 × 400 × 300 mm
Transformer: High-quality integrated transformer
Thermocouple: B Type
