Vacuum Furnace FVA-18

Name: Vacuum Furnace FVA-18
Brand: Labotemp
SKU: FVA-18
Price: 21765.00 USD
Availability: InStock
Rating: 5 (635 reviews)

Labotemp Vacuum Furnace FVA-18 is an ISO & CE-certified high temperature furnace designed for precision high-temperature industrial applications up to 1700°C. With a larger capacity this is FVA-18 engineered to deliver enhanced productivity while maintaining excellent thermal stability, uniform temperature distribution, and energy efficiency. It features advanced polycrystalline high-purity alumina insulation combined with a cold-rolled steel outer structure, ensuring low heat loss, structural durability, and long service life.

As a high-efficiency furnace for ceramic sintering, crystal growth, thermal analysis, and large-scale heat treatment, FVA-18 is equipped with an intelligent PID controller with programmable multi-segment control, real-time temperature monitoring, and high precision accuracy. Integrated with high-quality MoSi₂ heating elements and a B-type thermocouple, it ensures rapid heating and consistent performance.

Why choose Vacuum Furnace FVA-18?

• Certified Quality Assurance: ISO & CE certified design ensuring compliance with international safety and performance standards.
• Precision Temperature Control: Advanced PID system with programmable segments ensures accurate and uniform heating.
• Reliable & Safe Design: Robust construction with energy-efficient insulation and built-in safety protections for long-term use.

$21765

Datasheet

Capacity : 36L Capacity	36L

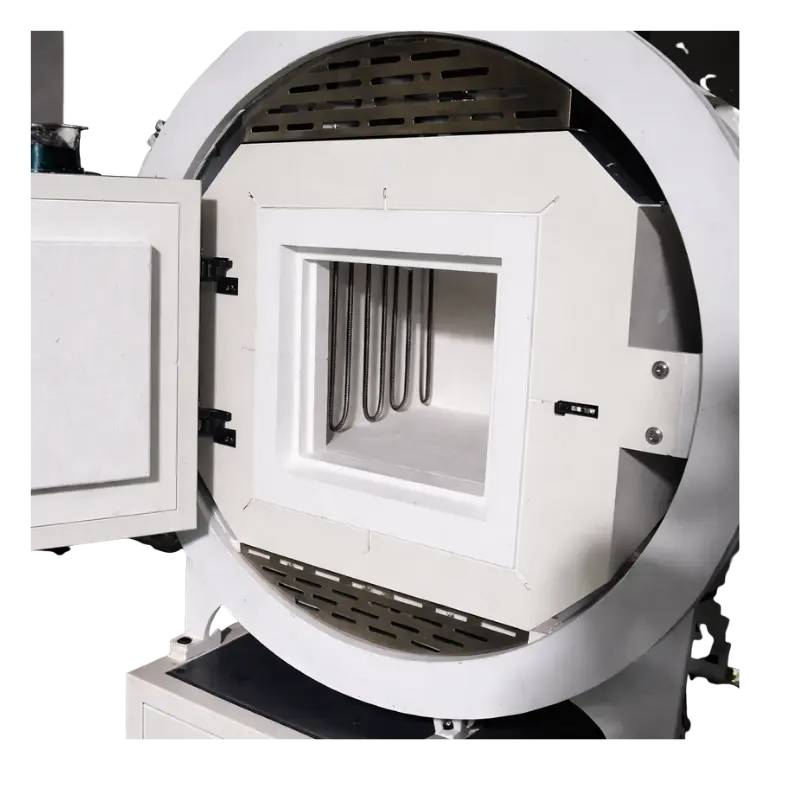

Work Chamber Size (W×D×H) : 300 × 400 × 300 mm Work Chamber Size (W×D×H)	300 × 400 × 300 mm
Working Temperature : 1600°C Working Temperature	1600°C
Max Temperature Design : 1700°C Max Temperature Design	1700°C
Temperature Precision : ±1°C Temperature Precision	±1°C
Thermocouple : B Type Thermocouple	B Type
Controller : Digital PID Temperature Controller Controller	Digital PID Temperature Controller
Power Supply : 380V / 50Hz, 13KW Power Supply	380V / 50Hz, 13KW

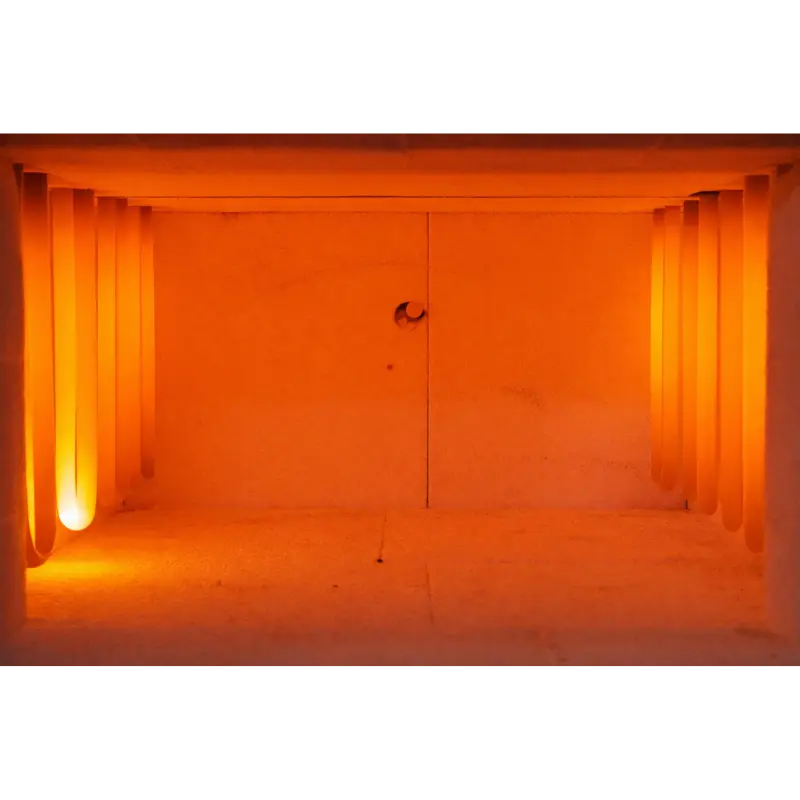

Heating Element : High-quality MoSi₂ rod heating elements (8 units, double-sided distribution) Heating Element	High-quality MoSi₂ rod heating elements (8 units, double-sided distribution)
Heating Characteristics : Fast heating, uniform temperature distribution, long service life Heating Characteristics	Fast heating, uniform temperature distribution, long service life
Chamber Material : High-purity polycrystalline alumina ceramic fiber Chamber Material	High-purity polycrystalline alumina ceramic fiber
Insulation : Vacuum-formed insulation with high thermal efficiency Insulation	Vacuum-formed insulation with high thermal efficiency
Cooling System : Double shell structure with water cooling system Cooling System	Double shell structure with water cooling system
Transformer : High-quality integrated transformer Transformer	High-quality integrated transformer
Package Size : 1510x2060x1980mm Package Size	1510x2060x1980mm
Net Weight : 950kg Net Weight	950kg
Gross Weight : 1200kg Gross Weight	1200kg

High Temp Precision ➤ High Temp Precision
High Temperature Capability: Operates up to 1700°C with stable performance and uniform heat distribution High Temperature Capability
Operates up to 1700°C with stable performance and uniform heat distribution
Precision Control System: Advanced digital PID controller ensures ±1°C accuracy and reliable process control Precision Control System
Advanced digital PID controller ensures ±1°C accuracy and reliable process control
Efficient Heating Elements: Premium MoSi₂ rod elements provide rapid heating and long operational life Efficient Heating Elements
Premium MoSi₂ rod elements provide rapid heating and long operational life
Superior Insulation: High-purity alumina ceramic fiber minimizes heat loss and improves energy efficiency Superior Insulation
High-purity alumina ceramic fiber minimizes heat loss and improves energy efficiency
Vacuum Atmosphere Operation: Suitable for controlled environments, reducing oxidation and contamination Vacuum Atmosphere Operation
Suitable for controlled environments, reducing oxidation and contamination
Robust Construction: Double-shell structure with water cooling enhances durability and safety Robust Construction
Double-shell structure with water cooling enhances durability and safety
Uniform Temperature Distribution: Optimized heating layout ensures consistent results across the chamber Uniform Temperature Distribution
Optimized heating layout ensures consistent results across the chamber
Fast Heating & Cooling: Designed for quick ramp-up and reduced cooling time, improving productivity Fast Heating & Cooling
Designed for quick ramp-up and reduced cooling time, improving productivity
User-Friendly Operation: Simple interface with stable performance for continuous industrial use  User-Friendly Operation
Simple interface with stable performance for continuous industrial use

Material Testing: Evaluation of metals, ceramics, and advanced materials under high temperatures Material Testing
Evaluation of metals, ceramics, and advanced materials under high temperatures
Sintering Processes: Ideal for ceramic sintering and powder metallurgy applications Sintering Processes
Ideal for ceramic sintering and powder metallurgy applications
Heat Treatment: Annealing, hardening, tempering, and thermal processing under vacuum conditions Heat Treatment
Annealing, hardening, tempering, and thermal processing under vacuum conditions
Thermal Analysis: Used in laboratories for controlled heating experiments and research studies Thermal Analysis
Used in laboratories for controlled heating experiments and research studies
Crystal Growth: Suitable for controlled environment crystal formation processes Crystal Growth
Suitable for controlled environment crystal formation processes
Melting Applications: High-temperature melting of specialized materials Melting Applications
High-temperature melting of specialized materials
Research & Development: Widely used in research institutes, universities, and industrial R&D labs Research & Development
Widely used in research institutes, universities, and industrial R&D labs
Quality Control Labs: Ensures repeatable and accurate testing for industrial QC processes Quality Control Labs
Ensures repeatable and accurate testing for industrial QC processes

Gas Flow Meter: For precise control and monitoring of gas flow inside the chamber Gas Flow Meter
For precise control and monitoring of gas flow inside the chamber
Crucible Tong: High-temperature resistant tong for safe handling of samples Crucible Tong
High-temperature resistant tong for safe handling of samples
Thermal Resistance Gloves: Heat-resistant gloves for operator safety during high-temperature operations  Thermal Resistance Gloves
Heat-resistant gloves for operator safety during high-temperature operations

Digital Vacuum Gauge: Digital display for accurate vacuum degree monitoring Digital Vacuum Gauge
Digital display for accurate vacuum degree monitoring
MoSi₂ Heating Elements (Spare Set): High-grade extra MoSi₂ rod heaters for backup and extended operational continuity MoSi₂ Heating Elements (Spare Set)
High-grade extra MoSi₂ rod heaters for backup and extended operational continuity
Water Chiller: Cooling system for furnace and vacuum pump to ensure stable performance Water Chiller
Cooling system for furnace and vacuum pump to ensure stable performance
Diffusion Pump Unit: Achieves high vacuum up to 6×10⁻² Pa with 300 L/s pumping speed (380V, 3-phase, 9KW) Diffusion Pump Unit
Achieves high vacuum up to 6×10⁻² Pa with 300 L/s pumping speed (380V, 3-phase, 9KW)
