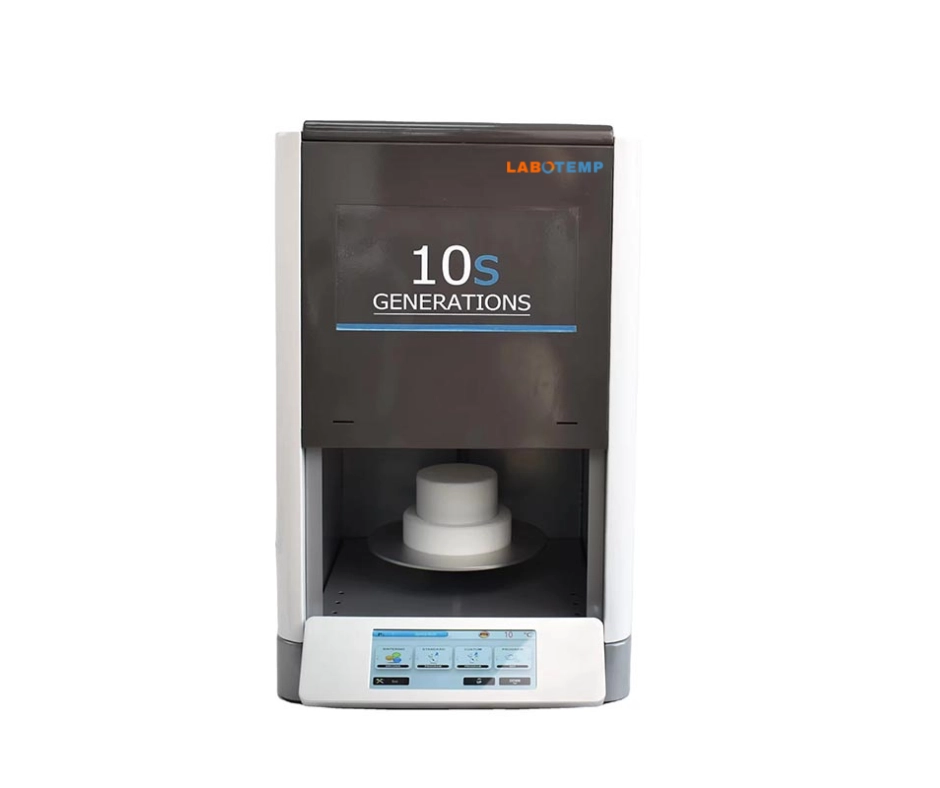

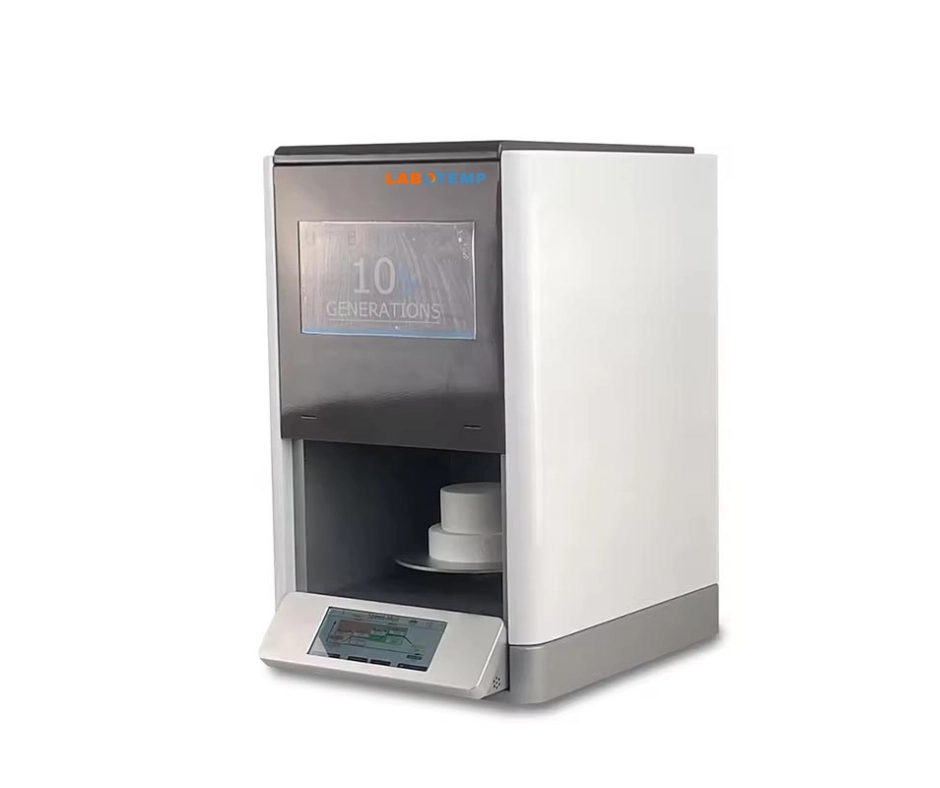

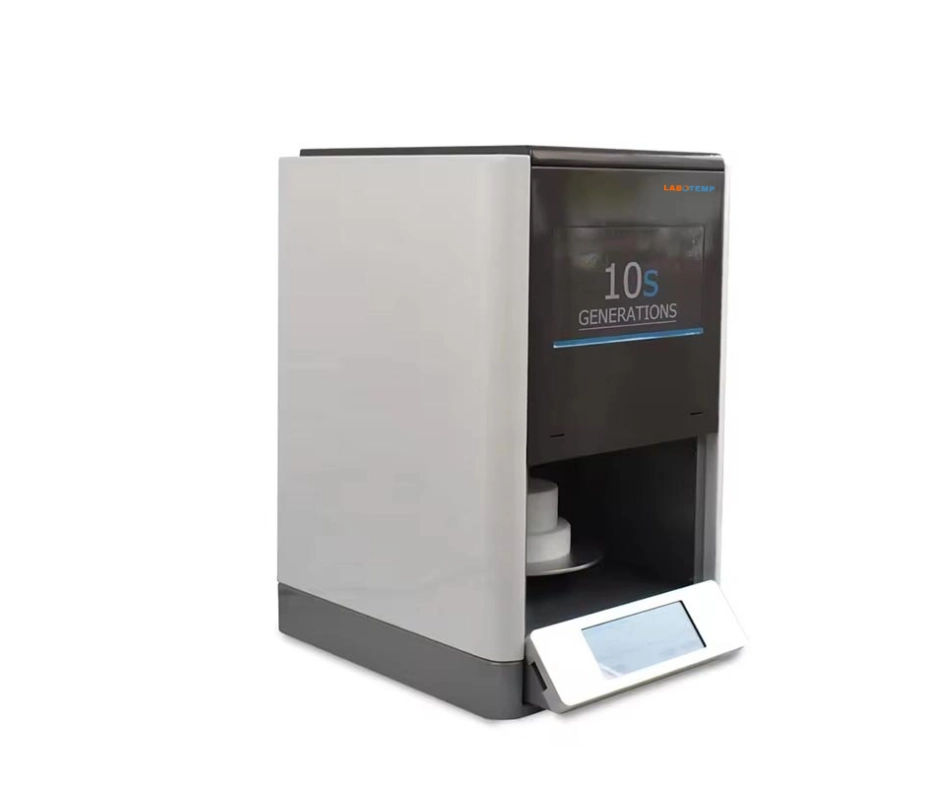

Labotemp Sintering Furnace FDS-08 is a high-efficiency laboratory furnace designed for fast and precise sintering of zirconia and ceramic materials. With a maximum temperature of 1550°C, rapid heating rates up to 200°C per minute, and energy-efficient 2500W power consumption, this high temperature furnace supports reliable sintering cycles for dental labs, ceramic manufacturing, and material research. Uniform temperature distribution ensures accurate and repeatable results for zirconia crowns, bridges, and dental ceramic components.
Designed as a dental sintering furnace and ceramic furnace, FDS-08 also functions as a compact lab furnace and dental furnace for professional environments. Optimized thermal insulation reduces heat loss and improves efficiency, while compatibility with zirconia and ceramic materials positions FDS-08 as a reliable zirconia sintering furnace, porcelain furnace, and fast heating dental furnace.
Labotemp, a trusted furnace manufacturer and global supplier, delivers dependable performance and long service life.
Why Choose Labotemp Sintering Furnace FDS-08?
✓ Fast Heating: up to 1550°C at 200°C/min
✓ Uniform Temperature: Even annular heating for consistent results.
✓ Energy-Efficient Operation: Optimized power use for reliable control.
✓ Compact & Durable Design: Industrial-grade and long-lasting.
|
Maximum Temperature : 1550°C Maximum Temperature |
1550°C |
|
Heating Rate : Up to 200 °C/min Heating Rate |
Up to 200 °C/min |
|
Power Consumption : 2500 W (Max) Power Consumption |
2500 W (Max) |
|
Voltage : 220V, 50Hz Voltage |
220V, 50Hz |
|
Net Weight : 58kg Net Weight |
58kg |
|
Gross Weight : 59kg Gross Weight |
59kg |
|
Package Size : 810 × 840 × 1280 mm Package Size |
810 × 840 × 1280 mm |
Voltage: 220V, 50Hz
Temperature Uniformity: ≤ 15°C
Temperature Rating: 1000°C
Power Loss: ≤ 1.2 kWh
Voltage : 220V, 50Hz
Temperature Control: PID temperature controller
Temperature Accuracy: ±1 °C
Special Notes: Fast heating; longer life (heating wire)
Voltage: 220V, 50Hz
Rated Power: 3000W
Rated Current : ≤ 15A
Package Size: 690 × 460 × 530 mm
Power supply: 220V, 110V 50/60Hz
Power: 1500W Max (including vacuum)
Package Dimension: 89 × 73 × 96 cm
Net Weight: 32kg
Weight: 25 kg (Without vacuum pump)
Vacuum Value: 0～99 KPa
Vacuum Time: 0～3600 Seconds
Vacuum Starting Temperature: 400～960℃
Voltage: 220V, 50Hz
Touch Screen: Standard industrial-grade anti-knock touch screen
Temperature Control System: 14-bit AD conversion for precise temperature accuracy
Status Monitoring: Automatic detection of all parameters and furnace status
Tray Opening Temperature Range: 600–1200 °C
Temperature Monitoring: Real-time
Temperature Calibration: Available
Stages per Program: 6
Voltage: 220V, 50Hz
Power Consumption: 2500 W (Max)
Package Size: 810 × 840 × 1280 mm
Net Weight : 58kg
Voltage: 220V, 50Hz
Vacuum Control: Can be set by time or temperature
Temperature Calibration: Temperature calibration by keyboard, time and room temperature display in real time
Sealing Performance: Excellent airtight vacuum sealing
Voltage: 220V, 50Hz
Thermocouple Lifespan: Increased by over 50% compared to standard models
Temperature Control: 14-bit AD conversion for high-precision temperature regulation
Package Size: 940 × 760 × 840 mm
Voltage: 220V, 50Hz
Vacuum Control: Adjustable by time or temperature
Temperature Calibration: Keyboard calibration with real-time display of time and room temperature
Sealing Performance: Excellent airtight vacuum sealing for stable firing results
Velocity of Temperature Increasing: 200°C/min max
Power Supply: 220V 50Hz
Power: 1500W Max
Packing Size: 890 × 730 × 960 mm
Voltage: 220V, 50Hz
Velocity of Temperature Increasing: 100°C/min (Max)
Power: 850 W (Max)
Package Size: 385 × 250 × 180 mm
