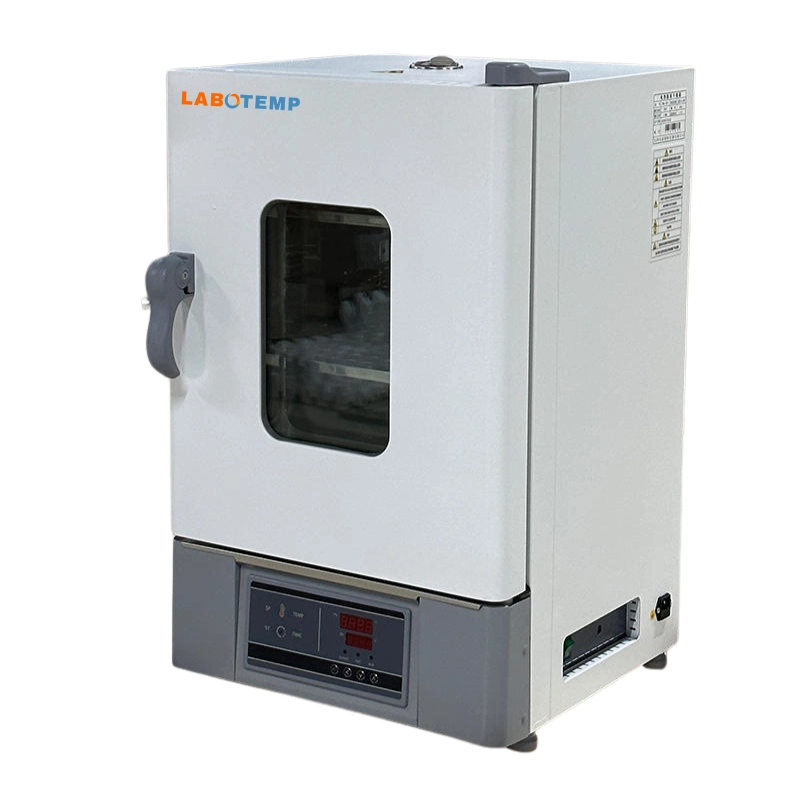

Labotemp Blast Drying Oven FOV-10 is an industrial drying oven designed for controlled heating, drying and thermal treatment in research facilities, manufacturing plants and quality control environments. Suitable for applications such as oven drying, baking, wax melting, glassware drying and material conditioning, this blast drying oven ensures stable temperature performance and uniform airflow. With a 230 L chamber capacity and a temperature range of RT+10 to 300 °C, the unit supports routine testing and industrial drying operations requiring a reliable lab hot air oven or high temperature lab oven.

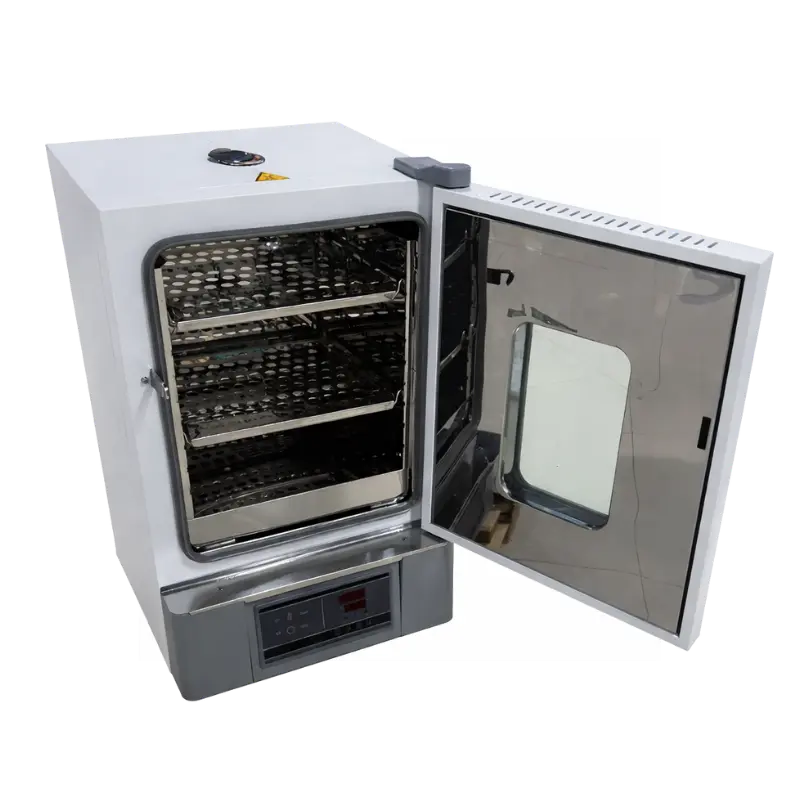

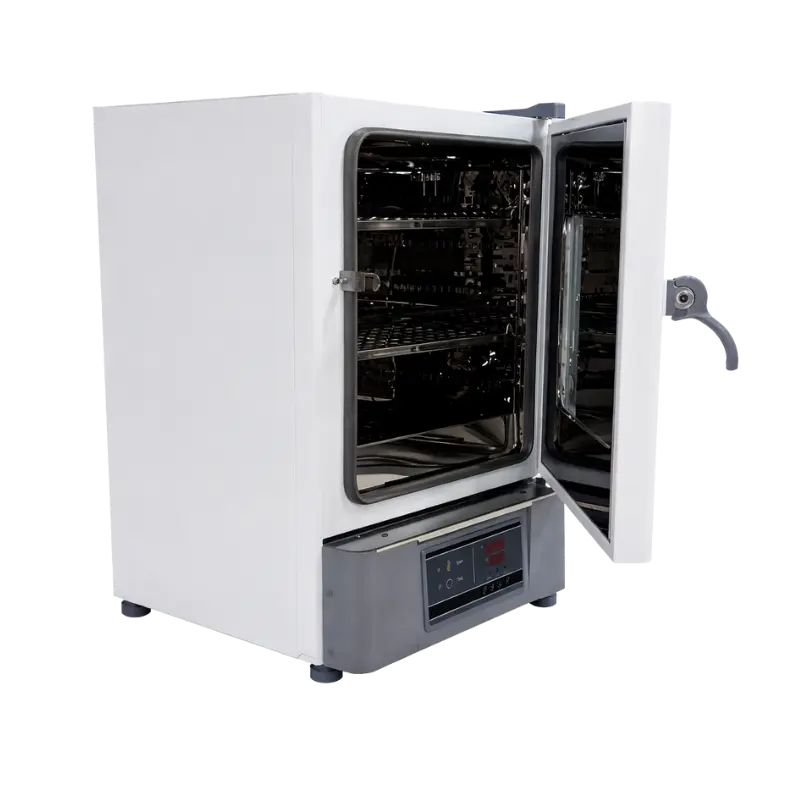

The oven features a mirror-finish stainless steel inner chamber and durable cold-rolled steel exterior, providing corrosion resistance and easy cleaning. A dual-channel forced convection airflow system with vertical air duct distributes heat evenly inside the chamber, improving temperature uniformity and drying efficiency. Integrated over-temperature protection, deviation correction and menu locking functions enhance operational safety.
Why choose Labotemp Blast Drying Oven FOV-10?
✓ Large Capacity Chamber: 230 L interior supports efficient batch drying and testing.
✓ Uniform Heat Circulation: Forced convection airflow improves temperature stability.
✓ Smart Temperature Control: Programmable PID controller ensures precise and repeatable heating.
|
Maximum Temperature : 300°C Maximum Temperature |
300°C |
|
Chamber Volume : 230 L Chamber Volume |
230 L |
|
Power Rating : 3.0 kW Power Rating |
3.0 kW |
|
Temperature Distribution Accuracy : ±2.0% Temperature Distribution Accuracy |
±2.0% |
|
Timer Range : 0–9999 minutes Timer Range |
0–9999 minutes |
|
Program Control : Up to 50 programs × 50 steps Program Control |
Up to 50 programs × 50 steps |
|
Interior Material : Mirror stainless steel Interior Material |
Mirror stainless steel |
|
Exterior Material : Cold-rolled plate with chemical-resistant coating Exterior Material |
Cold-rolled plate with chemical-resistant coating |
|
Insulation Material : Silica fiber Insulation Material |
Silica fiber |
|
Heater Type : Stainless steel heating pipe / Nickel-cobalt alloy wire Heater Type |
Stainless steel heating pipe / Nickel-cobalt alloy wire |
|
Air Circulation : Dual-channel forced convection, rear air duct, swirl air supply Air Circulation |
Dual-channel forced convection, rear air duct, swirl air supply |
|
Air Vent : Ø28 mm × 2 (top) Air Vent |
Ø28 mm × 2 (top) |
|
Sensor Type : Pt100 Sensor Type |
Pt100 |
|
Safety Device : Anti-temperature rise device Safety Device |
Anti-temperature rise device |
|
Fan Type : Constant speed fan Fan Type |
Constant speed fan |
|
Internal Dimensions : 600×500×750mm Internal Dimensions |
600×500×750mm |
|
External Dimensions : 735×625×1220mm External Dimensions |
735×625×1220mm |
|
Package Dimensions : 898×814×1347mm Package Dimensions |
898×814×1347mm |
|
Temperature Resolution : 0.1°C Temperature Resolution |
0.1°C |
|
Temperature Fluctuation : ±1.0°C Temperature Fluctuation |
±1.0°C |
|
Power Supply (50/60 Hz) : AC220V / 13.6A Power Supply (50/60 Hz) |
AC220V / 13.6A |
|
Partition Load Capacity : 15 kg Partition Load Capacity |
15 kg |
|
Partition Layers / Standard Layers : 17/2 layers Partition Layers / Standard Layers |
17/2 layers |
|
Partition Spacing : 150 mm Partition Spacing |
150 mm |
|
Net / Gross Weight (kg) : 84 / 100 Net / Gross Weight (kg) |
84 / 100 |
