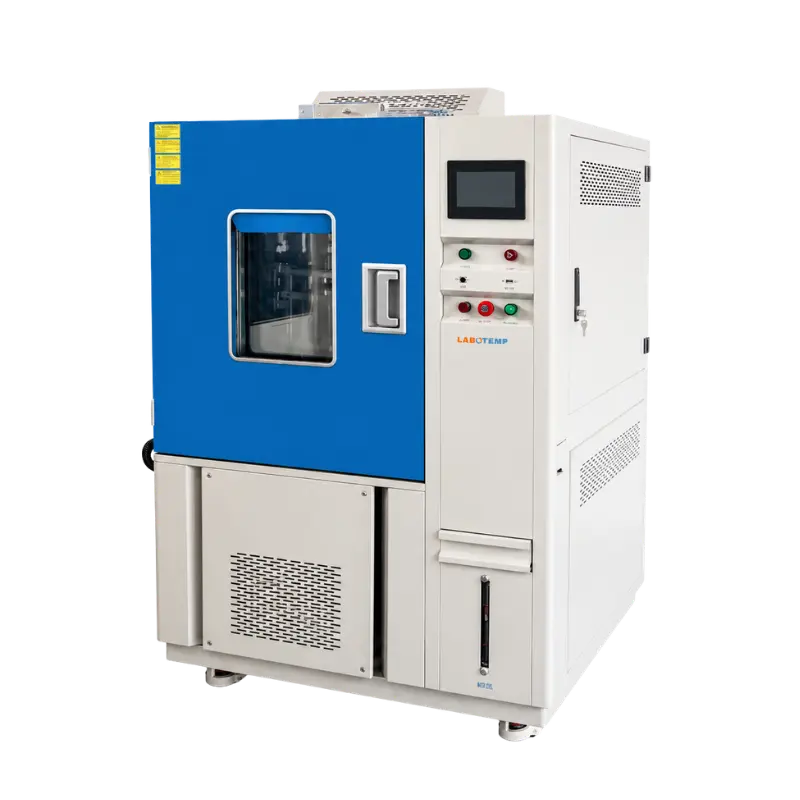

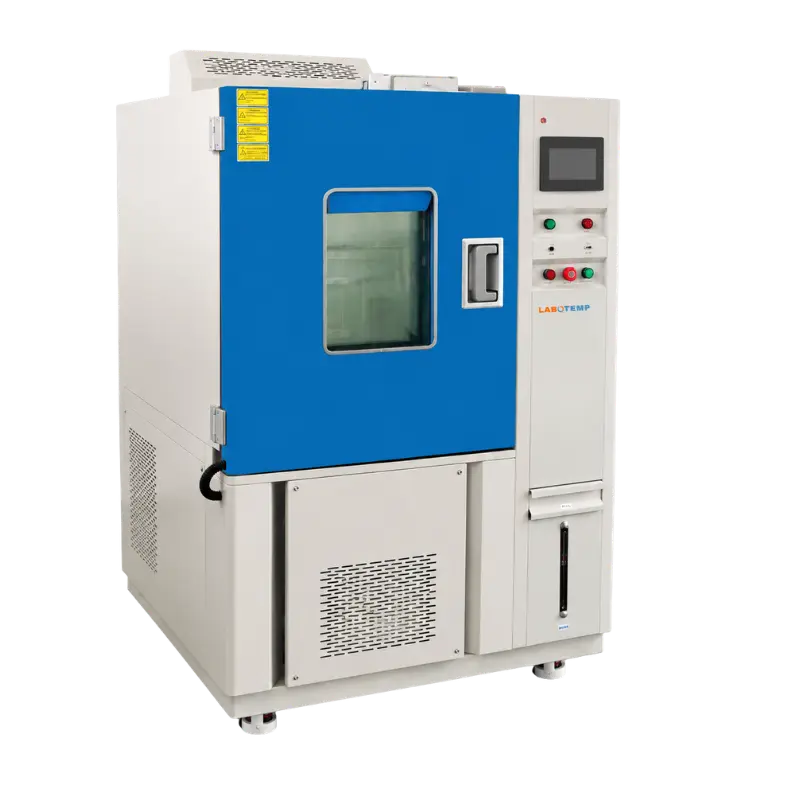

Ozone Chamber LOC-101

Name: Ozone Chamber LOC-101
Brand: Labotemp
SKU: LOC-101
Price: 36032.00 USD
Availability: InStock
Rating: 4.9 (670 reviews)

Labotemp Ozone Test Chamber LOC-101 is a precision-engineered system designed for reliable ozone testing of rubber and polymer materials under controlled environmental conditions. This advanced ozone aging test chamber simulates accelerated aging by exposing samples to regulated ozone concentrations, helping laboratories evaluate cracking, degradation, and material durability. With a 250L chamber capacity, controlled temperature up to 100°C, and adjustable humidity conditions, it ensures stable and repeatable testing for applications in automotive, cable, sealing, and elastomer industries. The integrated dynamic and static sample holders allow uniform 360° exposure, making it a dependable Rubber & Elastomer Aging Tester for accurate performance analysis.

Built for long-term laboratory use, this ozone chamber combines a programmable touch-screen controller with precise ozone concentration control (1–1000 PPHM) and consistent airflow distribution. The system features a high-accuracy platinum temperature sensor, efficient mechanical refrigeration, and a silent ozone generator for stable operation. Safety is enhanced through an active exhaust system that removes residual ozone, protecting both operators and the environment. With robust construction, energy-efficient operation, and advanced monitoring, this Rubber Ozone Resistance Tester delivers dependable results for routine and research-based material testing.

Why Choose Labotemp Ozone Test Chamber LOC-101?
✓ Accurate ozone control: Stable concentration for reliable testing
✓ Uniform exposure system: 360° rotating sample holders
✓ Advanced safety design: Active exhaust for operator protection

$36032

Datasheet

Capacity : 250 L Capacity	250 L
Temperature Range : 0°C ~ +100°C Temperature Range	0°C ~ +100°C
Power Supply : 220V 50/60Hz Power Supply	220V 50/60Hz
Temperature Fluctuation : ±0.5°C Temperature Fluctuation	±0.5°C
Temperature Deviation : ±2.0°C Temperature Deviation	±2.0°C
Humidity Range : 30% ~ 98% RH Humidity Range	30% ~ 98% RH
Humidity Deviation : ±2.5% RH Humidity Deviation	±2.5% RH
Cooling Rate : Ambient ~ 0℃ within 20 min Cooling Rate	Ambient ~ 0℃ within 20 min
Ozone Concentration : 1 ~ 1000 PPHM Ozone Concentration	1 ~ 1000 PPHM
Sample Holder Rotate Speed : 0 ~ 10 r/min Sample Holder Rotate Speed	0 ~ 10 r/min
Airflow Rate : 0 ~ 60 L/min Airflow Rate	0 ~ 60 L/min
Clamps Tensile Stretch : 5% ~ 35% Clamps Tensile Stretch	5% ~ 35%
Cooling System : Mechanical compression refrigeration system Cooling System	Mechanical compression refrigeration system
Controller : Programmable color LCD touch screen controller Controller	Programmable color LCD touch screen controller
Communication : Ethernet connection, PC Link Communication	Ethernet connection, PC Link
Humidifier : External isolation, stainless steel surface evaporation humidifier Humidifier	External isolation, stainless steel surface evaporation humidifier
Temperature Sensor : PTR Platinum Resistance PT100Ω / MV A-class Temperature Sensor	PTR Platinum Resistance PT100Ω / MV A-class
Gas Sensor : Ozone gas sensor Gas Sensor	Ozone gas sensor
Ozone Generator : Silent discharge type ozone generator Ozone Generator	Silent discharge type ozone generator

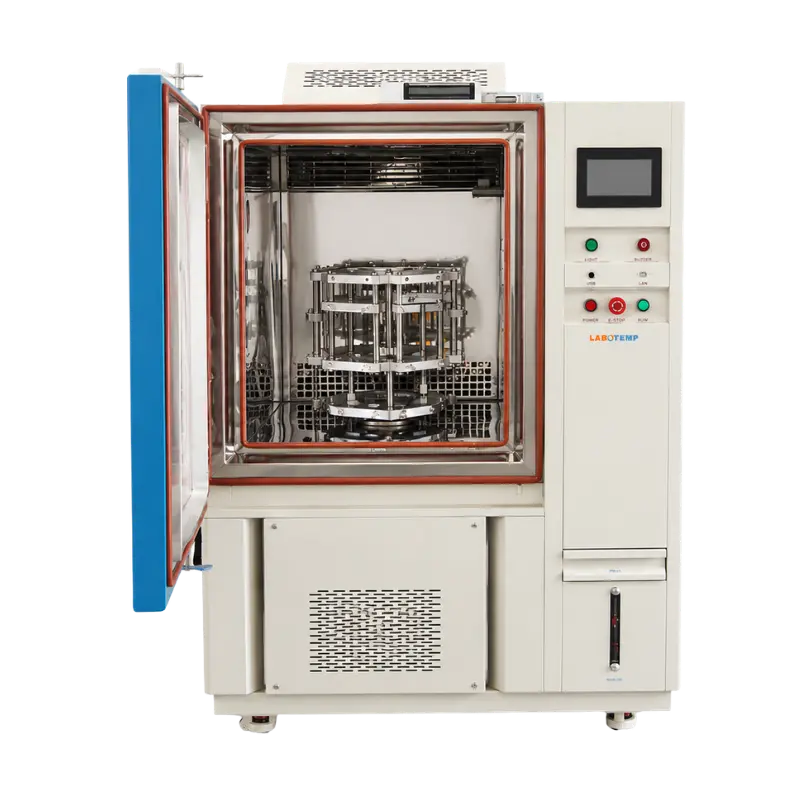

Sample Holder : Static + dynamic combined sample holder Sample Holder	Static + dynamic combined sample holder
Exterior Material : Steel plate with protective coating Exterior Material	Steel plate with protective coating
Interior Material : SUS304 stainless steel Interior Material	SUS304 stainless steel
Internal Dimension : 600 × 600 × 700mm Internal Dimension	600 × 600 × 700mm
Overall Dimension : 960 × 1150 × 1860mm Overall Dimension	960 × 1150 × 1860mm
Net Weight : 390kg Net Weight	390kg
Gross Weight : 490kg Gross Weight	490kg
Package Size : 1300x1300x1950mm Package Size	1300x1300x1950mm

Wide Ozone Range ➤ Wide Ozone Range
Durable construction designed to support long-term laboratory and industrial use. ➤ Durable construction designed to support long-term laboratory and industrial use.
Uniform specimen exposure design to improve testing consistency across multiple samples. ➤ Uniform specimen exposure design to improve testing consistency across multiple samples.
Low-noise operating system for a comfortable laboratory environment. ➤ Low-noise operating system for a comfortable laboratory environment.
Fast response environmental regulation to maintain reliable test conditions. ➤ Fast response environmental regulation to maintain reliable test conditions.
Modular access design for convenient maintenance and serviceability. ➤ Modular access design for convenient maintenance and serviceability.
Compact footprint with efficient use of laboratory space. ➤ Compact footprint with efficient use of laboratory space.
Built-in safety mechanisms to support secure operation during extended testing cycles. ➤ Built-in safety mechanisms to support secure operation during extended testing cycles.
User-friendly operation with intelligent control interface for simplified parameter management. ➤ User-friendly operation with intelligent control interface for simplified parameter management.

LOC-101 is suitable for accelerated ozone aging and durability evaluation of rubber, elastomer, and polymer materials under controlled temperature, humidity, airflow, and ozone exposure conditions ➤ LOC-101 is suitable for accelerated ozone aging and durability evaluation of rubber, elastomer, and polymer materials under controlled temperature, humidity, airflow, and ozone exposure conditions
Widely used in automotive component testing, cable and wire insulation assessment, seal and gasket validation, tire and rubber product QC, material R&D laboratories, academic research, and industrial compliance testing for product reliability and lifespan studies ➤ Widely used in automotive component testing, cable and wire insulation assessment, seal and gasket validation, tire and rubber product QC, material R&D laboratories, academic research, and industrial compliance testing for product reliability and lifespan studies
