Ozone Chamber LOC-103

Name: Ozone Chamber LOC-103
Brand: Labotemp
SKU: LOC-103
Price: 47267.00 USD
Availability: InStock
Rating: 4.8 (719 reviews)

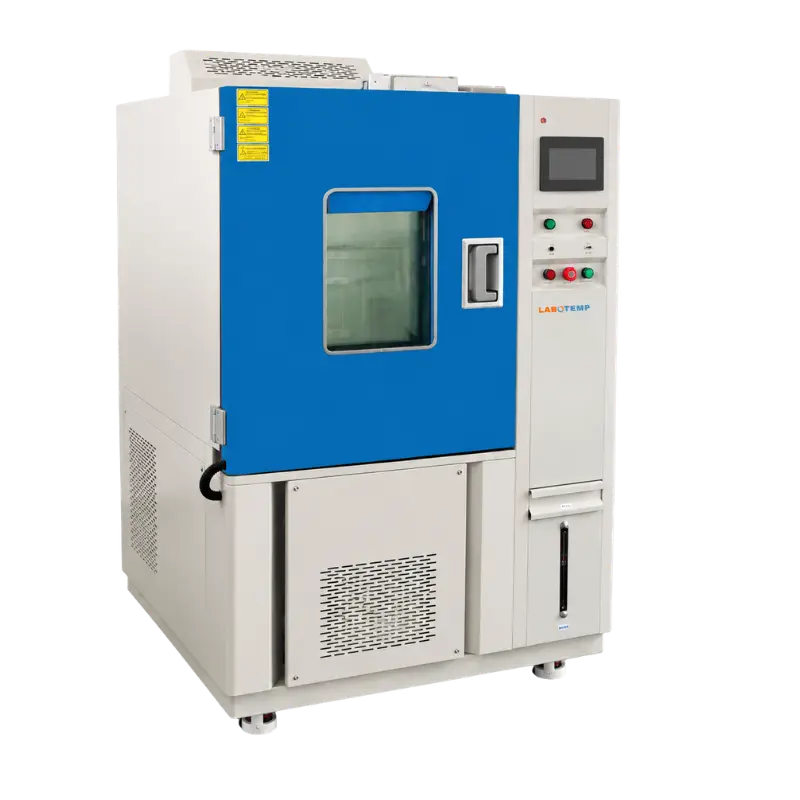

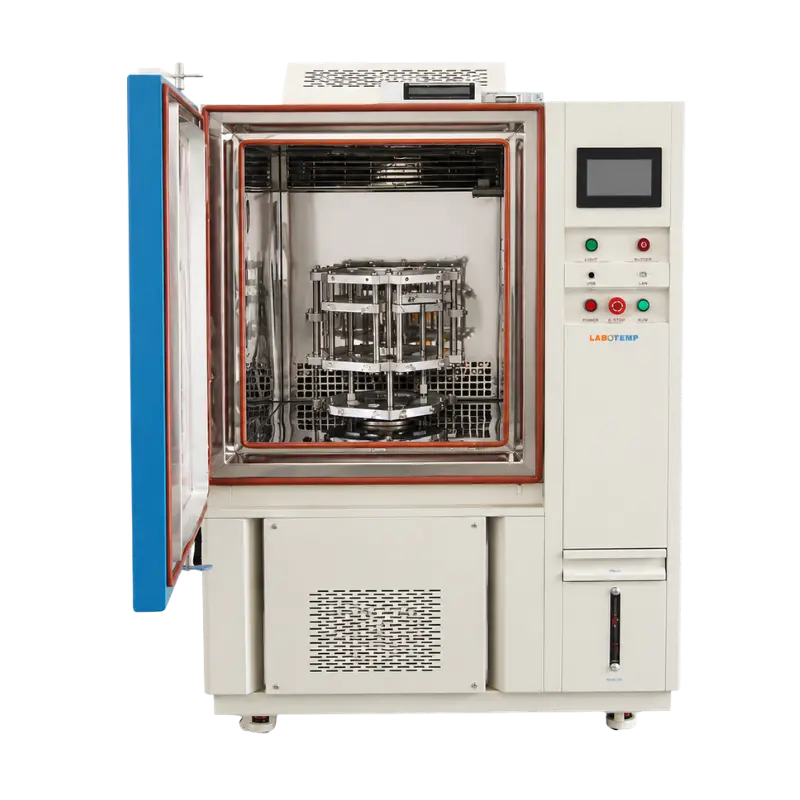

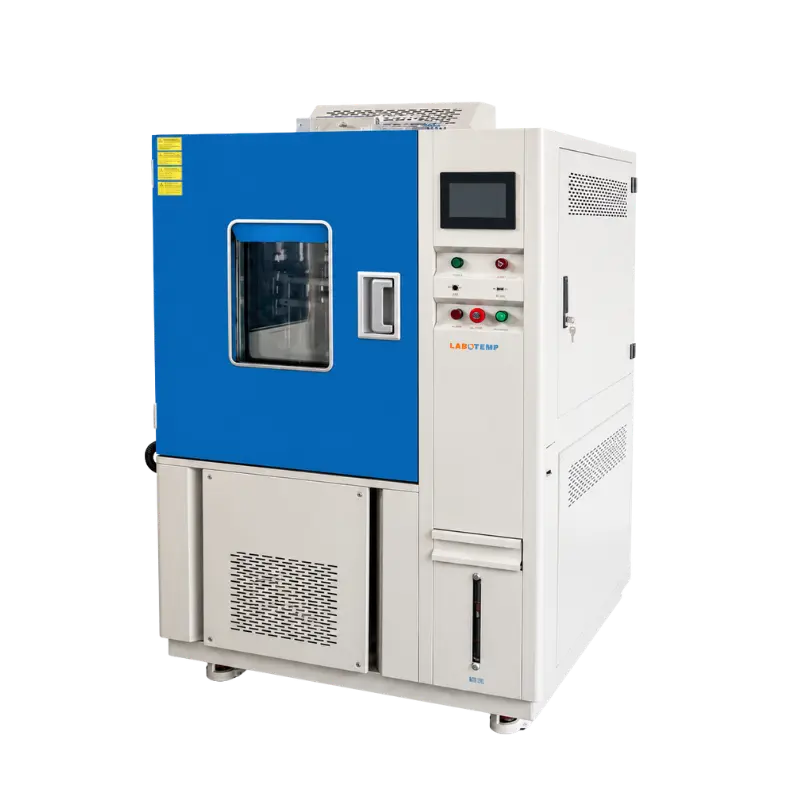

Labotemp Ozone Test Chamber LOC-103 is a high-capacity solution designed for accurate and consistent ozone testing of rubber and polymer materials. With an 800L chamber volume, this advanced ozone aging test chamber simulates real-world aging by exposing samples to controlled ozone, temperature, and humidity conditions. It is ideal for evaluating cracking, degradation, and durability of elastomers used in automotive, cable, sealing, and industrial applications. The combined static and dynamic sample holders ensure uniform exposure, making it a reliable Rubber & Elastomer Aging Tester for precise and repeatable results.

Engineered for dependable laboratory performance, this ozone chamber features a programmable touch-screen controller for easy operation and monitoring. It maintains stable environmental conditions with precise ozone generation and consistent airflow, while the integrated exhaust system ensures safe removal of residual ozone. Built with durable materials and designed for continuous operation, this Rubber Ozone Resistance Tester offers long-term reliability, safety, and efficiency for routine and advanced material testing.

Why Choose Labotemp Ozone Test Chamber LOC-103?
✓ High-capacity testing: 800L chamber for larger sample loads
✓ Uniform ozone exposure: Ensures accurate aging results
✓ Safe and durable design: Built for continuous lab use

$47267

Datasheet

Capacity : 800L Capacity	800L
Temperature Range : 0°C ~ +100°C Temperature Range	0°C ~ +100°C
Power Supply : 220V 50/60Hz Power Supply	220V 50/60Hz
Temperature Deviation : ±2.0°C Temperature Deviation	±2.0°C
Humidity Range : 30% ~ 98% RH Humidity Range	30% ~ 98% RH
Humidity Deviation : ±2.5% RH Humidity Deviation	±2.5% RH
Cooling Rate : Ambient ~ 0℃ within 20 min Cooling Rate	Ambient ~ 0℃ within 20 min
Ozone Concentration : 1 ~ 1000 PPHM Ozone Concentration	1 ~ 1000 PPHM
Sample Holder Rotate Speed : 0 ~ 10 r/min Sample Holder Rotate Speed	0 ~ 10 r/min
Airflow Rate : 0 ~ 60 L/min Airflow Rate	0 ~ 60 L/min
Clamps Tensile Stretch : 5% ~ 35% Clamps Tensile Stretch	5% ~ 35%
Cooling System : Mechanical compression refrigeration system Cooling System	Mechanical compression refrigeration system
Controller : Programmable color LCD touch screen controller Controller	Programmable color LCD touch screen controller
Communication : Ethernet connection, PC Link Communication	Ethernet connection, PC Link
Humidifier : External isolation, stainless steel surface evaporation humidifier Humidifier	External isolation, stainless steel surface evaporation humidifier
Temperature Sensor : PTR Platinum Resistance PT100Ω / MV A-class Temperature Sensor	PTR Platinum Resistance PT100Ω / MV A-class
Gas Sensor : Ozone gas sensor Gas Sensor	Ozone gas sensor
Ozone Generator : Silent discharge type ozone generator Ozone Generator	Silent discharge type ozone generator
Sample Holder : Static + dynamic combined sample holder Sample Holder	Static + dynamic combined sample holder
Exterior Material : Steel Plate with protective coating Exterior Material	Steel Plate with protective coating
Interior Material : SUS304 stainless steel Interior Material	SUS304 stainless steel
Temperature Fluctuation : ±0.5°C Temperature Fluctuation	±0.5°C
Internal Dimension : 800 × 1000 × 1000mm Internal Dimension	800 × 1000 × 1000mm
Overall Dimension : 1300 × 1540 × 2120mm Overall Dimension	1300 × 1540 × 2120mm
Net Weight : 550kg Net Weight	550kg
Gross Weight : 680kg Gross Weight	680kg
Package Size : 1450x1700x2350mm Package Size	1450x1700x2350mm

Adjustable Tensile Stretch ➤ Adjustable Tensile Stretch
Durable construction designed to support long-term laboratory and industrial use. ➤ Durable construction designed to support long-term laboratory and industrial use.
Uniform specimen exposure design to improve testing consistency across multiple samples. ➤ Uniform specimen exposure design to improve testing consistency across multiple samples.
Low-noise operating system for a comfortable laboratory environment. ➤ Low-noise operating system for a comfortable laboratory environment.
Fast response environmental regulation to maintain reliable test conditions. ➤ Fast response environmental regulation to maintain reliable test conditions.
Modular access design for convenient maintenance and serviceability. ➤ Modular access design for convenient maintenance and serviceability.
Compact footprint with efficient use of laboratory space. ➤ Compact footprint with efficient use of laboratory space.
Built-in safety mechanisms to support secure operation during extended testing cycles. ➤ Built-in safety mechanisms to support secure operation during extended testing cycles.
Suitable for quality control, product development, and material validation  ➤ Suitable for quality control, product development, and material validation

LOC-103 is suitable for accelerated ozone aging and durability evaluation of rubber, elastomer, and polymer materials under controlled temperature, humidity, airflow, and ozone exposure conditions ➤ LOC-103 is suitable for accelerated ozone aging and durability evaluation of rubber, elastomer, and polymer materials under controlled temperature, humidity, airflow, and ozone exposure conditions
Widely used in automotive component testing, cable and wire insulation assessment, seal and gasket validation, tire and rubber product QC, material R&D laboratories, academic research, and industrial compliance testing for product reliability and lifespan studies ➤ Widely used in automotive component testing, cable and wire insulation assessment, seal and gasket validation, tire and rubber product QC, material R&D laboratories, academic research, and industrial compliance testing for product reliability and lifespan studies
