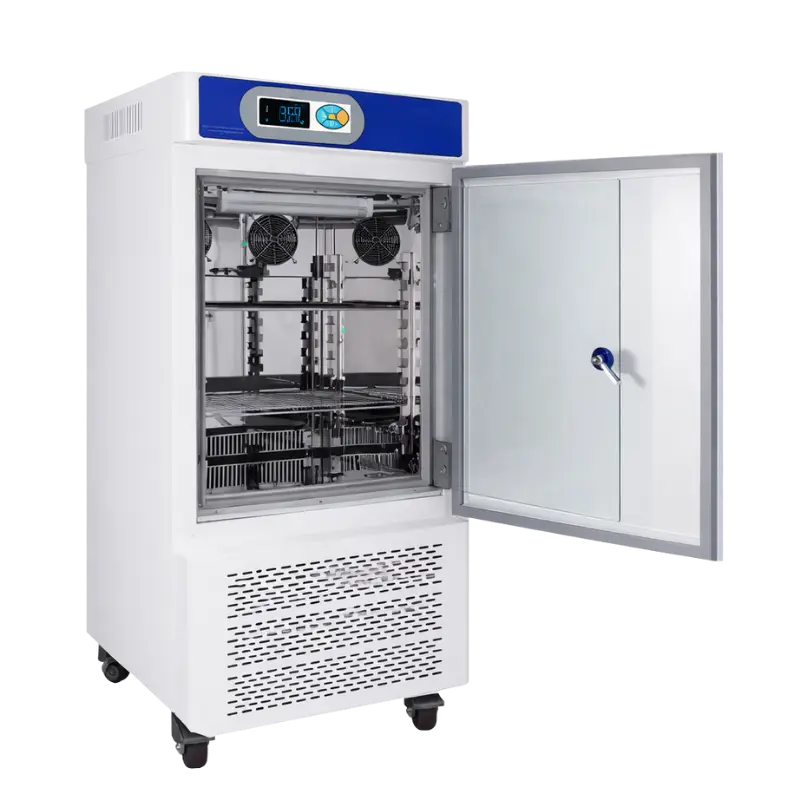

Labotemp Temperature and Humidity Chamber THC-04, developed by leading humidity chamber manufacturers, is designed to deliver precise and repeatable environmental conditions for advanced temperature and humidity testing. With a temperature range of 0°C to 65°C and humidity range from 40% to 95% RH, this constant temperature and humidity chamber supports accurate product stability evaluation and controlled humidity chamber applications. It features fluorine-free refrigeration, automatic defrost, and an intelligent humidification system with automatic water replenishment, ensuring efficient operation and reduced humidity fluctuation.
Features like RS485 connectivity, over-temperature protection, and uniform airflow ensure reliable performance and safe long-term operation. ISO and CE compliant, this temperature humidity chamber provides dependable environmental testing performance, making it a trusted solution from professional environmental chamber manufacturers and environmental chamber suppliers.
Why Choose Labotemp Temperature and Humidity Chamber THC-04?
✓ Manufactured with Precision: Built by trusted environmental chamber manufacturers for reliable and durable performance
✓ ISO and CE Compliant: Ensures safe, accurate, and internationally approved temperature and humidity testing.
✓ Efficient and Stable Operation: Advanced refrigeration and humidification provide uniform and consistent environmental conditions.
|
Temperature Range : 0–65 / H~90℃ Temperature Range |
0–65 / H~90℃ |
|
Volume : 250L Volume |
250L |
|
Power : 1.0kW Power |
1.0kW |
|
Voltage : 220V Voltage |
220V |
|
Inner Size (H×W×D) : 1000×550×450mm Inner Size (H×W×D) |
1000×550×450mm |
|
Overall Dimension (H×W×D) : 1550×690×660mm Overall Dimension (H×W×D) |
1550×690×660mm |
|
Accuracy : ±0.1℃ Accuracy |
±0.1℃ |
|
Volatility : ±0.5% Volatility |
±0.5% |
|
Humidity Range : 40%–95% Humidity Range |
40%–95% |
|
Humidity Fluctuation : ±2% Humidity Fluctuation |
±2% |
|
Timing Range : 0–999 M/H Timing Range |
0–999 M/H |
|
Packing Size (H×W×D) : 1670×770×740mm Packing Size (H×W×D) |
1670×770×740mm |
|
Net Weight : 120kg Net Weight |
120kg |
|
Gross Weight : 145kg Gross Weight |
145kg |
Volume: 50L
Voltage : 220V 50Hz
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 100L
Voltage : 220V 50Hz
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 150L
Voltage : 220V
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 250L
Voltage: 220V
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 350L
Voltage : 220V
Volatility : ±0.5%
Timing Range: 0–999 M/H
Volume: 800L
Voltage : 220V
Volatility : ±1%
Timing Range: 0–999 M/H
Water Tank Capacity: 12 L
Water Supply: Manual Filling and Automatic Water Inlet
Water Protection: Water Shortage and Overflow Protection
Useful Volume: 1800 L
Thermal Insulation: Polyurethane foam and insulation cotton
Temperature Sensor: PTR Platinum Resistance PT100Ω / MV A-class
Temperature Range: -120℃ ~ +150℃
Temperature Fluctuation: ±0.5°C
Thermal Insulation: Polyurethane foam and insulation cotton
Temperature Sensor: PTR Platinum Resistance PT100Ω / MV A-class
Temperature Range: -120°C ~ +150°C
Temperature Fluctuation: ±0.5°C
Temperature heating speed: 3°C/min in average (without loading)
Temperature cooling speed: 1°C/min in average (without loading)
Package Size: 1300x1500x1950mm
Net Weight : 680kg
Total Power: 0.75 kW
Motor Brand: Taiwan Yutian
Model No.: CTC-04
Lowest Temperature: -190 °C
Temperature Range: +30° C to -196° C
Temperature Control Accuracy: ±2° C
Specimen Capacity: More than 60 specimens
Remarks: Cold room volume can be customized according to customer requirements
