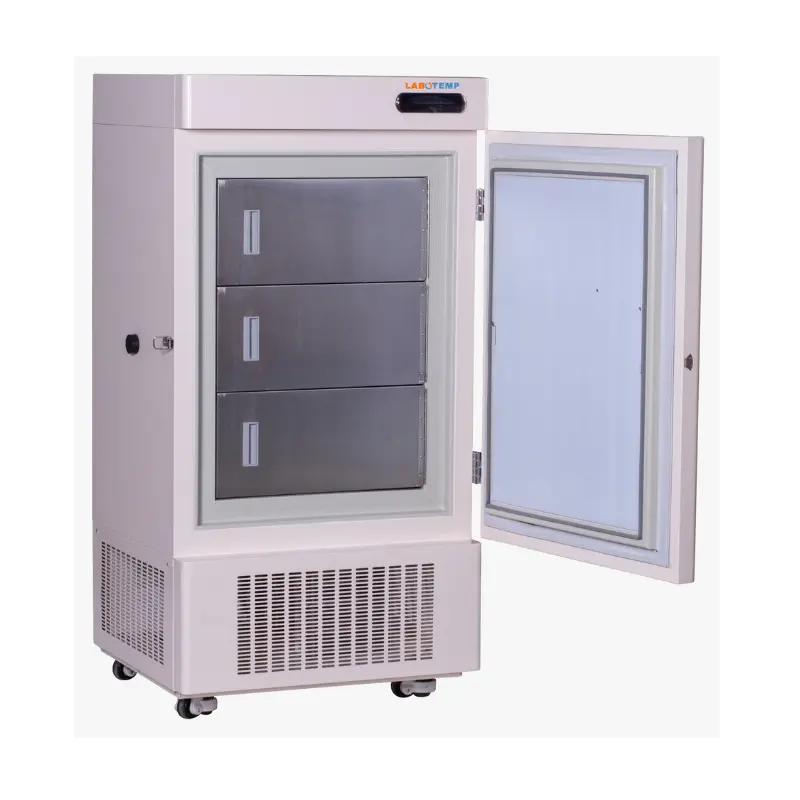

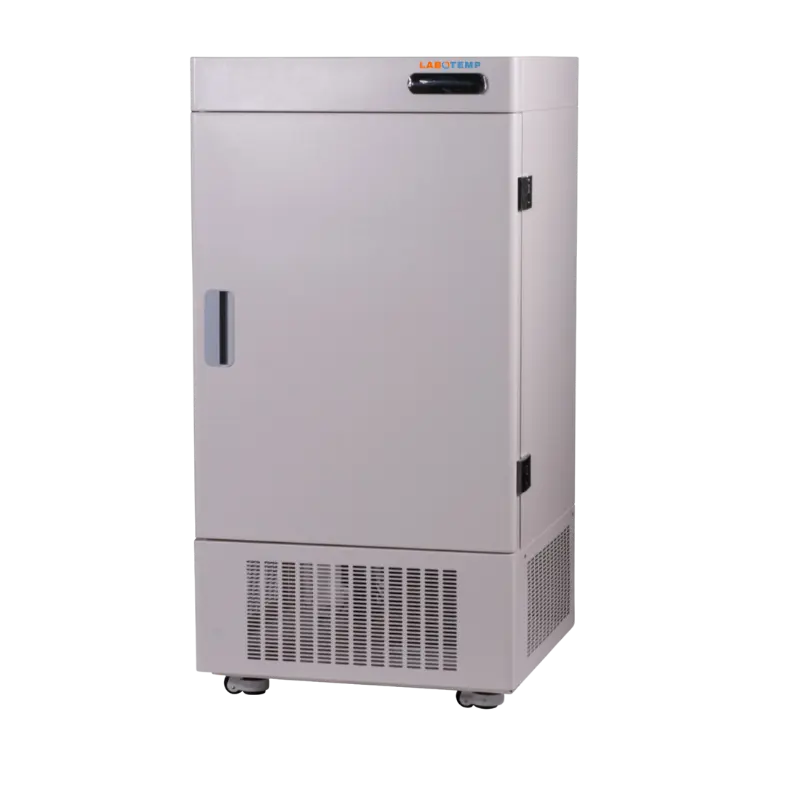

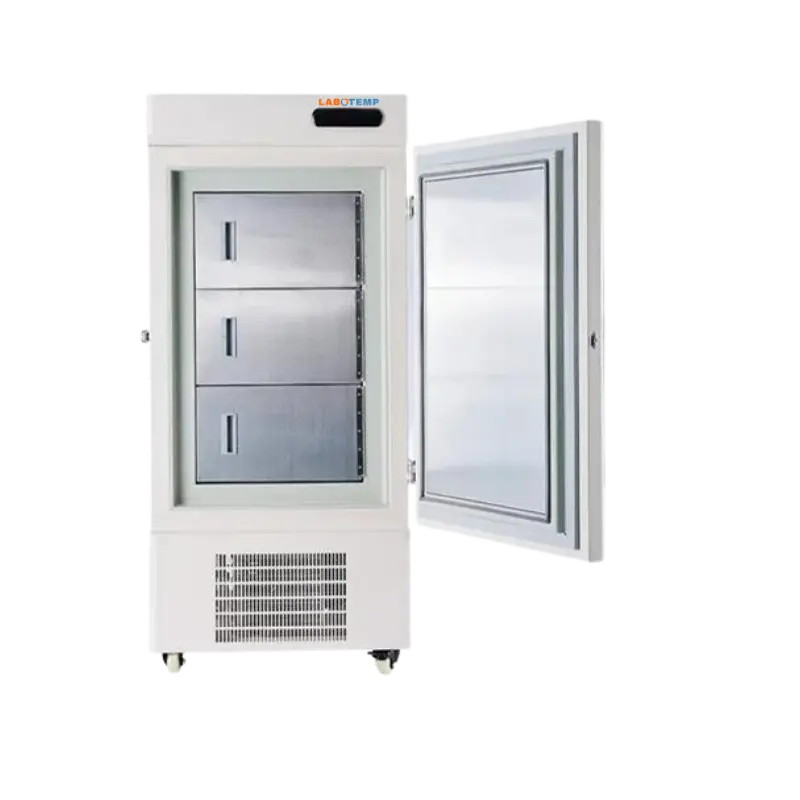

Labotemp Upright Ultra Low Temperature Freezer ULF-10, manufactured by a trusted ULT freezer manufacturer, is a high-performance vertical storage solution designed for labs, hospitals, and pharmaceutical facilities.This ULF-10 offers a 158 L capacity with an adjustable ultra low freezer temperature range of −60°C to −86°C and precise 0.1°C accuracy through its microprocessor control and LED display. As a professional ultra low temperature laboratory freezer, it ensures consistent protection of vaccines, biological samples, enzymes, and sensitive reagents in critical research and medical environments.
Powered by a high-efficiency Secop compressor with HFC refrigerant and copper condenser system, the ULF-10 delivers uniform cooling with optimized energy consumption of 480 W. With comprehensive audible and visual alarms for temperature, power, and system faults, this professional ultra cold freezer reflects Labotemp’s expertise in delivering dependable, long-term ultra-low temperature storage solutions.
Why Choose Labotemp ULT Freezer ULF-10?
✓ Wide ultra-low range: Operates from −60°C to −86°C for sample protection.
✓ Precision control: Microprocessor system with 0.1°C temp accuracy.
✓ Advanced safety: Multiple alarms, optional data recording, and secure access features.
|
Model : ULF-10 Model |
ULF-10 |
|
Capacity : 158L Capacity |
158L |
|
Temperature Range : -60~-86ºC Temperature Range |
-60~-86ºC |
|
Compressor : Secop Compressor |
Secop |
|
Power Supply : AC110V/220V±10%, 50/60Hz Power Supply |
AC110V/220V±10%, 50/60Hz |
|
Consumption : 480w Consumption |
480w |
|
Type : Vertical Type |
Vertical |
|
Temperature Accuracy : 0.1 ºC Temperature Accuracy |
0.1 ºC |
|
External Size : 700*700*1580 External Size |
700*700*1580 |
|
Internal Size : 460*455*800 Internal Size |
460*455*800 |
|
Control System : Microprocessor control, LED Display Control System |
Microprocessor control, LED Display |
|
Alarm : Audible and Visual Alarm Alarm |
Audible and Visual Alarm |
|
Refrigeration type : Direct refrigeration Refrigeration type |
Direct refrigeration |
|
Optional fuction : USB interface &temp. Recoder, 7 inches touch screen LCD,heavy duty big handle, Password fingerprint lock etc Optional fuction |
USB interface &temp. Recoder, 7 inches touch screen LCD,heavy duty big handle, Password fingerprint lock etc |
|
Refrigerant : HFC Mixture refrigerant Refrigerant |
HFC Mixture refrigerant |
|
Condenser & Evaporator : Made of copper Condenser & Evaporator |
Made of copper |
|
Internal Material : 304 stainless steel Internal Material |
304 stainless steel |
|
External Material : Cold-rolled steel with anti-bacteria powder coating External Material |
Cold-rolled steel with anti-bacteria powder coating |
|
Door : Lockable door Door |
Lockable door |
|
Insulation thickness : 120mm Insulation thickness |
120mm |
|
Caster : 4 casters Caster |
4 casters |
|
Optional : 7 inches touch screen,big handle,USB interface &Temperature recorder,Power failure alarm,SMS remote alarm Optional |
7 inches touch screen,big handle,USB interface &Temperature recorder,Power failure alarm,SMS remote alarm |
|
Inner Door : 3 Inner Door |
3 |
|
Shelf(rack) : 2 pcs Shelf(rack) |
2 pcs |
|
Temp. Test Port : 1, φ30mm Temp. Test Port |
1, φ30mm |
|
Package size : 785*770*1750mm Package size |
785*770*1750mm |
|
Net Weight : 123 kg Net Weight |
123 kg |
|
Gross Weight : 165 kg Gross Weight |
165 kg |
