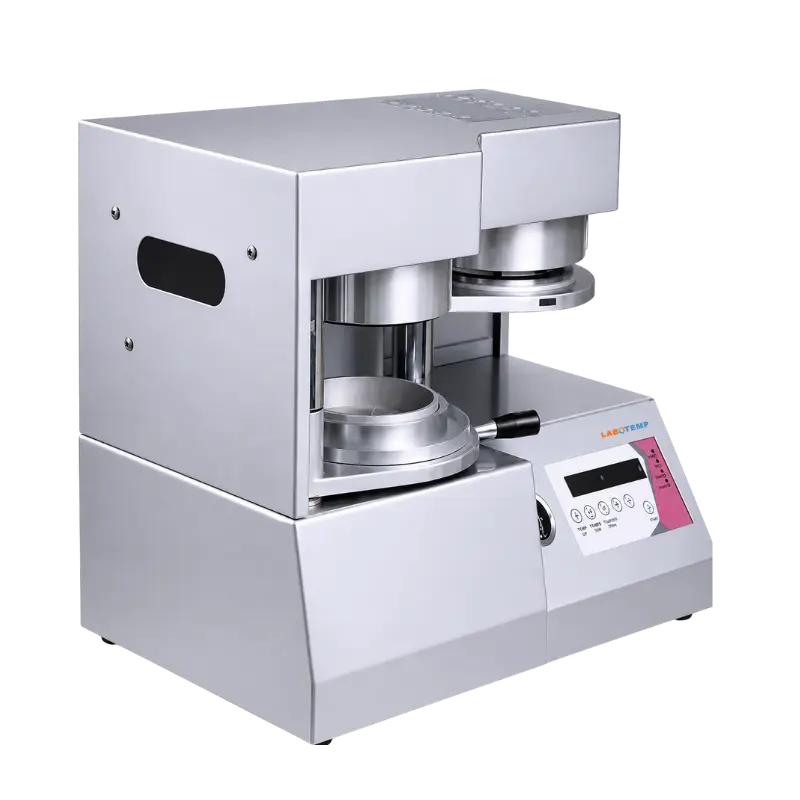

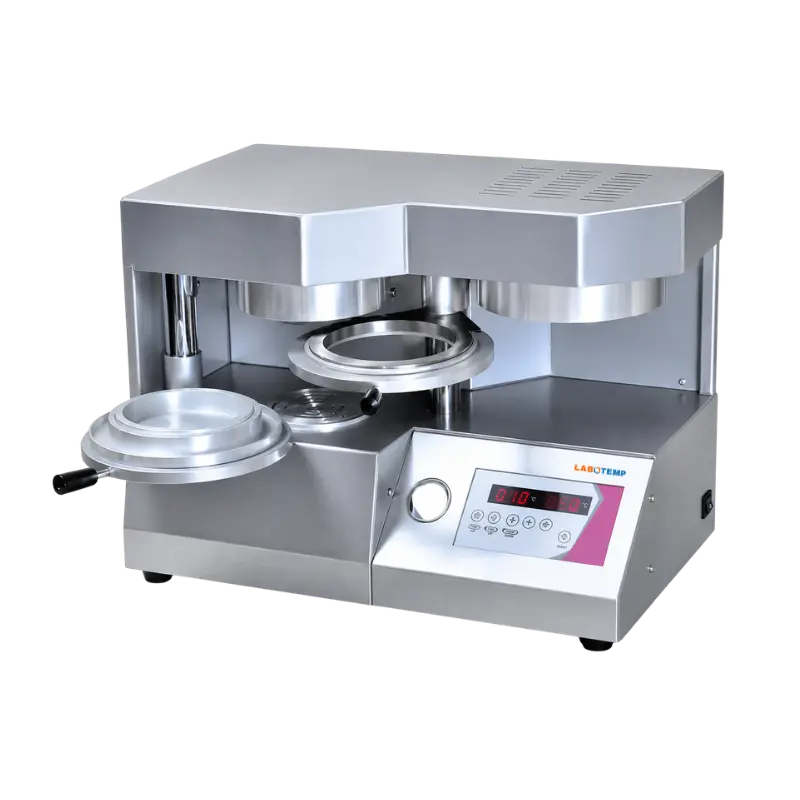

Labotemp Dental Thermoforming Machine LDM-101 is a precision pressure molding system designed for the fabrication of custom dental appliances using thermoplastic sheets. Engineered for dental laboratories, orthodontic clinics, and dental manufacturing facilities, the unit utilizes controlled heat and high-pressure forming technology to accurately shape plastic materials over dental models. With an adjustable temperature range from ambient to 250°C and a pressure range of 2–5 MPa, it delivers uniform adaptation and detailed reproduction for the production of orthodontic aligners, retainers, whitening trays, sports mouthguards, bruxism guards, and other custom dental devices.
Designed for efficient daily operation, the LDM-101 combines rapid heating, adjustable molding cycles, and precise pressure control to ensure consistent forming results while reducing material waste. Unlike conventional vacuum-forming systems, the vertical pressure molding process applies uniform pressure across the entire thermoplastic sheet, improving fit accuracy and appliance quality. The compact benchtop design, digital control interface, and robust construction make it a reliable solution for dental laboratories requiring repeatable performance, operational efficiency, and long-term durability.
Why Choose Labotemp Dental Thermoforming Machine LDM-101?
✓ High-Pressure Forming Technology: Delivers precise adaptation and detailed reproduction of dental models.
✓ Adjustable Temperature & Pressure: Supports a wide range of thermoplastic materials and appliance types.
✓ Fast Production Cycles: Rapid heating and molding improve laboratory productivity and workflow efficiency.
|
Temperature Range : Ambient Temperature to 250°C Temperature Range |
Ambient Temperature to 250°C |
|
Power Supply : 220V / 110V, 50/60Hz Power Supply |
220V / 110V, 50/60Hz |
|
Power Consumption : 850 W Power Consumption |
850 W |
|
Heating Time : 10 – 120 seconds (Adjustable) Heating Time |
10 – 120 seconds (Adjustable) |
|
Pressure Time : 10 – 60 seconds (Adjustable) Pressure Time |
10 – 60 seconds (Adjustable) |
|
Pressure Range : 2 – 5 MPa Pressure Range |
2 – 5 MPa |
|
Film Diameter : 125 mm Film Diameter |
125 mm |
|
Film Thickness : 0.8 – 5 mm Film Thickness |
0.8 – 5 mm |
|
Dimensions (W × D × H) : 400 × 300 × 220 mm Dimensions (W × D × H) |
400 × 300 × 220 mm |
|
Operation Type : Pressure Moulding Operation Type |
Pressure Moulding |
|
Material Forming Method : Vertical pressure forming for uniform moulding Material Forming Method |
Vertical pressure forming for uniform moulding |
|
Net Weight : 24kg Net Weight |
24kg |
|
Gross Weight : 26kg Gross Weight |
26kg |
|
Package Size : 440x560x430mm Package Size |
440x560x430mm |
Temperature Range: Ambient Temperature to 250°C
Pressure Time: 10 – 60 seconds (Adjustable)
Pressure Range: 2 – 5 MPa
Power Supply: 220V / 110V, 50/60Hz
