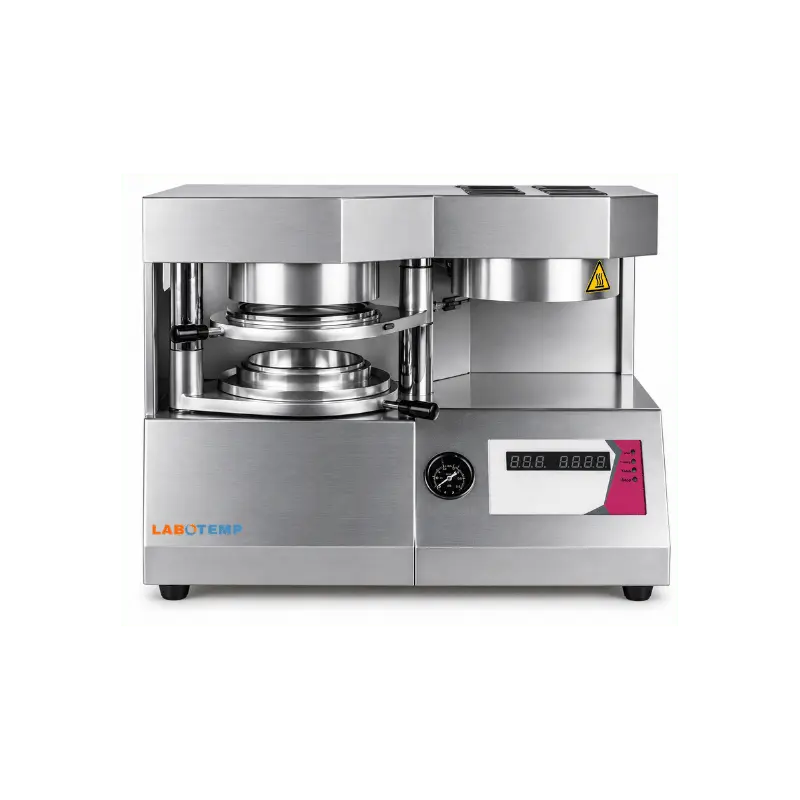

Labotemp Dental Thermoforming Machine LDM 102 operates with adjustable heating from 120°C to 240°C and positive working pressure from 0.3 to 0.5 MPa, providing controlled thermoforming of dental moulding films. The machine accepts 125 mm diameter films with thicknesses from 0.8 to 4 mm and allows heating time from 2 to 120 seconds and pressing time from 2 to 60 seconds, enabling the forming cycle to be adjusted according to the material and film thickness.
Designed for dental laboratories and orthodontic applications, the LDM 102 uses far infrared heating to soften the moulding film before positive pressure forms it over the dental model. Computer chip programming, digital timing display, touch switch operation, and adjustable pressure control support a controlled forming process. The machine requires connection to an air compressor or pump as the gas source, while its automatic pressing and subsequent air cooling sequence helps complete the moulding cycle after heating.
Why Choose Labotemp Dental Thermoforming Machine LDM 102?
✓ Adjustable Heating: Set the heating temperature from 120°C to 240°C according to the moulding film being processed.
✓ Controlled Positive Pressure: Adjustable working pressure from 0.3 to 0.5 MPa provides controlled forming conditions for different moulding films.
✓ Flexible Forming Cycle: Heating time from 2 to 120 seconds and pressing time from 2 to 60 seconds can be adjusted according to material and thickness.
| Forming and Heating | |
|
Heating Temperature : 120°C to 240°C, Adjustable Heating Temperature |
120°C to 240°C, Adjustable |
|
Heating Time : 2 to 120 seconds, Adjustable Heating Time |
2 to 120 seconds, Adjustable |
|
Pressing Time : 2 to 60 seconds, Adjustable Pressing Time |
2 to 60 seconds, Adjustable |
|
Working Pressure : 0.3 to 0.5 MPa, Adjustable Working Pressure |
0.3 to 0.5 MPa, Adjustable |
|
Applicable Film Diameter : 125 mm Applicable Film Diameter |
125 mm |
|
Applicable Film Thickness : 0.8 to 4 mm Applicable Film Thickness |
0.8 to 4 mm |
|
Heating Method : Far Infrared Heating Heating Method |
Far Infrared Heating |
|
Forming Method : Positive Pressure Forming Forming Method |
Positive Pressure Forming |
| Control System | |
|
Control System- : Computer Chip Programming Control System- |
Computer Chip Programming |
|
Display : Digital Display Display |
Digital Display |
|
Operation Interface : Touch Switch Operation Interface |
Touch Switch |
|
Pressure Monitoring : Pressure Gauge Pressure Monitoring |
Pressure Gauge |
|
Work Cycle Control : Dedicated Work Button Work Cycle Control |
Dedicated Work Button |
|
Default Heating Temperature : 220°C Default Heating Temperature |
220°C |
|
Default Heating Time : 25 seconds Default Heating Time |
25 seconds |
|
Default Pressing Time : 10 seconds Default Pressing Time |
10 seconds |
|
Default Working Pressure : 0.4 MPa Default Working Pressure |
0.4 MPa |
| Electrical Requirements | |
|
Power Supply : 220V or 110V ±10%, 50Hz Power Supply |
220V or 110V ±10%, 50Hz |
|
Power Consumption : Less than 850 W Power Consumption |
Less than 850 W |
|
External Air Source : Air Compressor or Pump Required External Air Source |
Air Compressor or Pump Required |
| Physical Details | |
|
Net Weight : 20 kg Net Weight |
20 kg |
|
Gross Weight : 24 kg Gross Weight |
24 kg |
Temperature Range: Ambient Temperature to 250°C
Pressure Time: 10 – 60 seconds (Adjustable)
Pressure Range: 2 – 5 MPa
Power Supply: 220V / 110V, 50/60Hz
Working Pressure: 0.3 to 0.5 MPa, Adjustable
Work Cycle Control: Dedicated Work Button
Pressure Monitoring: Pressure Gauge
Pressing Time: 2 to 60 seconds, Adjustable
