Labotemp 3in1 Ultrasonic Oxygen Analyzer LOA-01 is a high-precision oxygen analyzer designed to measure oxygen concentration, oxygen flow, and pressure from medical and industrial oxygen sources. Using advanced ultrasonic oxygen sensor technology, this portable oxygen analyzer delivers fast, stable, and repeatable results without chemical consumption or sensor drift, making it suitable for continuous professional use.
With an oxygen measurement range of 21% to 95.6% O₂ and accuracy of ±1.5%, LOA-01 ensures reliable monitoring of oxygen levels at the outlet of oxygen concentrators, cylinders, and gas distribution systems. It also functions as a complete oxygen gas analyzer, offering flow measurement from 0–10 L/min and pressure measurement up to 100 kPa, clearly displayed on an LCD screen. Its handheld design, battery operation, and intuitive controls make it ideal for hospitals, laboratories, oxygen plants, and service engineers. Unlike pulse oximeters that measure patient oxygen saturation, this O₂ analyzer is purpose-built for process gas measurement and gas quality verification.
Why Choose Labotemp Oxygen Analyzer LOA-01?
✓ 3-in-1 Measurement: Oxygen concentration, flow, and pressure in one device
✓ Ultrasonic Precision: Stable, maintenance-free sensor technology
✓ Compliance & Trust: ISO 13485:2016 certified and CE marked
|
Measured Oxygen Range : 21% – 95.6% O₂ Measured Oxygen Range |
21% – 95.6% O₂ |
|
Oxygen Accuracy : ±1.5% Oxygen Accuracy |
±1.5% |
|
Oxygen Resolution : 0.1% Oxygen Resolution |
0.1% |
|
Measured Flow Range : 0 – 10.0 LPM Measured Flow Range |
0 – 10.0 LPM |
|
Flow Accuracy : ±0.2 LPM Flow Accuracy |
±0.2 LPM |
|
Flow Resolution : 0.1 LPM Flow Resolution |
0.1 LPM |
|
Measured Pressure Range : 0 – 100 kPa Measured Pressure Range |
0 – 100 kPa |
|
Pressure Accuracy : ±1% FS Pressure Accuracy |
±1% FS |
|
Pressure Resolution : 1 kPa Pressure Resolution |
1 kPa |
|

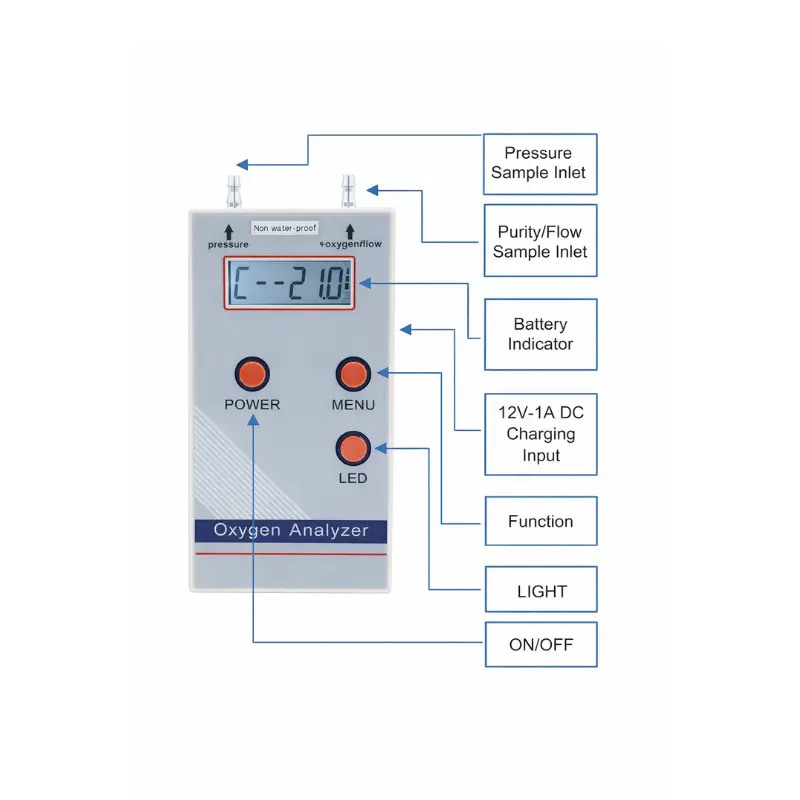

Display Type : LCD Display Type |
LCD |
|
Display Modes : Oxygen Concentration / Flow / Pressure Display Modes |
Oxygen Concentration / Flow / Pressure |
|
Control Buttons : POWER / MENU / LED Control Buttons |
POWER / MENU / LED |
|
Battery : 3.0 V, 3150 mAh (Rechargeable) Battery |
3.0 V, 3150 mAh (Rechargeable) |
|
DC Charging Input : 12 V – 1 A DC Charging Input |
12 V – 1 A |
|
Operating Temperature : +5°C to +55°C Operating Temperature |
+5°C to +55°C |
|
Storage Temperature : −15°C to +60°C Storage Temperature |
−15°C to +60°C |
|
Dimensions : 76 × 95 × 35 mm Dimensions |
76 × 95 × 35 mm |
|
Net Weight : 300g Net Weight |
300g |
|
Gross Weight : 10kg Gross Weight |
10kg |
|
Package Size : 340x210x510mm Package Size |
340x210x510mm |
Storage Temperature: −15°C to +60°C
Pressure Resolution: 1 kPa
Pressure Accuracy: ±1% FS
Package Size : 340x210x510mm
Width: 9.5 cm
Weight: 300 g
Thickness: 3.5 cm
Pressure Range: 0 – 344 kPa
