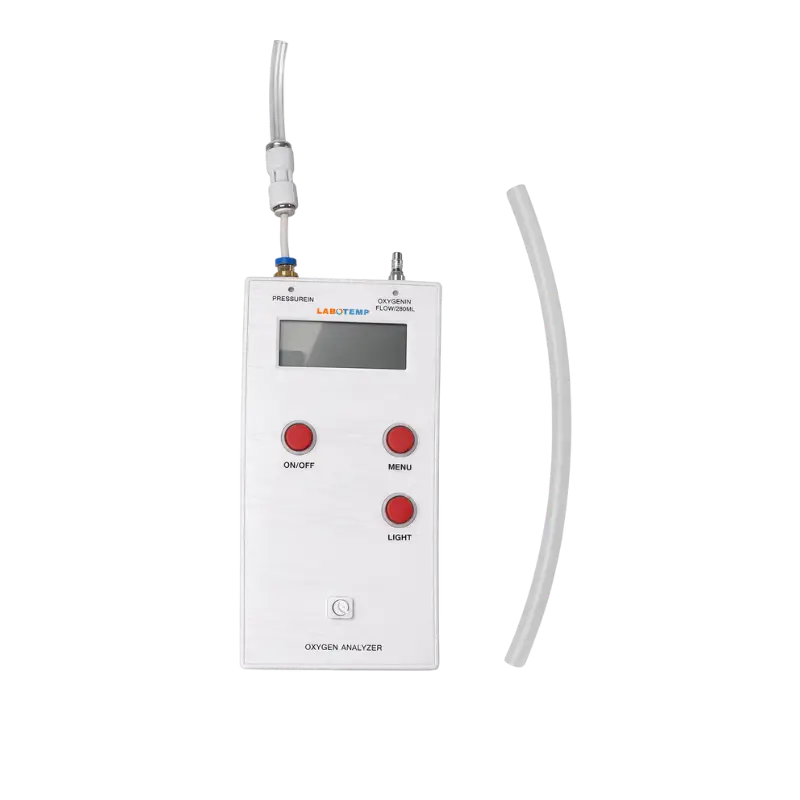

Labotemp 3in1 Ultrasonic Oxygen Analyzer LOA-02 is a professional oxygen analyzer designed for accurate measurement of oxygen concentration, flow rate, and pressure from medical and industrial oxygen sources. Developed for use at the outlet of oxygen concentrators and gas systems, this oxygen analyzer for oxygen concentrator uses advanced ultrasonic technology to deliver fast, stable, and repeatable results without chemical sensors, ensuring long-term reliability and low maintenance.
This portable oxygen analyzer operates as a complete oxygen gas analyzer, covering an oxygen concentration range of 21%–96% O₂ with ±1.5% accuracy, flow measurement from to 0-10/20 LPM, and pressure measurement up to 344 kPa with ±2 kPa accuracy. Clear LCD display, rechargeable battery operation, and intuitive controls make it suitable for hospitals, laboratories, oxygen plants, and service engineers. As a process-focused medical oxygen analyzer, it functions as an online oxygen analyzer for spot verification and servicing, not as a patient pulse oximeter. Backed by Labotemp as a trusted oxygen analyzer manufacturer, it ensures dependable oxygen quality assessment.
Why Choose Labotemp Oxygen Analyzer LOA-02?
✓True 3-in-1 Measurement: Oxygen concentration, flow, and pressure in one handheld device
✓Ultrasonic Sensor Technology: Stable accuracy with no sensor consumption or drift
✓Trusted Quality & Compliance: Engineered by an experienced oxygen analyzer manufacturer for professional use
|
Oxygen Concentration Range : 21% – 96% O₂ Oxygen Concentration Range |
21% – 96% O₂ |
|
Oxygen Accuracy : ±1.5% Oxygen Accuracy |
±1.5% |
|
Oxygen Resolution : 0.1% Oxygen Resolution |
0.1% |
|
Flow Range : 0 – 10 / 20 LPM Flow Range |
0 – 10 / 20 LPM |
|
Flow Accuracy : ±0.2 LPM Flow Accuracy |
±0.2 LPM |
|
Flow Resolution : 0.1 LPM Flow Resolution |
0.1 LPM |
|
Pressure Range : 0 – 344 kPa Pressure Range |
0 – 344 kPa |
|
Pressure Accuracy : ±2 kPa Pressure Accuracy |
±2 kPa |
|
Display Type : LCD Display Type |
LCD |
|
Battery : 3.6V, 3150 mAh (Rechargeable) Battery |
3.6V, 3150 mAh (Rechargeable) |
|
DC Charging Input : 12 V - 1 A DC Charging Input |
12 V - 1 A |
|
Operating Temperature : 5 – 55°C Operating Temperature |
5 – 55°C |
|
Length : 17.6 cm Length |
17.6 cm |
|
Length (Including Inlet Fittings) : 19.5 cm Length (Including Inlet Fittings) |
19.5 cm |
|
Width : 9.5 cm Width |
9.5 cm |
|
Thickness : 3.5 cm Thickness |
3.5 cm |
|
Gas Input : Gas of PSA oxygen generator Gas Input |
Gas of PSA oxygen generator |
|
Weight : 300 g Weight |
300 g |
|
Gross Weight : 0.5kg Gross Weight |
0.5kg |
|
Package Size : 176 × 96 × 35 mm Package Size |
176 × 96 × 35 mm |
Storage Temperature: −15°C to +60°C
Pressure Resolution: 1 kPa
Pressure Accuracy: ±1% FS
Package Size : 340x210x510mm
Width: 9.5 cm
Weight: 300 g
Thickness: 3.5 cm
Pressure Range: 0 – 344 kPa
