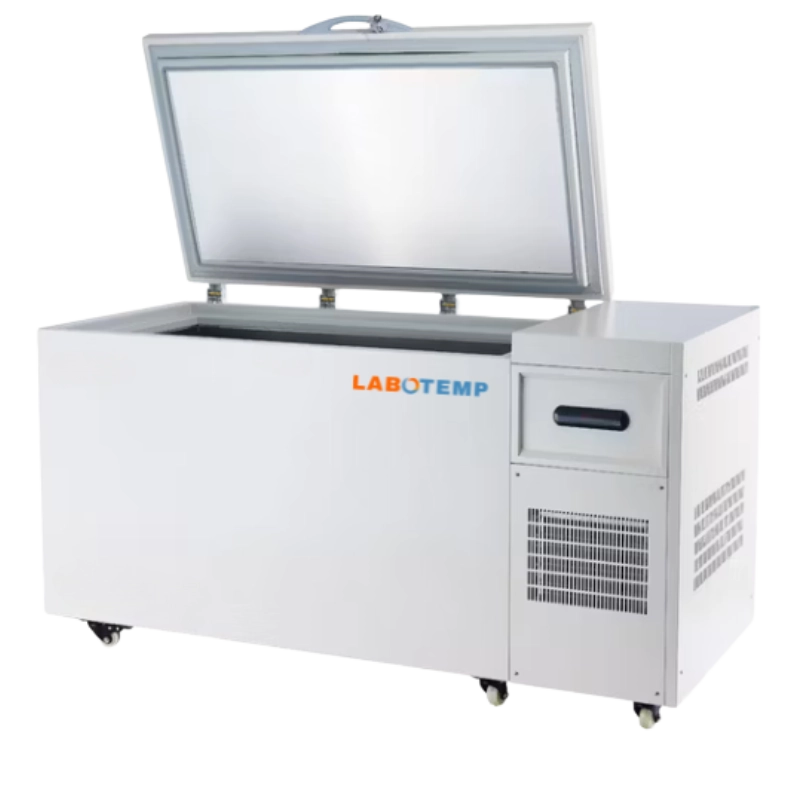

Labotemp Ultra Low Temperature Chest Freezer ULF-06 is a high-capacity ultra cold chest freezer designed for laboratories, hospitals, and research facilities requiring stable −40°C to −80°C storage. This reliable low temp chest freezer or ultra low chest freezer supports long-term preservation of vaccines, biological samples, enzymes, and reagents within a controlled ultra low freezer temperature range.

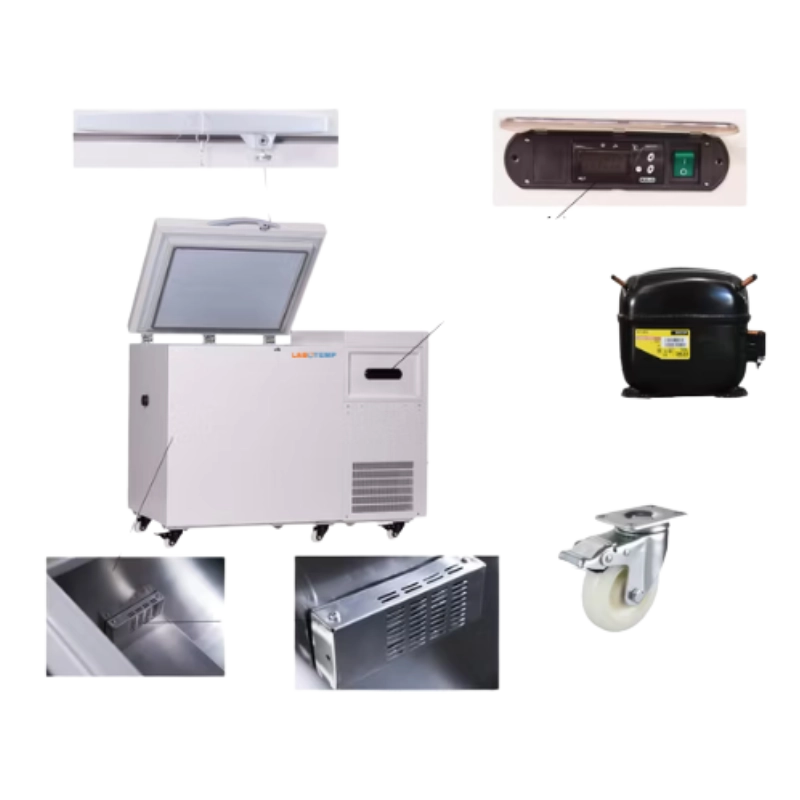

Engineered for efficient daily operation, the ULF-06 features a SECOP (Danfoss) compressor, German EBM condenser fan, and eco-friendly fluorine-free refrigerant for uniform cooling and low energy use. Its 620 L capacity, 100 mm insulation, stainless steel interior, powder-coated exterior, digital display, PTC probe, and four smooth casters enhance durability, hygiene, and mobility. With single-compressor refrigeration and electronic monitoring, this ultra low temperature laboratory deep freezer or ultra low temperature laboratory freezer ensures consistent ultra cold freezer performance.
Why Choose Labotemp ULT Freezer ULF-06?
✓ Stable cooling: Maintains −40°C to −80°C for reliable storage.
✓ Durable design: Stainless interior, thick insulation, corrosion-resistant exterior.
✓ Safe operation: Audio-visual alarms, mobility casters, precise electronic control.
|
Model : ULF-06 Model |
ULF-06 |
|
Capacity : 620L Capacity |
620L |
|
Temperature range : -40°C to -80°C, adjustable Temperature range |
-40°C to -80°C, adjustable |
|
Compressor : (SECOP)DANFOSS Compressor |
(SECOP)DANFOSS |
|
Type : Horizontal Type |
Horizontal |
|
Voltage : 220V/50Hz Voltage |
220V/50Hz |
|
Alarm : Audible and Visual alarm Alarm |
Audible and Visual alarm |
|
Input Power : 570W Input Power |
570W |
|
Power consumption : 10.5kw.h/24h Power consumption |
10.5kw.h/24h |
|
Protect Grade : I/B Protect Grade |
I/B |
|
Climate type : N Climate type |
N |
|
Refrigerant : Fluorine free environmental protection refrigerant Refrigerant |
Fluorine free environmental protection refrigerant |
|
Refrigeration system : Double compressor refrigeration system Refrigeration system |
Double compressor refrigeration system |
|
Temperature control : Electronic temperature control Temperature control |
Electronic temperature control |
|
Temperature display : Data display Temperature display |
Data display |
|
Probe : PTC Probe |
PTC |
|
Condenser fans : Germany brand EBM Condenser fans |
Germany brand EBM |
|
Exterior Material : Powder coated steel plate Exterior Material |
Powder coated steel plate |
|
Interior Material : Stainless Steel 304 Interior Material |
Stainless Steel 304 |
|
Liner : Stainless Steel 304 Liner |
Stainless Steel 304 |
|
Thickness of foaming layer : 100mm Thickness of foaming layer |
100mm |
|
Balance hole : 1(Diameter 18mm) Balance hole |
1(Diameter 18mm) |
|
Castor : 4 Castor |
4 |
|
External dimensions : 2110*895*1005mm External dimensions |
2110*895*1005mm |
|
Internal dimensions : 1480*600*685mm Internal dimensions |
1480*600*685mm |
|
Package size : 2180*965*1175mm Package size |
2180*965*1175mm |
|
Gross weight : 229 kg Gross weight |
229 kg |
|
Net weight : 174 kg Net weight |
174 kg |
