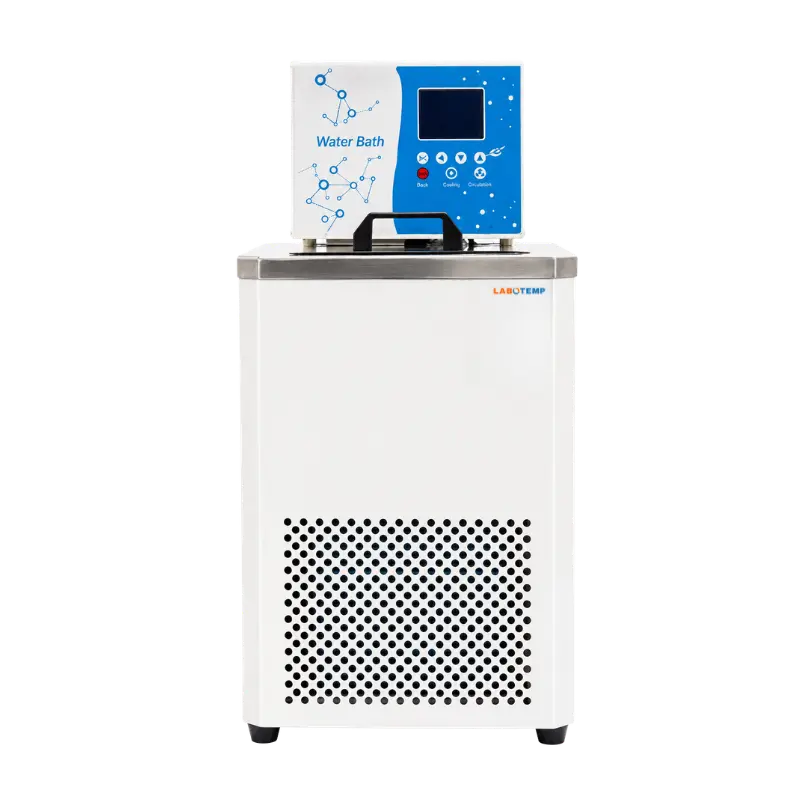

Low Temperature Refrigerated Circulating Bath LCB-102

Low Temperature Refrigerated Circulating Bath

Low Temperature Refrigerated Circulating Bath LCB-102

Name: Low Temperature Refrigerated Circulating Bath LCB-102
Brand: Labotemp
SKU: LCB-102
Price: 3664.00 USD
Availability: InStock
Rating: 4.9 (760 reviews)

Labotemp Low Temperature Refrigerated Circulating Bath LCB-102 is a precision refrigerated circulating bath designed to provide accurate temperature control for laboratory heating and cooling applications. Featuring a 15 L stainless steel tank, temperature range of -10°C to 100°C, 0.01°C resolution, and ±0.05°C temperature stability, this advanced thermostatic water bath ensures highly consistent thermal conditions for sample preparation, chemical reactions, material testing, and instrument calibration. Equipped with a high-performance compressor, hidden stainless steel cooling coil, PID digital controller, PT100 sensor, and an integrated circulation pump delivering 6 L/min flow, it offers rapid temperature recovery, efficient heat transfer, and uniform bath temperature. The corrosion-resistant stainless steel chamber and concealed coil maximize usable workspace while ensuring long service life.

Designed for continuous laboratory operation, the lab water bath features intelligent over-temperature protection, automatic temperature correction, timing functions, and a drain valve for convenient maintenance. Its digital PID control system delivers accurate temperature regulation, while the durable anti-corrosion housing, built-in compressor cooling, and anti-slip base ensure stable, energy-efficient, and reliable performance. Ideal for pharmaceutical, chemical, biotechnology, academic, and industrial laboratories, the LCB-102 supports external circulation for reactors, condensers, analytical instruments, and other temperature-sensitive equipment requiring dependable thermal control.

Why Choose Labotemp Low Temperature Refrigerated Circulating Bath LCB-102?
✓ Wide Temperature Control: Stable operation from -10°C to 100°C for heating and cooling applications.
✓ High Precision Performance: ±0.05°C stability with PT100 sensor and intelligent PID controller.
✓ Efficient Refrigeration: Built-in compressor with concealed cooling coil maximizes bath space and cooling efficiency.

$3664

Datasheet

Tank Volume : 15 L Tank Volume	15 L
Temperature Range : -10°C to 100°C Temperature Range	-10°C to 100°C
Power Supply : 220V 50Hz Power Supply	220V 50Hz
Temperature Resolution : 0.01°C Temperature Resolution	0.01°C
Temperature Stability (Volatility) : ±0.05°C Temperature Stability (Volatility)	±0.05°C
Power : 2.2 kW Power	2.2 kW
Tank Opening (Slot Opening) : 250 × 160 mm Tank Opening (Slot Opening)	250 × 160 mm
Tank Groove Depth : 200 mm Tank Groove Depth	200 mm
Lift (Head) : 1.4 m Lift (Head)	1.4 m
Pump Flow Rate : 6 L/min Pump Flow Rate	6 L/min
Overall Dimensions : 320 × 370 × 765mm Overall Dimensions	320 × 370 × 765mm
Net weight : 40kg Net weight	40kg
Gross Weight : 45kg Gross Weight	45kg
Packing size : 540x470x980mm Packing size	540x470x980mm

Built-in Compressor ➤ Built-in Compressor
Hidden cooling coil design maximizes usable bath space and improves temperature uniformity. ➤ Hidden cooling coil design maximizes usable bath space and improves temperature uniformity.
Microprocessor-based PID controller enables precise and stable temperature regulation. ➤ Microprocessor-based PID controller enables precise and stable temperature regulation.
High-quality PT100 temperature sensor provides fast and accurate temperature sensing. ➤ High-quality PT100 temperature sensor provides fast and accurate temperature sensing.
Built-in refrigeration system ensures rapid cooling and reliable continuous operation. ➤ Built-in refrigeration system ensures rapid cooling and reliable continuous operation.
Integrated circulation pump with 6 L/min flow rate supports uniform heat transfer and external circulation. ➤ Integrated circulation pump with 6 L/min flow rate supports uniform heat transfer and external circulation.
Equipped with over-temperature protection and fault alarm for safe operation. ➤ Equipped with over-temperature protection and fault alarm for safe operation.
Drain valve allows quick and convenient liquid drainage during maintenance. ➤ Drain valve allows quick and convenient liquid drainage during maintenance.
Compact, anti-corrosion construction with an anti-slip base offers stable and long-lasting performance. ➤ Compact, anti-corrosion construction with an anti-slip base offers stable and long-lasting performance.

Ideal for precision temperature control in pharmaceutical, chemical, biotechnology, and research laboratories for sample conditioning, chemical synthesis, reaction studies, material testing, viscosity and calibration procedures ➤ Ideal for precision temperature control in pharmaceutical, chemical, biotechnology, and research laboratories for sample conditioning, chemical synthesis, reaction studies, material testing, viscosity and calibration procedures
Supports external circulation with reactors, condensers, analytical instruments, and other temperature-sensitive equipment requiring stable temperatures from -10°C to 100°C ➤ Supports external circulation with reactors, condensers, analytical instruments, and other temperature-sensitive equipment requiring stable temperatures from -10°C to 100°C
