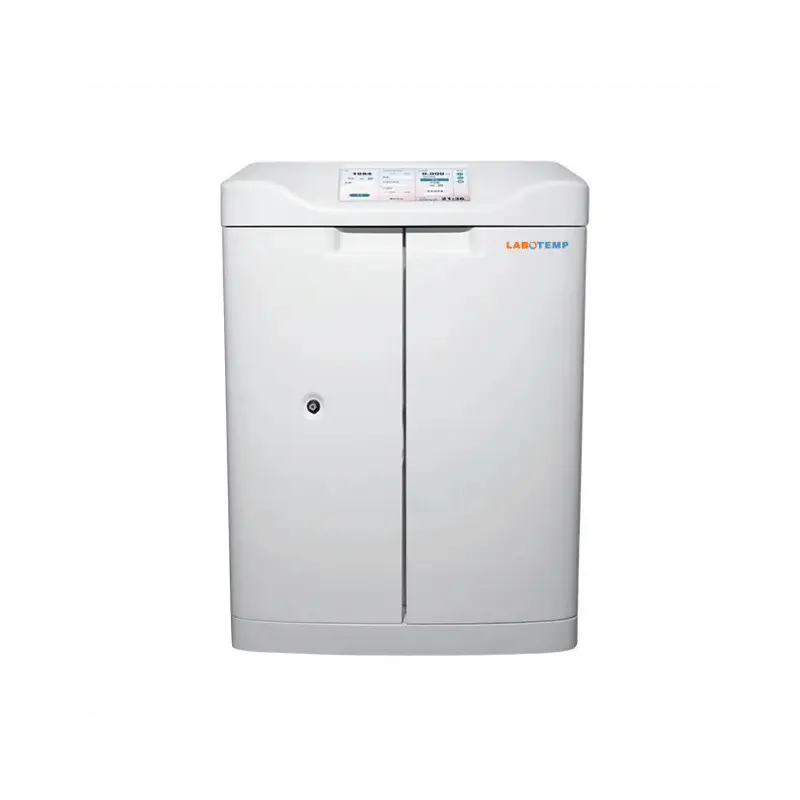

Labotemp Ion Chromatograph LIO 101 provides an integrated analytical platform for the separation and detection of inorganic ions in water, environmental, industrial, food, pharmaceutical, and research samples. The system combines a high pressure low pulse dual plunger pump, injection system, ion chromatography columns, electrolytic suppressor, column temperature oven, and conductivity detector for reliable ion analysis.
Designed as versatile Ion Chromatography Equipment, LIO 101 supports both suppressed and non suppressed conductivity detection and can be configured for different analytical requirements. Its touchscreen computer control, automatic temperature management, software based analysis, real time monitoring, and automatic flow path maintenance support convenient operation and consistent analytical workflows. The system can be used for the determination of common cations and anions including Li⁺, Na⁺, NH₄⁺, K⁺, Mg²⁺, Ca²⁺, F⁻, Cl⁻, Br⁻, NO₂⁻, NO₃⁻, PO₄³⁻, SO₃²⁻, and SO₄²⁻.
Why Choose Labotemp Ion Chromatograph LIO 101?
✓ Integrated Ion Analysis System: Combines pumping, injection, separation, suppression, temperature control, detection, and data processing in one analytical platform.
✓ Suppressed Conductivity Detection: Electrolytic suppression supports conductivity based ion detection with reduced background interference.
✓ Touchscreen Computer Control: Provides instrument monitoring, parameter adjustment, real time data display, automated analysis, and data processing through an integrated control system.
| Pump and Flow Control | |
|
Pump Type : High pressure low pulse dual plunger series pump Pump Type |
High pressure low pulse dual plunger series pump |
|
Pump Head Material : All PEEK Pump Head Material |
All PEEK |
|
Pressure Range : 0 to 35 MPa Pressure Range |
0 to 35 MPa |
|
Flow Rate Setting Range : 0.001 to 10.000 mL/min Flow Rate Setting Range |
0.001 to 10.000 mL/min |
|
Flow Rate Setting Error : 0.1% at 1.0 mL/min Flow Rate Setting Error |
0.1% at 1.0 mL/min |
|
Flow Rate Stability Error : 0.1% at 1.0 mL/min Flow Rate Stability Error |
0.1% at 1.0 mL/min |
| Suppression and Column Temperature | |
|
Suppressor Type : Electrochemical automatic regeneration solid phase suppressor Suppressor Type |
Electrochemical automatic regeneration solid phase suppressor |
|
Dynamic Inhibition Capacity : 100 μeq/min Dynamic Inhibition Capacity |
100 μeq/min |
|
Inhibition Background : 0.6 μS/cm Inhibition Background |
0.6 μS/cm |
|
Inhibitor Background Noise : 6 nS/cm Inhibitor Background Noise |
6 nS/cm |
|
Suppressor Dead Volume : 50 μL Suppressor Dead Volume |
50 μL |
|
Current Range : 0 to 300 mA Current Range |
0 to 300 mA |
|
Current Setting Increment : 0.1 mA Current Setting Increment |
0.1 mA |
|
Column Oven Temperature Range : Room temperature +5°C to 85°C Column Oven Temperature Range |
Room temperature +5°C to 85°C |
|
Temperature Setting Error : ±0.271°C Temperature Setting Error |
±0.271°C |
|
Temperature Control Stability : ±0.029°C/h Temperature Control Stability |
±0.029°C/h |
| Conductivity Detection | |
|
Detector Type : Digital bipolar pulse conductivity detector Detector Type |
Digital bipolar pulse conductivity detector |
|
Conductivity Detection Range : 0 to 15,000 μS/cm Conductivity Detection Range |
0 to 15,000 μS/cm |
|
Detection Cell Volume : ≤0.3 μL Detection Cell Volume |
≤0.3 μL |
|
Baseline Noise : ≤0.1% Baseline Noise |
≤0.1% |
|
Baseline Drift : ≤0.8% FS/30 min Baseline Drift |
≤0.8% FS/30 min |
|
Qualitative Repeatability : RSD <0.21% Qualitative Repeatability |
RSD <0.21% |
|
Detection Limit for Chloride : ≤0.0005 μg/mL Detection Limit for Chloride |
≤0.0005 μg/mL |
|
Compatible Column Lengths : 250 mm and 150 mm anion exchange chromatography columns Compatible Column Lengths |
250 mm and 150 mm anion exchange chromatography columns |
|
Linear Range : ≥10² Linear Range |
≥10² |
|
Linear Correlation Coefficient : ≥0.999 Linear Correlation Coefficient |
≥0.999 |
|
Retention Time Repeatability Error : ≤1.0% for NO₃⁻, SO₄²⁻, Na⁺, and Ca²⁺ Retention Time Repeatability Error |
≤1.0% for NO₃⁻, SO₄²⁻, Na⁺, and Ca²⁺ |
| System Configuration | |
|
Power Supply : 220V, 50/60Hz or 110V, 60Hz Power Supply |
220V, 50/60Hz or 110V, 60Hz |
|
Detection Modes : Suppressed and non suppressed conductivity detection Detection Modes |
Suppressed and non suppressed conductivity detection |
|
Control Interface : Computer interface and touchscreen Control Interface |
Computer interface and touchscreen |
|
Display : 7.0 inch touchscreen Display |
7.0 inch touchscreen |
|
Data Acquisition : 24 bit A/D acquisition Data Acquisition |
24 bit A/D acquisition |
|
Flow Path Material : All PEEK flow path Flow Path Material |
All PEEK flow path |
|
Column Oven : Built in Column Oven |
Built in |
|
Data Processing : PC based chromatography data software Data Processing |
PC based chromatography data software |
|
Remote Control : Supported through PC Remote Control |
Supported through PC |
|
Automatic Analysis : Supported Automatic Analysis |
Supported |
| Physical Details | |
|
Net Weight : 45 kg Net Weight |
45 kg |
|
Gross Weight : 48 kg Gross Weight |
48 kg |
|
Package Dimensions : 700 × 710 × 750 mm Package Dimensions |
700 × 710 × 750 mm |
