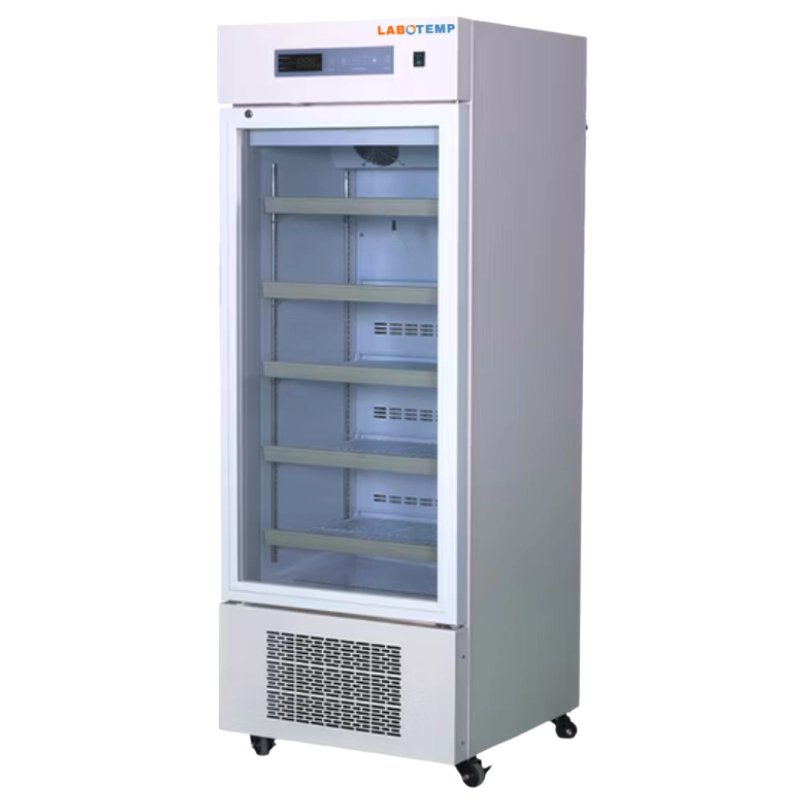

Labotemp PHR-03 is a 400L pharmaceutical and vaccine refrigerator designed for precise 2–8°C storage in hospitals, laboratories, and pharmacies. It provides consistent, uniform cooling for vaccines, reagents, and medical supplies. With a digital temperature display, stainless-steel chamber, and advanced air-cooling system, it offers accurate monitoring, durability, and energy-efficient performance for temperature-sensitive applications.
Why Choose Labotemp Pharmaceutical & Vaccine Refrigerator PHR-03?

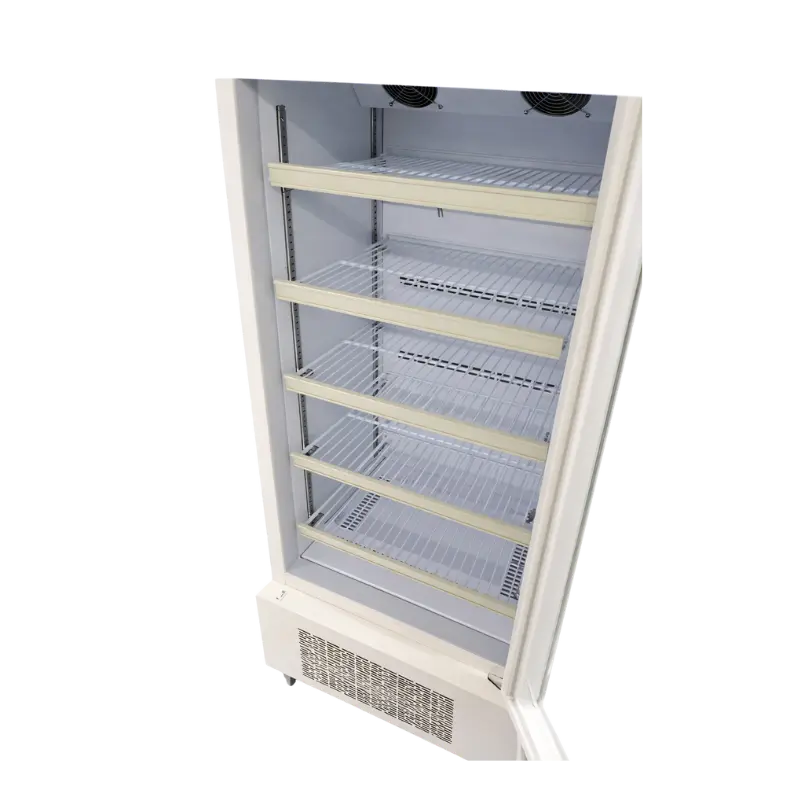

✓Superior chamber engineering 400L stainless-steel interior ensures hygiene, easy cleaning, and long-term corrosion resistance.
✓Secure and user-friendly lockable door, digital display, and simple controls ensure safe, easy operation in medical settings.
✓Safety-first design sound and light alarms warn instantly of temperature deviations or door-ajar events to protect stored materials.
✓ Built for demanding use 304 stainless-steel interior and reinforced exterior provide lasting durability and resistance to wear.
|
Model : PHR-03 Model |
PHR-03 |
|
Capacity : 400/14.12 (L/cu.ft.) Capacity |
400/14.12 (L/cu.ft.) |
|
Temperature range : 2-8°C , adjustable Temperature range |
2-8°C , adjustable |
|
Compressor : Huayi compressor Compressor |
Huayi compressor |
|
Voltage : 220V 50Hz Voltage |
220V 50Hz |
|
Input power : 430W Input power |
430W |
|
Cooling type : Air cooling Cooling type |
Air cooling |
|
Thermostat : Electronic Thermostat |
Electronic |
|
Display : Digital display Display |
Digital display |
|
Exterior size : 680*745*1870 mm Exterior size |
680*745*1870 mm |
|
Inner size : 560*610*1380 mm Inner size |
560*610*1380 mm |
|
Packaging Size : 590*670*1470mm Packaging Size |
590*670*1470mm |
|
Net weight : 115kg Net weight |
115kg |
|
Gross Weight : 155kg Gross Weight |
155kg |
|
Exterior material : Galvanized sheet sprayed Exterior material |
Galvanized sheet sprayed |
|
Inner material : 304 stainless steel Inner material |
304 stainless steel |
|
Lock key : Yes Lock key |
Yes |
|
Control system : Microproceesor control Control system |
Microproceesor control |
|
Ambient temperature : 16-32°C Ambient temperature |
16-32°C |
|
Environmental Humidity : 20-80% Environmental Humidity |
20-80% |
|
Alarm : Audible and visual alarm for High and lowtemperature, Door Ajar Alarm |
Audible and visual alarm for High and lowtemperature, Door Ajar |
Voltage : 220 V 50 Hz
Thermostat : Electronic
Temperature range: +2°C to +8°C
Temperature adjust unit : 0.1°C
Voltage : 220V, 110V 50/60Hz
Thermostat : Electronic
Temperature range : 2~8°C
Temperature adjust unit : 0.1°C
Voltage : 220V 50Hz
Thermostat : Electronic
Temperature range : 2~8ºC, adjustable
Package Size: 1160x745x2215mm
Voltage : 220V 50Hz
Thermostat : Electronic
Temperature range : 2-8°C , adjustable
Packaging Size : 590*670*1470mm
Voltage : 220V 50Hz
Thermostat : Electronic
Temperature range : 2 - 8 ºC, adjustable
Refrigerant : R134A/R404A
Voltage : 220V 50Hz/110V 60Hz
Thermostat : Electronic
Temperature range : 2-8°C, adjustable
Package Size: 1860x805x2005mm
Voltage: 220V / 50Hz
Temperature Range: 1~8°C
Remote Alarm: Yes
Refrigeration System: Fan cooling
Voltage / Frequency: 220V/110V, 50/60 Hz
Temperature Range: 2 ~ 8 °C
Shipping Weight: 280 kg
Shipping Volume: 3.48 CBM
Voltage / Frequency: 220V/110V, 50/60 Hz
Test Hole: 1
Temperature Range: 2 ~ 8 °C
Shipping Weight: 105 kg
Voltage / Frequency: 220V / 50Hz
Temperature Range: 2–8 °C
Temperature Controller: Microprocessor Control
Refrigerant: R600a, CFC Free
Voltage / Frequency: 220V / 50Hz
Temperature Range (°C): 2 ~ 8°C
Temperature Controller: Microprocessor
Refrigerant: R600a CFC Free
Volume: 345 L
Voltage: 220V 50Hz/60Hz
Temperature Setting: 5°C ±3°C
Temperature Range: 2–8°C
Temperature Range: 2 ~ 8°C
Sound Emission: 55 dB
Shipping Size (W × D × H): 1940 × 880 × 2035 mm
Shelves Quantity: 12 Shelves
Test Hole (Qty / Diameter): 1 / 25 mm
Temperature Range: 2 ~ 8°C
Sound Emission: 52 dB
Shipping Size (W × D × H): 1280 × 670 × 1950 mm
Voltage and Frequency: 220V±10%, 50/60Hz
Test Hole (pcs): 1
Temperature Range: 2 ~ 8 °C
Sensor Error Alarm: Yes
Temperature: 2 ~ 8°C
Refrigeration System: Fan cooling
Rated Power: 490W
Product Size : 1200 × 650 × 1890mm
Voltage: 220V ±10%, 50/60Hz
Test Hole (pcs): 1
Temperature Range: 2 ~ 8 °C
Sensor Error Alarm: Yes
Voltage: 220V / 50Hz
Temperature Range: 2 ~ 8°C
Temperature Controller: Microprocessor
Refrigerant: R600a, CFC Free
Voltage: 220V / 50Hz
Temperature Range: 2 ~ 10°C
Temperature Controller: Microprocessor
Shelves: 5 (Up to 4 additional shelves available)
Test Hole (Qty / Φ mm): 1 / 25
Temperature Range: 2~8°C
Sound Emission: 53 dB
Shipping Size (W×D×H): 1280 × 900 × 1950 mm
Temperature Sensor: NTC
Temperature Range: 2°C to 8°C
Temperature Controller: Microprocessor Controller
Sound Emission: 50 dB
Temperature Range: 2°C to 8°C
Temperature Controller: Electronic
Shelf Quantity: 7
Sensor: NTC
Voltage / Frequency: 220 V / 50 Hz
Temperature Range: +2°C to +8°C
Temperature Display Accuracy: 0.1°C
Temperature Control: Precise microprocessor-based control with 0.1°C resolution
