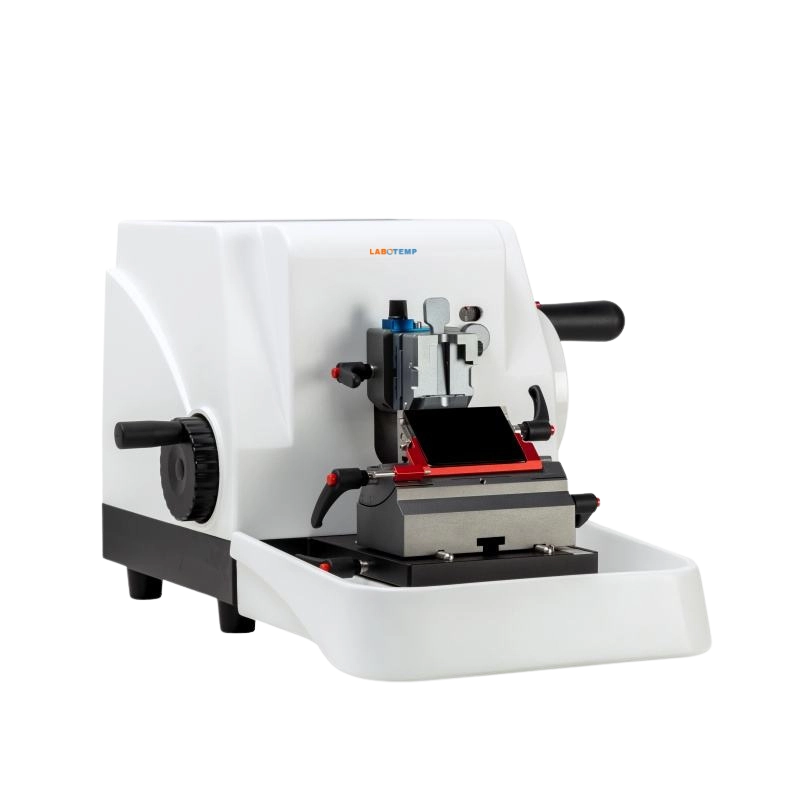

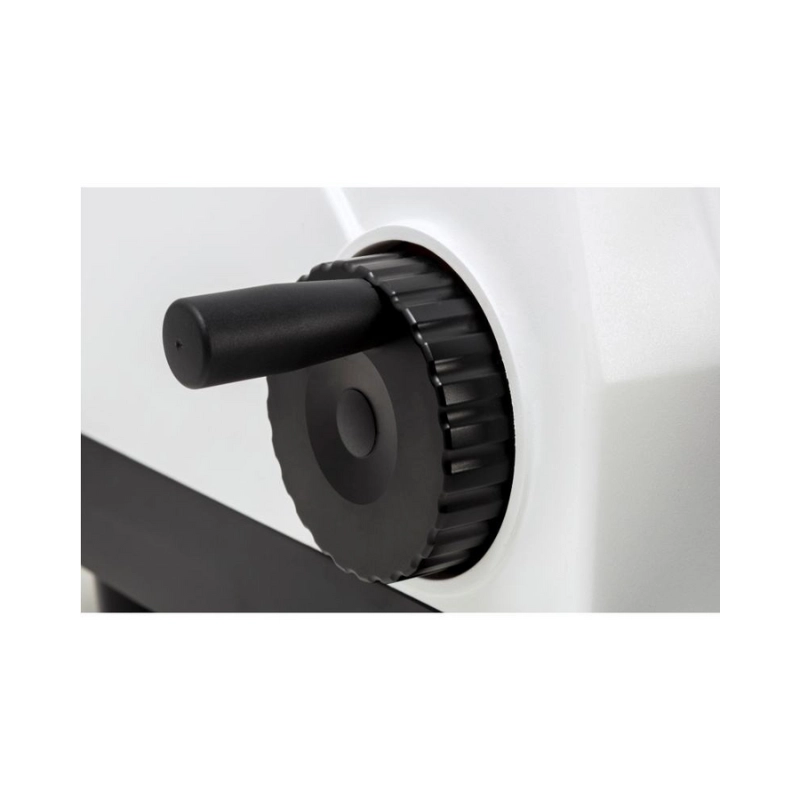

Labotemp Rotary Microtome ROM-03 is a manual rotary microtome engineered for precise tissue sectioning in histopathology and diagnostic laboratories. This robust microtome machine delivers consistent thin sections with an adjustable cut thickness range of 0–60 μm and a minimum section setting of 1 μm, supporting dependable serial sections for routine histology and light microscopy. The stable handwheel-driven rotary mechanism ensures controlled, smooth cutting for accurate sectioning.

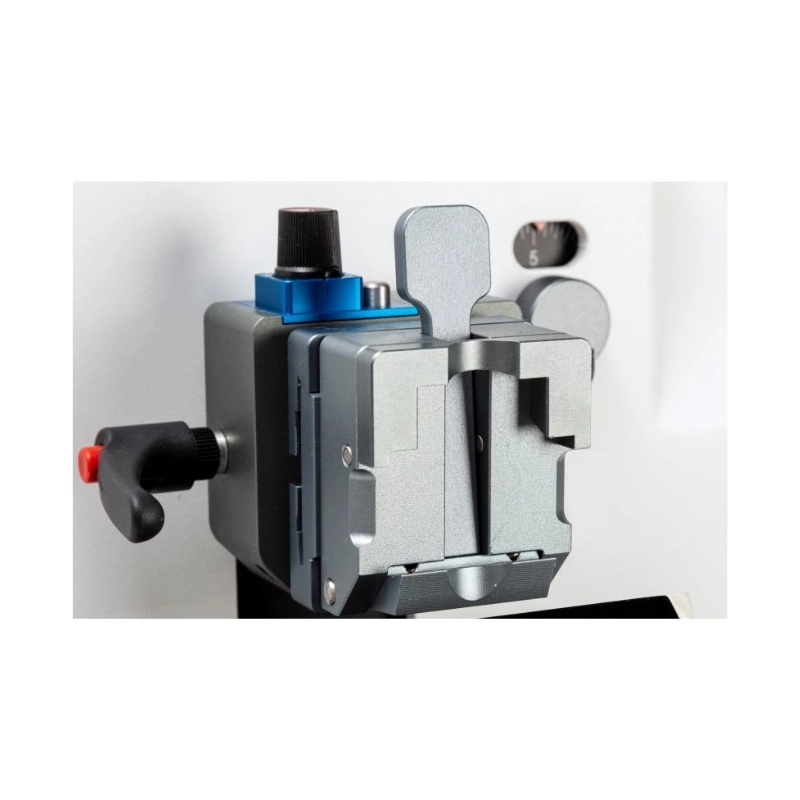

The ROM-03 supports precise specimen handling with 28 mm horizontal feed and 60 mm vertical feed, allowing controlled trimming and sectioning of paraffin-embedded tissue. The specimen orientation system allows 360° rotation and adjustable section base angles, improving positioning accuracy. Designed for durability, the ROM-03 provides reliable performance for laboratories requiring consistent quality sections without automation.
Why choose Labotemp Rotary Microtome ROM-03?
✓ Accurate thickness control: Adjustable 0–60 μm range with 1 μm minimum setting
✓ Precise specimen handling: 28 mm horizontal and 60 mm vertical feed
✓ Flexible orientation: 360° specimen rotation with adjustable base angle
✓ Reliable daily use: Manual rotary design with optional specimen retraction
|
Section thickness setting range : 0–60 µm Section thickness setting range |
0–60 µm |
|
Trimming thickness setting range : 0–60 µm (Adjustable) Trimming thickness setting range |
0–60 µm (Adjustable) |
|
Minimum setting of sectioning thickness : 1 µm Minimum setting of sectioning thickness |
1 µm |
|
Precision and error : ±1% Precision and error |
±1% |
|
Section base angle range : 0°–15° (Adjustable) Section base angle range |
0°–15° (Adjustable) |
|
Maximum specimen size : 60 mm ×50 mm Maximum specimen size |
60 mm ×50 mm |
|
Specimen horizontal feeding : 28 mm Specimen horizontal feeding |
28 mm |
|
Specimen vertical feeding : 60 mm Specimen vertical feeding |
60 mm |
|
Sample rotation : 360° Sample rotation |
360° |
|
Specimen orientation system : At any angle within 360° Specimen orientation system |
At any angle within 360° |
|
Specimen orientation system (axis) : XY-8° Specimen orientation system (axis) |
XY-8° |
|
Size (W×D×H) : 555×450×320 Size (W×D×H) |
555×450×320 |
|
Specimen clamp : Paraffin block clamp or cassette clamp (optional) Specimen clamp |
Paraffin block clamp or cassette clamp (optional) |
|
Blade holder : High or low profile blade holder (optional) Blade holder |
High or low profile blade holder (optional) |
|
Specimen retraction function : YES (5 µm or custom-made) Specimen retraction function |
YES (5 µm or custom-made) |
|
Net weight : 30 kg Net weight |
30 kg |
|
Gross weight : 45 kg Gross weight |
45 kg |
|
Package Size : 620x520x410mm Package Size |
620x520x410mm |
