Labotemp Rotary Microtome ROM-01 is a full-automatic rotary microtome designed for precise tissue sectioning in histopathology, diagnostic, and research laboratories. This advanced microtome machine produces consistent thin sections with an adjustable cut thickness from 0.5 μm to 100 μm, supporting reliable serial sectioning for routine histology and microscopy. The motorized specimen feed with high-accuracy control ensures smooth operation and repeatable results during sample preparation.

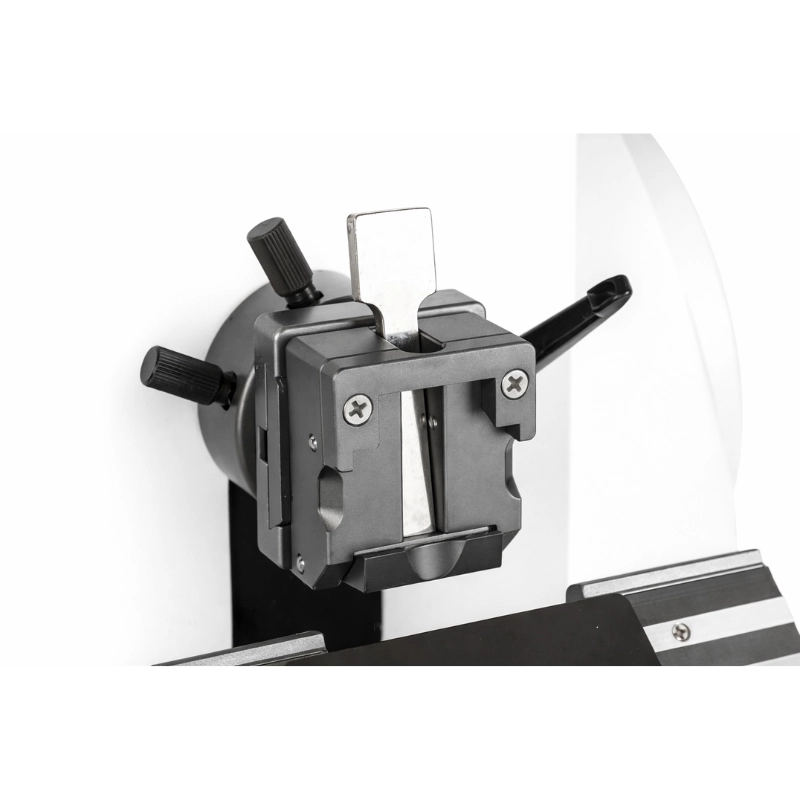

A stable microtome blade holder supports standard disposable microtome blades and steel knives, maintaining uniform contact at the cutting edge for clean sectioning. Automated specimen retraction, programmable cutting speeds, and remote control operation improve workflow efficiency and operator comfort. Designed for laboratories requiring dependable quality sections, the ROM-01 combines automation, precision, and stability for daily microtomy.
Why choose Labotemp Rotary Microtome ROM-01?
✓Uniform section thickness: Full automation supports cuts up to 100 μm
✓Stable blade performance: Improved alignment reduces section artifacts
✓Efficient workflow: Automated trimming and sectioning save time
✓User-friendly operation: Motorized control reduces operator fatigue
|
Section thickness range : 0.5–100 µm Section thickness range |
0.5–100 µm |
|
Section thickness setting : 0.5–2 µm in 0.5 µm increment<br> 2–10 µm in 1 µm increment<br> 10–20 µm in 2 µm increment<br> 20–50 µm in 5 µm increment<br> 50–100 µm in 10 µm increment Section thickness setting |
0.5–2 µm in 0.5 µm increment 2–10 µm in 1 µm increment 10–20 µm in 2 µm increment 20–50 µm in 5 µm increment 50–100 µm in 10 µm increment |
|
Trimming section thickness range : 5–500 µm (600 / 999 µm is optional customization) Trimming section thickness range |
5–500 µm (600 / 999 µm is optional customization) |
|
Horizontal specimen stroke : 20 mm (28 mm is optional customization) Horizontal specimen stroke |
20 mm (28 mm is optional customization) |
|
Vertical specimen stroke : 60 mm (70 mm is optional customization) Vertical specimen stroke |
60 mm (70 mm is optional customization) |
|
Sample orientation : 8° along the X-Y axis, rotate 360° Sample orientation |
8° along the X-Y axis, rotate 360° |
|
Precision error : ± 5% Precision error |
± 5% |
|
Maximum section size : 50×45 mm Maximum section size |
50×45 mm |
|
Voltage and power : 220V / 50Hz or 110V / 60Hz Voltage and power |
220V / 50Hz or 110V / 60Hz |
|
Dimensions incl. tray (L/W/H) : 500×320×500mm Dimensions incl. tray (L/W/H) |
500×320×500mm |
|
Cutting speed : 0–300 mm/s (0–400 or 500 mm/s is optional customization) Cutting speed |
0–300 mm/s (0–400 or 500 mm/s is optional customization) |
|
Specimen feed speed : 1250 µm/s (click), 2000 µm/s (keep pressing), forward and reverse Specimen feed speed |
1250 µm/s (click), 2000 µm/s (keep pressing), forward and reverse |
|
Net weight : 35 kg Net weight |
35 kg |
|
Gross weight : 49 kg Gross weight |
49 kg |
|
Package Size : 700x490x480 mm Package Size |
700x490x480 mm |
Voltage and power: 220V / 50Hz or 110V / 60Hz
Vertical specimen stroke: 60 mm (70 mm is optional customization)
Trimming section thickness range: 5–500 µm (600 / 999 µm is optional customization)
Specimen feed speed: 1250 µm/s (click), 2000 µm/s (keep pressing), forward and reverse
Voltage and frequency: AC 220 V ±10%, 50 Hz / 110V 60Hz (Standard)
Trimming thickness setting range: 1–600 µm
1–10 µm increment 1 µm
10–20 µm increment 2 µm
20–50 µm increment 5 µm
50–150 µm increment 10 µm
50–600 µm increment 50 µm
Specimen vertical feed: 70 mm
Specimen retraction setting range: 0–50 µm (0 is off); 10–15 µm, 5–50 µm (optional)
Trimming thickness setting range: 0–60 µm (Adjustable)
Specimen vertical feeding: 60 mm
Specimen retraction function: YES (5 µm or custom-made)
Specimen orientation system (axis): XY-8°
Vertical specimen stroke: 52 mm
Section thickness setting: 0–2 µm in 0.5 µm increments
2–10 µm in 1 µm increments
10–20 µm in 2 µm increments
20–60 µm in 5 µm increments
Section thickness range: 0–60 µm
Sample orientation: 8° along the X-Y axis, rotatable 360°
Trimming thickness setting range: 0–60 µm
Specimen vertical feeding: 70 mm
Specimen retraction: 90 µm (optional)
Specimen orientation system: XY-8°
Voltage and frequency: AC220 V / 50 Hz
Trimming thickness setting range: 0 to 999 µm increment 0.1 µm
Specimen vertical feeding: 60 mm
Specimen retraction: 0–100 µm (can close)
Vertical specimen stroke: 60 mm (70 mm optional)
Trimming section thickness range: 5 to 500 µm (600 µm optional)
5 to 10 µm in 10 µm increment
10 to 100 µm in 10 µm increment
100 to 200 µm in 20 µm increment
200 to 500 µm in 50 µm increment
Specimen retraction: 12 µm (0–220 µm customization available)
Specimen orientation system: XY-8°
