Hydrothermal Reactor Autoclave HRA-01

Name: Hydrothermal Reactor Autoclave HRA-01
Brand: Labotemp
SKU: HRA-01
Price: 2495.00 USD
Availability: InStock
Rating: 4.7 (981 reviews)

Labotemp Hydrothermal Reactor Autoclave HRA-01 is a compact, Teflon-lined hydrothermal autoclave designed for reliable small-dose synthesis, high-pressure digestion and rapid sample pretreatment. Ideal as a hydrothermal reactor for petrochemical, material science, biomedical and environmental labs, the HRA-01 combines a 25 mL PTFE (Teflon) lining with a 316 stainless steel kettle body to tolerate strong acid/alkali environments while preventing contamination.

This hydrothermal autoclave reactor features a 33 mm inner diameter, 45 mm outer diameter, 6 mm wall thickness, durable 8 mm gaskets, 35 mm lid height and total height 92 mm; weight ≈0.95 kg. The PTFE lining (4.5 mm thickness, 66 mm lining height) ensures corrosion resistance and nondestructive digestion of heavy metals, pesticide residues, rare earths, silt and organic matrices. Labotemp, a trusted autoclave manufacturer and leading hydrothermal autoclave suppliers, delivering precision-engineered Teflon-lined reactor solutions.

Why choose Labotemp Hydrothermal Reactor Autoclave HRA-01?
✓ ISO 13485 & CE certified: Proven compliance and quality control
✓ Corrosion resistance: 316 stainless steel with PTFE lining for acid/alkali
✓ Lab efficiency: 25 mL capacity, lightweight and compact for small-dose synthesis

$2495

Datasheet User Manual

General Specifications
Capacity : 25 ml Capacity	25 ml
Kettle Body Material : 316 Stainless Steel Kettle Body Material	316 Stainless Steel
Sterilization Parameters
Maximum Temperature : 250°C Maximum Temperature	250°C
Maximum Pressure : 3.0 MPa Maximum Pressure	3.0 MPa
Physical Dimensions
Kettle Lid Height : 35 mm Kettle Lid Height	35 mm
Kettle Body Height : 73 mm Kettle Body Height	73 mm
Kettle Body Diameter : 45 mm Kettle Body Diameter	45 mm
Kettle Body Inner Diameter : 33 mm Kettle Body Inner Diameter	33 mm
Kettle Body Wall Thickness : 6 mm Kettle Body Wall Thickness	6 mm
Overall Height : 92 mm Overall Height	92 mm
Inner Diameter : 33 mm Inner Diameter	33 mm
Length of Grip Bar : 8 × 120 mm Length of Grip Bar	8 × 120 mm
Lined With High : 66 mm Lined With High	66 mm
Lining Height / Thickness : 4.5 mm Lining Height / Thickness	4.5 mm

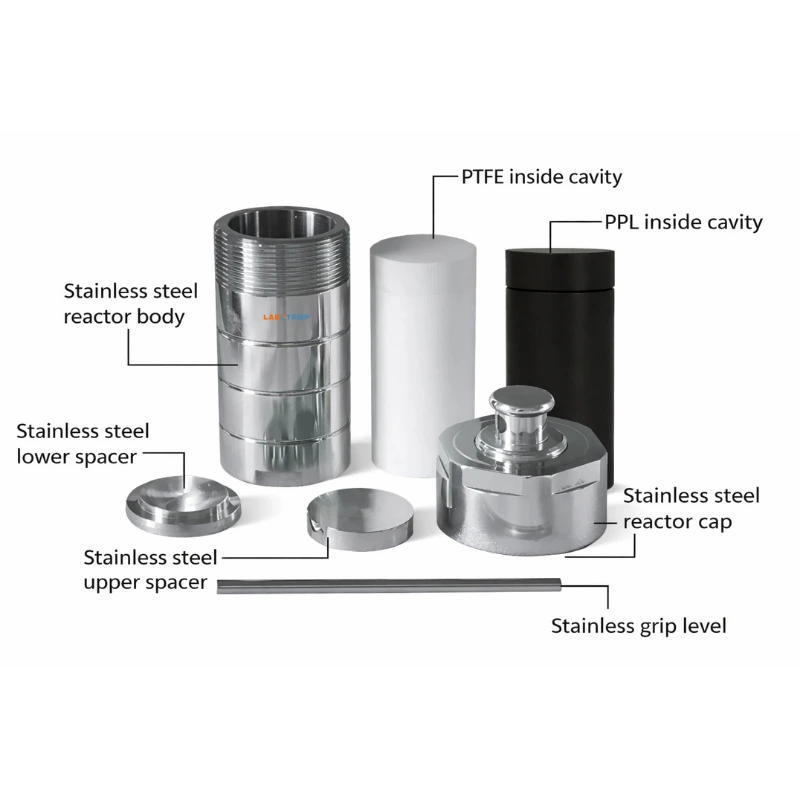

Construction & Components
Thickness of Lower Gasket : 8 mm Thickness of Lower Gasket	8 mm
Thickness of Upper Gasket : 8 mm Thickness of Upper Gasket	8 mm
Packaging Information
Product Weight : 0.95 kg Product Weight	0.95 kg
Packing Dimension : 11 × 11 × 16.5 cm Packing Dimension	11 × 11 × 16.5 cm
Gross Weight : 2 kg Gross Weight	2 kg

316SS Heavy-Duty Core ➤ 316SS Heavy-Duty Core
Constructed with stainless steel body providing excellent high-pressure strength and corrosion resistance. ➤ Constructed with stainless steel body providing excellent high-pressure strength and corrosion resistance.
PTFE lining offers strong resistance to acids and alkalis for safe chemical reactions. ➤ PTFE lining offers strong resistance to acids and alkalis for safe chemical reactions.
Enables rapid dissolution of difficult-to-dissolve samples under elevated temperature and pressure conditions. ➤ Enables rapid dissolution of difficult-to-dissolve samples under elevated temperature and pressure conditions.
Designed with a compact and user-friendly structure for convenient operation and reliable analytical results. ➤ Designed with a compact and user-friendly structure for convenient operation and reliable analytical results.
Provides excellent sealing performance, preventing leakage and ensuring safe operation with minimal contamination. ➤ Provides excellent sealing performance, preventing leakage and ensuring safe operation with minimal contamination.

Hydrothermal Synthesis: Suitable for crystal growth, nanomaterial synthesis, zeolite preparation, and advanced material development under high-temperature and high-pressure conditions Hydrothermal Synthesis
Suitable for crystal growth, nanomaterial synthesis, zeolite preparation, and advanced material development under high-temperature and high-pressure conditions
Sample Digestion: Ideal for high-pressure digestion of geological, environmental, food, and biological samples prior to elemental analysis Sample Digestion
Ideal for high-pressure digestion of geological, environmental, food, and biological samples prior to elemental analysis
Chemical Research: Supports laboratory-scale synthesis of inorganic compounds, catalysts, ceramics, and functional materials Chemical Research
Supports laboratory-scale synthesis of inorganic compounds, catalysts, ceramics, and functional materials
Environmental Laboratories: Suitable for preparation and digestion of water, soil, sludge, and environmental monitoring samples Environmental Laboratories
Suitable for preparation and digestion of water, soil, sludge, and environmental monitoring samples
Pharmaceutical & Materials Science: Used for reaction screening, precursor synthesis, and small-batch material development in research laboratories Pharmaceutical & Materials Science
Used for reaction screening, precursor synthesis, and small-batch material development in research laboratories
Academic & University Laboratories: Compact design makes it ideal for teaching laboratories and research projects involving hydrothermal chemistry and high-pressure reactions Academic & University Laboratories
Compact design makes it ideal for teaching laboratories and research projects involving hydrothermal chemistry and high-pressure reactions
