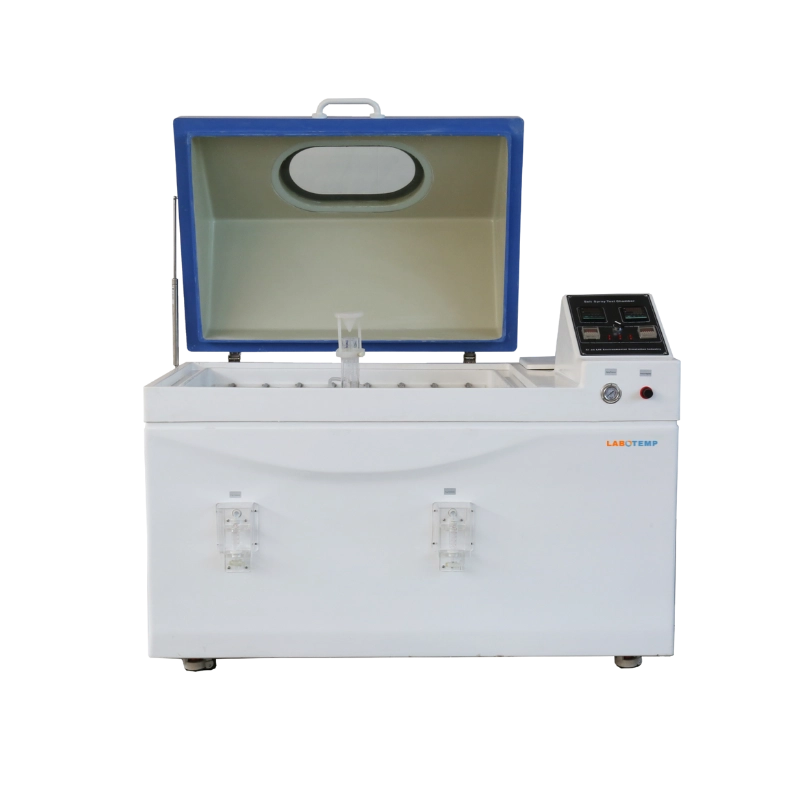

Salt Spray Test Chamber SSC-01

Name: Salt Spray Test Chamber SSC-01
Brand: Labotemp
SKU: SSC-01
Price: 7405.00 USD
Availability: InStock
Rating: 4.7 (828 reviews)

Labotemp Salt Spray Test Chamber SSC-01 is a compact, standards-grade corrosion tester engineered for accelerated evaluation of coatings, fasteners and metal components. With a 110 L interior, SSC-01 delivers a controlled salt fog (1–2 ml/80 cm²·h) at high humidity (95–98% RH) and PID temperature control from ambient to +60 °C, supporting both continuous and periodic spray modes. ISO and CE compliance ensure suitability for regulated R&D and QC workflows.

This Salt Spray Tester enables repeatable, standards-aligned corrosion exposure to simulate marine and industrial saline environments. Integrated safety protections including over-temperature, water-shortage and earth-leakage safeguards ensure reliable long-duration operation. Simple PID control and durable FRP construction support consistent performance, minimal maintenance and dependable results in corrosion resistance testing programs. Manufactured and supplied by trusted Labotemp, a proven salt spray test chamber manufacturer for QA/QC labs.

Why choose Labotemp Salt Spray Test Chamber SSC-01?
✓ Compact Capacity: Compact 110 L capacity for space-efficient installation.
✓ Precise PID Control: Precise PID control with verified 1–2 ml/80 cm²·h salt deposition.
✓ Flexible Spray Modes: Continuous & periodic spray modes for flexible corrosion testing.

$7405

Datasheet

Temperature Range : +60°C Temperature Range	+60°C
Interior Volume : 110L Interior Volume	110L
Internal Dimensions (mm) : 590×470×400 Internal Dimensions (mm)	590×470×400
Overall Dimensions (mm) : 1460×760×1140 Overall Dimensions (mm)	1460×760×1140
Temperature Fluctuation : ±0.5°C Temperature Fluctuation	±0.5°C
Temperature Deviation : ±2.0°C Temperature Deviation	±2.0°C
Humidity Range : 95% ~ 98% RH Humidity Range	95% ~ 98% RH
Salt Fog Deposition : 1 ~ 2 ml / 80 cm² · h Salt Fog Deposition	1 ~ 2 ml / 80 cm² · h
Spray Type : Continuous / Periodic Spray Type	Continuous / Periodic
Salt Fog Collected : Fog collector and fog measure cylinder Salt Fog Collected	Fog collector and fog measure cylinder
Air Preheating : Saturated air barrel Air Preheating	Saturated air barrel
Spraying System : Atomizer tower and Spray nozzles Spraying System	Atomizer tower and Spray nozzles
Controller : PID controller Controller	PID controller
Safety Device : Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection
Material : Glass fiber reinforced plastics Material	Glass fiber reinforced plastics
Voltage : 220V, 50/60Hz Voltage	220V, 50/60Hz
Net Weight : 85kg Net Weight	85kg
Gross Weight : 141kg Gross Weight	141kg
Packing Size : 1310x870x1250mm Packing Size	1310x870x1250mm

Compact 110L Design  ➤ Compact 110L Design
Continuous or periodic salt spray testing for corrosion evaluation ➤ Continuous or periodic salt spray testing for corrosion evaluation
PID controller for stable and precise temperature regulation ➤ PID controller for stable and precise temperature regulation
Salt fog deposition rate of 1–2 ml / 80 cm²·h for accurate corrosion testing ➤ Salt fog deposition rate of 1–2 ml / 80 cm²·h for accurate corrosion testing
Saturated air barrel for air preheating to ensure uniform fog generation ➤ Saturated air barrel for air preheating to ensure uniform fog generation
Atomizer tower and spray nozzles providing consistent fog distribution ➤ Atomizer tower and spray nozzles providing consistent fog distribution
Glass fiber reinforced plastic chamber body for strong corrosion resistance ➤ Glass fiber reinforced plastic chamber body for strong corrosion resistance
95%–98% RH humidity range for high-salt, high-moisture testing ➤ 95%–98% RH humidity range for high-salt, high-moisture testing
Multiple safety protections: dry-combustion, over-temperature, over-current, water shortage, and earth leakage protection Multiple safety protections
dry-combustion, over-temperature, over-current, water shortage, and earth leakage protection
Fog collector and measuring cylinder for monitoring deposition rate ➤ Fog collector and measuring cylinder for monitoring deposition rate
Internal volumes ranging from 110L to 1600L, suitable for different test sample sizes ➤ Internal volumes ranging from 110L to 1600L, suitable for different test sample sizes

Used in Corrosion resistance testing of metals and coatings, evaluation of paints and surface treatments, durability testing of automotive parts and hardware, corrosion testing of electronic components, quality control for plating and coating processes, material assessment for marine/coastal environments ➤ Used in Corrosion resistance testing of metals and coatings, evaluation of paints and surface treatments, durability testing of automotive parts and hardware, corrosion testing of electronic components, quality control for plating and coating processes, material assessment for marine/coastal environments
