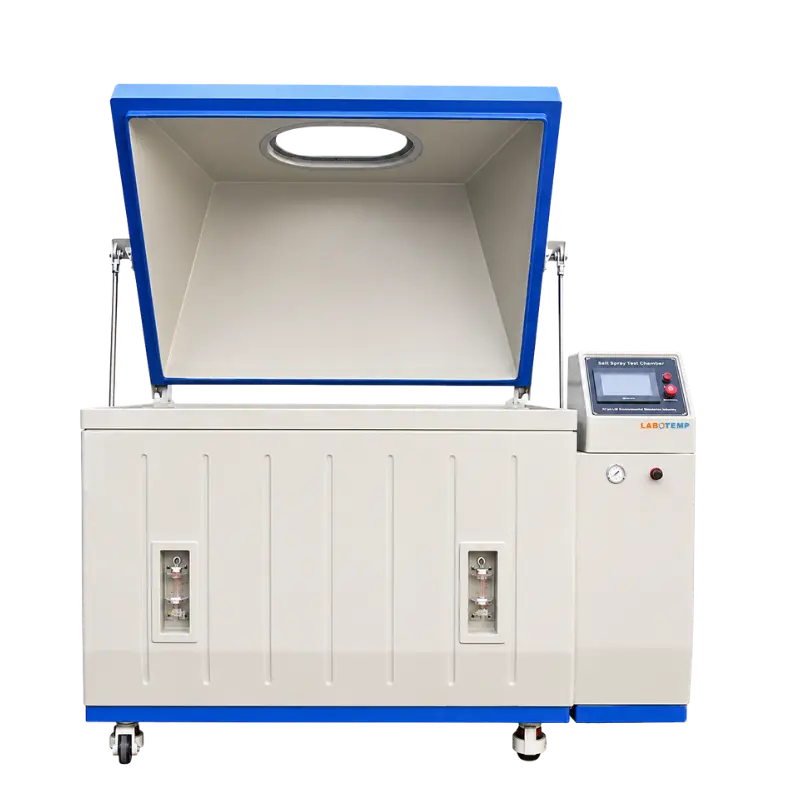

Salt Spray Test Chamber SSC-04

Name: Salt Spray Test Chamber SSC-04
Brand: Labotemp
SKU: SSC-04
Price: 18597.00 USD
Availability: InStock
Rating: 4.7 (646 reviews)

Labotemp Salt Spray Test Chamber SSC-04 is a high-performance salt spray chamber designed for accelerated corrosion testing of coated components, metal parts, fasteners, automotive assemblies, electronic products, and industrial materials. Featuring a 780 L test chamber, ambient to +60°C workroom and salt solution temperature range, and ±0.5°C temperature fluctuation, this advanced salt spray test machine delivers stable, repeatable corrosion testing in accordance with ASTM B117, ISO 9227, and MIL-STD-810 standards. Its dual-side atomizer spray towers, adjustable continuous or periodic spray modes, and pneumatic sealing system provide uniform salt fog distribution, ensuring accurate evaluation of coating durability and material corrosion resistance.

Built for continuous laboratory and industrial operation, the SSC-04 incorporates a corrosion-resistant glass fiber reinforced plastic chamber, quartz spray nozzles, a 31 L saturated air barrel, and a PID programmable touch-screen controller for precise process control. The integrated 78 L external salt solution tank, PT100 temperature sensor, and fog collection system support long-duration testing while minimizing maintenance. A pneumatic lid, emergency stop function, adjustable spray parameters, and energy-efficient nichrome heating system ensure safe, dependable, and long-term performance for research laboratories, quality control departments, and manufacturing facilities.

Why Choose Labotemp Salt Spray Test Chamber SSC-04?

✓ High-Capacity Testing: 780 L chamber accommodates large components and multiple specimens for efficient corrosion testing.
✓ Uniform Salt Fog Generation: Dual-side atomizer spray system delivers consistent salt mist distribution for repeatable test results.
✓ Robust Laboratory Construction: FRP chamber, quartz nozzles, and pneumatic sealing system provide excellent durability and long service life

$18597

Datasheet

Testing Performance
Workroom Temperature Range : Ambient to +60°C Workroom Temperature Range	Ambient to +60°C
Saturated Air Barrel Temperature Range : Ambient to +60°C Saturated Air Barrel Temperature Range	Ambient to +60°C
Salt Solution Temperature Range : Ambient to +60°C Salt Solution Temperature Range	Ambient to +60°C
Temperature Fluctuation : ±0.5°C Temperature Fluctuation	±0.5°C
Temperature Deviation : ±2.0°C Temperature Deviation	±2.0°C
Salt Fog Deposition : 1–2 mL / 80 cm² / h Salt Fog Deposition	1–2 mL / 80 cm² / h
Spray Type : Continuous / Periodic Spray Type	Continuous / Periodic
Chamber & Capacity
Interior Volume : 780 L Interior Volume	780 L
Internal Dimensions (D × W × H) : 1000 × 1300 × 600 mm Internal Dimensions (D × W × H)	1000 × 1300 × 600 mm
Overall Dimensions (D × W × H) : 1300 × 1860 × 1600 mm Overall Dimensions (D × W × H)	1300 × 1860 × 1600 mm
View Window Size : 800 × 300 mm View Window Size	800 × 300 mm
Chamber Material : Glass Fiber Reinforced Plastic (FRP) Chamber Material	Glass Fiber Reinforced Plastic (FRP)
Control & Construction
Controller : PID Programmable Controller Controller	PID Programmable Controller
Temperature Sensor : PT100Ω / MV A-Class Temperature Sensor	PT100Ω / MV A-Class
Heating Element : Nichrome Heater Heating Element	Nichrome Heater
Air Preheating System : 31 L Saturated Air Barrel Air Preheating System	31 L Saturated Air Barrel
Spraying System : Atomizer Tower & Quartz Spray Nozzles Spraying System	Atomizer Tower & Quartz Spray Nozzles
Salt Fog Collection : Fog Collector & Fog Measuring Cylinder Salt Fog Collection	Fog Collector & Fog Measuring Cylinder
Sealing System : Pneumatic Seal Sealing System	Pneumatic Seal
External Salt Solution Tank : 600 × 370 × 350 mm (78 L) External Salt Solution Tank	600 × 370 × 350 mm (78 L)
Electrical & Environmental
Power Supply : 204 V, 60 Hz, 3 Phase Power Supply	204 V, 60 Hz, 3 Phase
Maximum Noise Level : 65 dBA Maximum Noise Level	65 dBA
Operating Ambient Temperature : 5°C to 35°C Operating Ambient Temperature	5°C to 35°C
Operating Humidity : ≤85% RH Operating Humidity	≤85% RH
Net Weight : 284kg Net Weight	284kg
Gross Weight : 399kg Gross Weight	399kg
Package Size : 2060x1450x1850mm Package Size	2060x1450x1850mm

PID controller ➤ PID controller
780 L Corrosion Test Chamber: Large-capacity chamber accommodates multiple or oversized test specimens for high-throughput corrosion testing. 780 L Corrosion Test Chamber
Large-capacity chamber accommodates multiple or oversized test specimens for high-throughput corrosion testing.
Uniform Salt Fog Distribution: Dual-side atomizer spray towers ensure consistent salt mist coverage throughout the chamber. Uniform Salt Fog Distribution
Dual-side atomizer spray towers ensure consistent salt mist coverage throughout the chamber.
PID Touch-Screen Controller: Programmable controller enables precise temperature regulation and automated test cycle management. PID Touch-Screen Controller
Programmable controller enables precise temperature regulation and automated test cycle management.
Continuous & Periodic Spray Modes: Supports both standard salt spray and cyclic corrosion testing requirements. Continuous & Periodic Spray Modes
Supports both standard salt spray and cyclic corrosion testing requirements.
Corrosion-Resistant FRP Construction: One-piece glass fiber reinforced plastic chamber provides excellent chemical resistance and long service life. Corrosion-Resistant FRP Construction
One-piece glass fiber reinforced plastic chamber provides excellent chemical resistance and long service life.
Quartz Spray Nozzles: High-temperature, corrosion-resistant nozzles minimize clogging and ensure stable salt fog generation. Quartz Spray Nozzles
High-temperature, corrosion-resistant nozzles minimize clogging and ensure stable salt fog generation.
31 L Saturated Air Barrel: Preheats compressed air for improved spray consistency and reliable corrosion simulation. 31 L Saturated Air Barrel
Preheats compressed air for improved spray consistency and reliable corrosion simulation.
Pneumatic Lid Sealing: Automatic pneumatic sealing minimizes salt fog leakage while maintaining stable test conditions. Pneumatic Lid Sealing
Automatic pneumatic sealing minimizes salt fog leakage while maintaining stable test conditions.
Integrated Fog Collection System: Fog collector and measuring cylinder enable accurate monitoring of salt deposition rates. Integrated Fog Collection System
Fog collector and measuring cylinder enable accurate monitoring of salt deposition rates.
External 78 L Brine Tank: Separate solution tank with mixing system ensures a continuous and homogeneous salt solution supply. External 78 L Brine Tank
Separate solution tank with mixing system ensures a continuous and homogeneous salt solution supply.
Built-in Safety Protection: Includes emergency stop, low-water protection for the saturated barrel, and reliable system monitoring for safe operation. Built-in Safety Protection
Includes emergency stop, low-water protection for the saturated barrel, and reliable system monitoring for safe operation.
International Standards Compliance: Designed to perform corrosion testing in accordance with ASTM B117, ISO 9227, and MIL-STD-810. International Standards Compliance
Designed to perform corrosion testing in accordance with ASTM B117, ISO 9227, and MIL-STD-810.

Automotive Component TestingEvaluates the corrosion resistance of body panels, fasteners, brake components, chassis parts, and protective coatings under accelerated salt spray conditions ➤ Automotive Component TestingEvaluates the corrosion resistance of body panels, fasteners, brake components, chassis parts, and protective coatings under accelerated salt spray conditions
Metal Finishing & Coating EvaluationVerifies the durability of electroplated, galvanized, anodized, painted, and powder-coated surfaces against corrosive environments ➤ Metal Finishing & Coating EvaluationVerifies the durability of electroplated, galvanized, anodized, painted, and powder-coated surfaces against corrosive environments
Marine & Offshore EquipmentSimulates salt-laden coastal and marine environments to assess the long-term corrosion resistance of marine hardware and offshore components ➤ Marine & Offshore EquipmentSimulates salt-laden coastal and marine environments to assess the long-term corrosion resistance of marine hardware and offshore components
Electronics & Electrical ProductsTests connectors, terminals, electrical enclosures, PCB assemblies, and electronic components for corrosion resistance in humid and saline conditions ➤ Electronics & Electrical ProductsTests connectors, terminals, electrical enclosures, PCB assemblies, and electronic components for corrosion resistance in humid and saline conditions
Aerospace & DefenseSupports corrosion testing of aircraft components, fasteners, structural materials, and protective surface treatments to ensure long-term reliability ➤ Aerospace & DefenseSupports corrosion testing of aircraft components, fasteners, structural materials, and protective surface treatments to ensure long-term reliability
Industrial Manufacturing & Quality AssurancePerforms routine corrosion testing of metal parts, hardware, tools, and finished products to validate product quality and service life ➤ Industrial Manufacturing & Quality AssurancePerforms routine corrosion testing of metal parts, hardware, tools, and finished products to validate product quality and service life
Research & Product DevelopmentAssists laboratories and R&D facilities in developing, comparing, and improving corrosion-resistant materials, coatings, and surface treatment technologies ➤ Research & Product DevelopmentAssists laboratories and R&D facilities in developing, comparing, and improving corrosion-resistant materials, coatings, and surface treatment technologies

External salt solution tank with brine mixing system ➤ External salt solution tank with brine mixing system
Fog collector ➤ Fog collector
Fog measuring cylinder ➤ Fog measuring cylinder
Quartz spray nozzles ➤ Quartz spray nozzles
Sample holder with round bars and V-shaped grooves ➤ Sample holder with round bars and V-shaped grooves
PID programmable touch-screen controller ➤ PID programmable touch-screen controller
Ethernet communication interface ➤ Ethernet communication interface
USB communication interface ➤ USB communication interface
Water recirculation purification system ➤ Water recirculation purification system
Pneumatic lid opening and sealing system ➤ Pneumatic lid opening and sealing system
Four lockable swivel casters ➤ Four lockable swivel casters
Emergency stop button ➤ Emergency stop button
