Salt Spray Test Chamber SSC-03

Name: Salt Spray Test Chamber SSC-03
Brand: Labotemp
SKU: SSC-03
Price: 11024.00 USD
Availability: InStock
Rating: 5 (890 reviews)

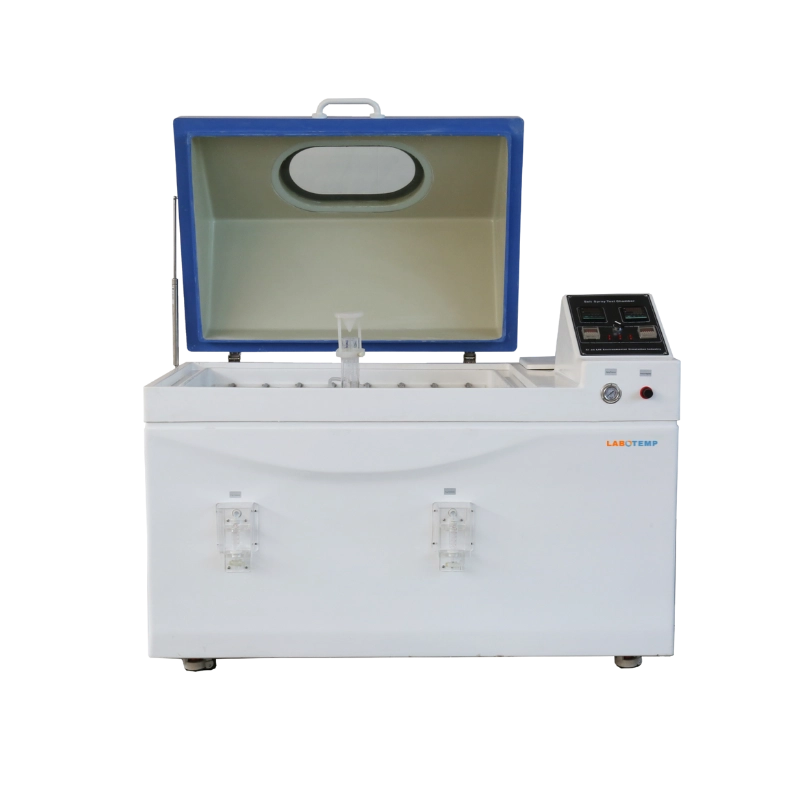

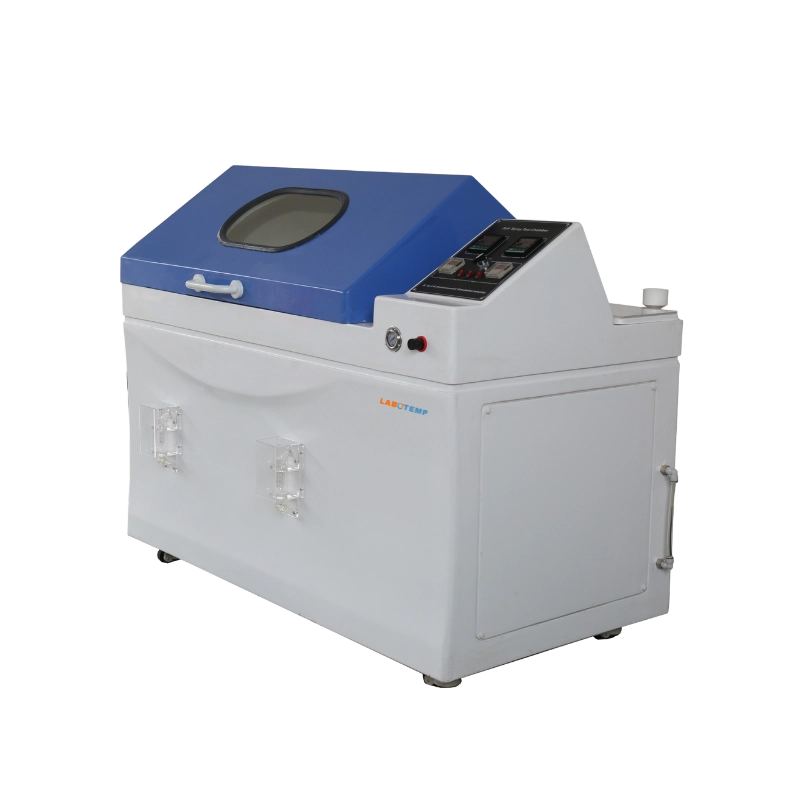

Labotemp Salt Spray Corrosion Test Chamber SSC-03 is a professional salt fog test chamber with a 320L interior designed for accelerated evaluation of corrosion resistance of metal parts, coatings and assemblies. It delivers controlled salt fog deposition of 1–2 ml per 80 cm² per hour under precise PID temperature control from ambient to +60 °C and maintains 95–98% relative humidity. Built in corrosion resistant FRP, the unit functions as a salt spray tester and salt spray test equipment for lab and production quality control. Compliant with ISO and CE requirements for regulated testing environments.

Engineered for QA, R&D and production labs across automotive, aerospace, electronics and coatings industries, SSC-03 simulates marine and industrial saline atmospheres and supports cyclic corrosion test profiles. Integrated safety devices including over temperature protection, water shortage protection, humidifier dry combustion protection, over current protection and earth leakage protection safeguard samples and operators during long test cycles. Manufactured and supplied by trusted Labotemp, a leading salt spray test chamber manufacturer.

Why choose Salt Spray Corrosion Test Chamber SSC-03?
✓ Accurate Deposition: 1–2 ml/80 cm²·h for repeatable results.
✓ Robust Construction: FRP body for durability and low maintenance.
✓ Flexible Operation: Continuous and periodic modes for standard and cyclic tests.

$11024

Datasheet

Temperature Range : +60°C Temperature Range	+60°C
Interior Volume : 410L Interior Volume	410L
Internal Dimensions (mm) : 1100×750×500 Internal Dimensions (mm)	1100×750×500
Overall Dimensions (mm) : 1950×1030×1350 Overall Dimensions (mm)	1950×1030×1350
Temperature Fluctuation : ±0.5°C Temperature Fluctuation	±0.5°C
Temperature Deviation : ±2.0°C Temperature Deviation	±2.0°C
Humidity Range : 95% ~ 98% RH Humidity Range	95% ~ 98% RH
Salt Fog Deposition : 1 ~ 2 ml / 80 cm² · h Salt Fog Deposition	1 ~ 2 ml / 80 cm² · h
Spray Type : Continuous / Periodic Spray Type	Continuous / Periodic
Salt Fog Collected : Fog collector and fog measure cylinder Salt Fog Collected	Fog collector and fog measure cylinder
Air Preheating : Saturated air barrel Air Preheating	Saturated air barrel
Spraying System : Atomizer tower and Spray nozzles Spraying System	Atomizer tower and Spray nozzles
Controller : PID controller Controller	PID controller
Safety Device : Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection
Material : Glass fiber reinforced plastics Material	Glass fiber reinforced plastics
Voltage : 220V, 50/60Hz Voltage	220V, 50/60Hz
Net Weight : 203kg Net Weight	203kg
Gross Weight : 292kg Gross Weight	292kg
Packing Size : 1900x1230x1530mm Packing Size	1900x1230x1530mm

Massive 780L Volume ➤ Massive 780L Volume
Continuous or periodic salt spray testing for corrosion evaluation ➤ Continuous or periodic salt spray testing for corrosion evaluation
PID controller for stable and precise temperature regulation ➤ PID controller for stable and precise temperature regulation
Salt fog deposition rate of 1–2 ml / 80 cm²·h for accurate corrosion testing ➤ Salt fog deposition rate of 1–2 ml / 80 cm²·h for accurate corrosion testing
Saturated air barrel for air preheating to ensure uniform fog generation ➤ Saturated air barrel for air preheating to ensure uniform fog generation
Atomizer tower and spray nozzles providing consistent fog distribution ➤ Atomizer tower and spray nozzles providing consistent fog distribution
Glass fiber reinforced plastic chamber body for strong corrosion resistance ➤ Glass fiber reinforced plastic chamber body for strong corrosion resistance
95%–98% RH humidity range for high-salt, high-moisture testing ➤ 95%–98% RH humidity range for high-salt, high-moisture testing
Multiple safety protections: dry-combustion, over-temperature, over-current, water shortage, and earth leakage protection Multiple safety protections
dry-combustion, over-temperature, over-current, water shortage, and earth leakage protection
Fog collector and measuring cylinder for monitoring deposition rate ➤ Fog collector and measuring cylinder for monitoring deposition rate

Used in corrosion resistance testing of metals and coatings, evaluation of paints and surface treatments, durability testing of automotive parts and hardware, corrosion testing of electronic components, quality control for plating and coating processes, material assessment for marine/coastal environments ➤ Used in corrosion resistance testing of metals and coatings, evaluation of paints and surface treatments, durability testing of automotive parts and hardware, corrosion testing of electronic components, quality control for plating and coating processes, material assessment for marine/coastal environments
