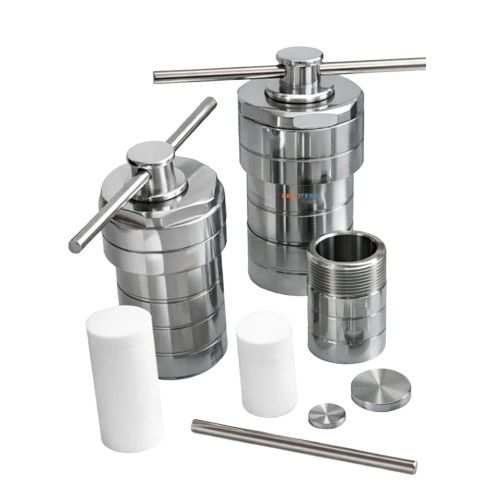

Labotemp Hydrothermal Reactor Autoclave HRA-06 is a robust 400 mL PTFE-lined Teflon autoclave engineered for reliable hydrothermal synthesis and pressure digestion. The thick-walled 304 stainless-steel kettle with PTFE lining and secure gasketed lid resists strong acids and alkalis while preventing sample contamination. Rated for 200 °C operating (250 °C max) and 3.0 MPa, the HRA-06 accelerates nondestructive dissolution of insoluble or volatile samples—ideal for trace-element work, materials science and high-purity analyses.
Designed for petrochemical, biomedical, geological, environmental and food testing labs, this hydrothermal autoclave reactor handles heavy metals, pesticides, rare earths, organics and complex matrices with reproducible results.Built to deliver consistent output for research and quality control, Labotemp stands behind this hydrothermal synthesis autoclave reactor as a trusted autoclave manufacturer and hydrothermal autoclave supplier.
Why choose Labotemp Hydrothermal Reactor Autoclave HRA-06?
✓ Manufactured for durability: Precision-engineered 304 stainless steel kettle with PTFE lining and thick walls for long service life.
✓ Certified safety: Designed and tested to meet ISO 13485 and CE standards for safe, compliant high-pressure digestion.
✓Lab performance: Fast, low-contamination digestion with reliable repeatability across hydrothermal synthesis and analytical workflows.
| General Specifications | |
|
Capacity : 400 ml Capacity |
400 ml |
|
Kettle Body Material : Stainless Steel Kettle Body Material |
Stainless Steel |
| Sterilization Parameters | |
|
Maximum Temperature : 250°C Maximum Temperature |
250°C |
|
Maximum Pressure : 3.0 MPa Maximum Pressure |
3.0 MPa |
| Chamber Dimensions | |
|
Kettle Lid Height : 50 mm Kettle Lid Height |
50 mm |
|
Kettle Body Height : 160 mm Kettle Body Height |
160 mm |
|
Kettle Body Diameter : 103 mm Kettle Body Diameter |
103 mm |
|
Kettle Body Inner Diameter : 81 mm Kettle Body Inner Diameter |
81 mm |
|
Kettle Body Wall Thickness : 11 mm Kettle Body Wall Thickness |
11 mm |
|
Inner Diameter : 81 mm Inner Diameter |
81 mm |
| Physical Dimensions | |
|
Overall Height : 220 mm Overall Height |
220 mm |
|
Length of Grip Bar : 8 × 120 mm Length of Grip Bar |
8 × 120 mm |
|
Lined With High : 138 mm Lined With High |
138 mm |
|
Lining Height / Thickness : 8 mm Lining Height / Thickness |
8 mm |
|
Thickness of Lower Gasket : 10 mm Thickness of Lower Gasket |
10 mm |
|
Thickness of Upper Gasket : 10 mm Thickness of Upper Gasket |
10 mm |
| Packaging Information | |
|
Product Weight : 6.5 kg Product Weight |
6.5 kg |
|
Packing Dimension : 22 × 22 × 33 cm Packing Dimension |
22 × 22 × 33 cm |
|
Gross Weight : 9 kg Gross Weight |
9 kg |
Thickness of Upper Gasket: 8 mm
Thickness of Lower Gasket: 8 mm
Sterilization Parameters:
Product Weight: 0.95 kg
Thickness of Upper Gasket: 8 mm
Thickness of Lower Gasket: 8 mm
Sterilization Parameters:
Product Weight: 0.95 kg
Sterilization Parameters:
Product Weight: 2.25 kg
Packaging Information:
Operating Temperature: 200°C
Thickness of Upper Gasket: 10 mm
Thickness of Lower Gasket: 10 mm
Sterilization Parameters:
Product Weight: 5.65 kg
Thickness of Upper Gasket: 10 mm
Thickness of Lower Gasket: 10 mm
Sterilization Parameters:
Product Weight: 6.4 kg
Thickness of Upper Gasket: 10 mm
Thickness of Lower Gasket: 10 mm
Sterilization Parameters:
Product Weight: 6.5 kg
Thickness of Upper Gasket: 10 mm
Thickness of Lower Gasket: 10 mm
Sterilization Parameters:
Product Weight: 7.45 kg
Wetted Material: Hastelloy
Venting System: Deflation / Vent Valve
Valve Material: 316L Stainless Steel
Temperature Monitoring: Temperature Probe
Wetted Material: Hastelloy
Venting System: Deflation / Vent Valve
Valve Material: 316L Stainless Steel
Temperature Monitoring: Temperature Probe
