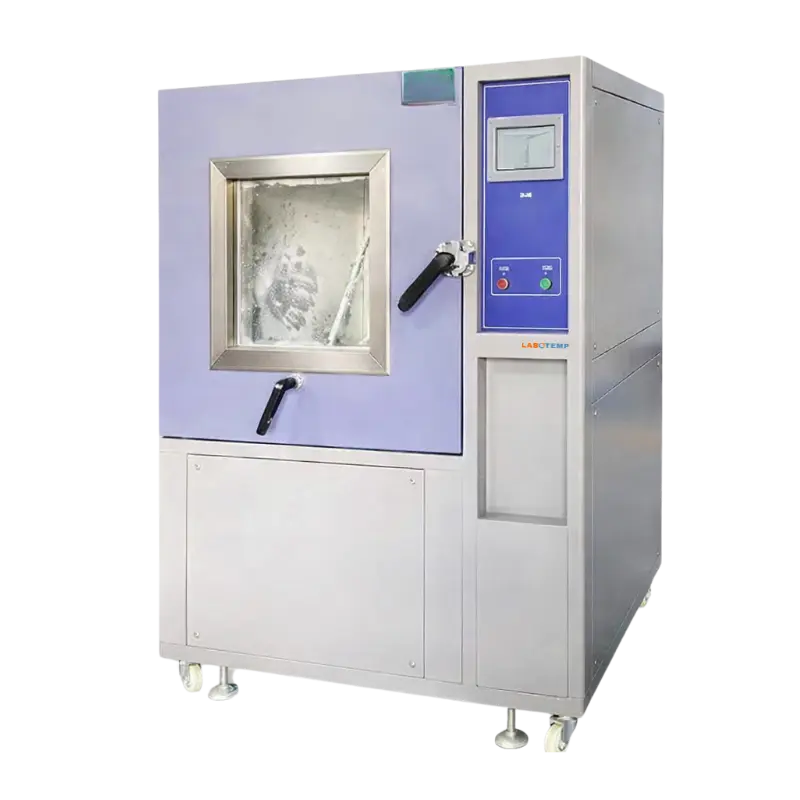

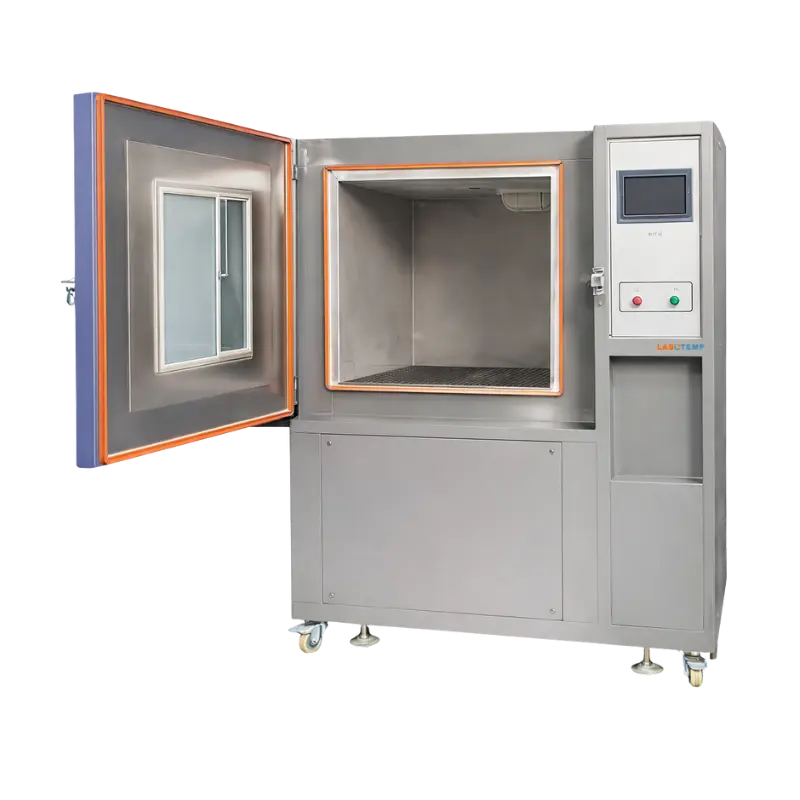

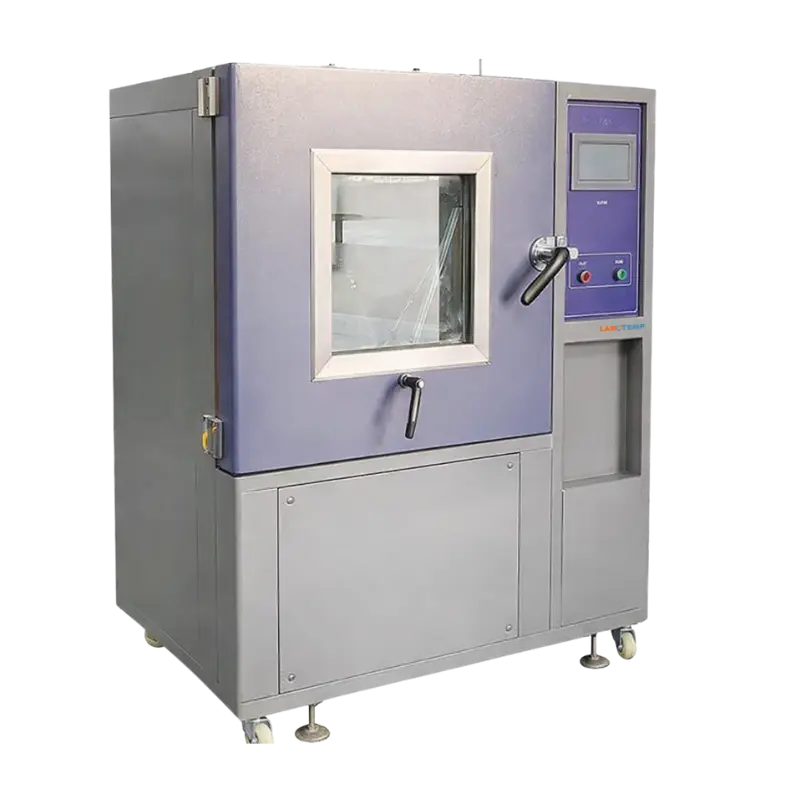

Labotemp Sand and Dust Test Chamber SDC-03 is designed to reproduce floating (F) and flowing (C) dust conditions for accurate sand and dust testing of automotive, electronics, telecom, solar and industrial components. This dust test chamber evaluates sealing performance and reliability of sensors, electrical enclosures, gear shafts, door locks and machinery assemblies exposed to dust environments. Equipped with a high-performance dust spray system, selectable F1–F3 modes, integrated vibration and precision dust concentration control, it ensures uniform and dependable test results.
Manufactured by trusted environmental chamber manufacturers, the SDC-03 is ideal for laboratory test chamber and quality control applications requiring consistent performance. It operates at 20°C ±15°C, 45%–85% RH, and programmable time control from 0–999 sec for precise sand and dust testing. CE and ISO 13485 compliant, this environmental test chamber ensures reliable product testing, certification and long-term performance validation.
Why choose Labotemp Sand and Dust Test Chamber SDC-03?
✓ Versatile testing capability: Suitable for electronics, automotive, telecom and industrial components requiring dust resistance testing.
✓ Easy operation: User-friendly control system enables precise setting and efficient test cycle management.
✓ Robust construction: High-quality build ensures reliable, long-term performance in laboratory and environmental testing.
|
Test Temperature : 20°C ± 15°C Test Temperature |
20°C ± 15°C |
|
Maximum power consumption : AC220V 50Hz 5KW Maximum power consumption |
AC220V 50Hz 5KW |
|
Test humidity : 45% ~ 85% RH Test humidity |
45% ~ 85% RH |
|
External dimensions (W×D×H) cm : 145×150×210 External dimensions (W×D×H) cm |
145×150×210 |
|
Internal size (W×D×H) cm : 100×100×100 Internal size (W×D×H) cm |
100×100×100 |
|
Time control : 0 - 999 sec Time control |
0 - 999 sec |
|
Net Weight : 400 kg Net Weight |
400 kg |
|
Gross Weight : 500 kg Gross Weight |
500 kg |
|
Package Size : 1550×1630×2320mm Package Size |
1550×1630×2320mm |
Time control: 0 - 999 sec
Test Temperature: 20°C ± 15°C
Test humidity: 45% ~ 85% RH
Package Size: 1150×1100×1800mm
Time control: 0 - 999 sec
Test Temperature: 20°C ± 15°C
Test humidity: 45% ~ 85% RH
Package Size: 1380×1350×2020mm
Time control: 0 - 999 sec
Test Temperature: 20°C ± 15°C
Test humidity: 45% ~ 85% RH
Package Size: 1550×1630×2320mm
Viewing Window Size: 475 × 475 mm
Vacuum System: Pressure gauge, air filter, pressure regulator and connecting tube
Temperature Range: Ambient to +50°C
Specimen Power Outlet: Dust-proof socket, 16 A
