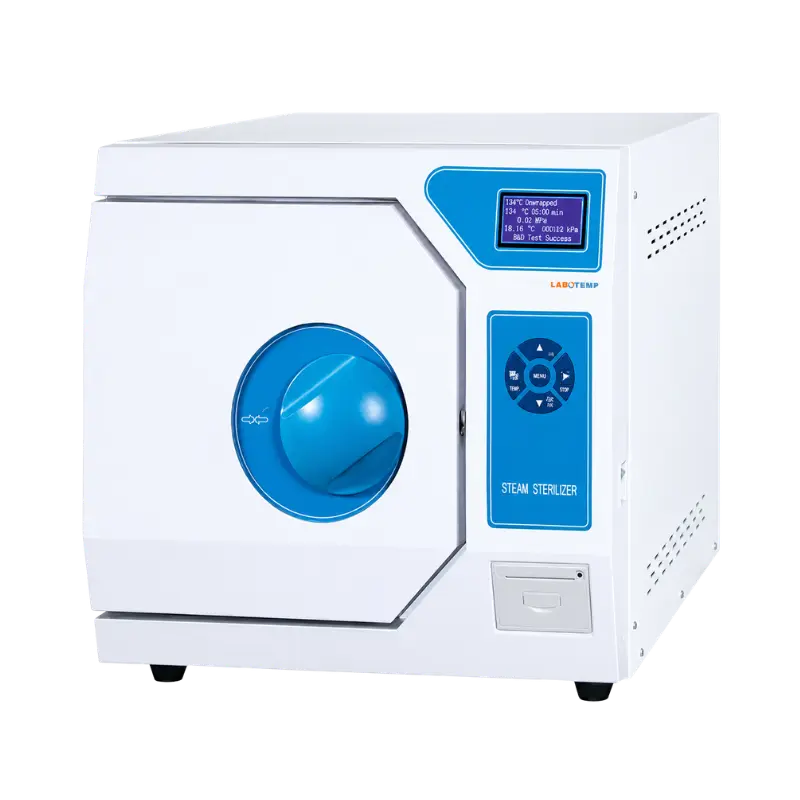

Dental Autoclave LDA-05

Name: Dental Autoclave LDA-05
Brand: Labotemp
SKU: LDA-05
Price: 3664.00 USD
Availability: InStock
Rating: 4.8 (626 reviews)

Labotemp Dental Autoclave LDA-05 is a advanced Class B tabletop steam sterilizer designed for dental clinics, medical practices, laboratories and veterinary centers requiring dependable autoclave sterilization. An 18 L stainless-steel chamber (Ø250×370 mm) accepts handpieces, surgical sets, hollow instruments, cassettes and wrapped loads. Triple pre-vacuum cycles and a fast built-in steam generator deliver saturated steam to 134°C, ensuring thorough sterilization and validated bioburden control and trusted results.

Compact and energy-efficient, the benchtop autoclave runs on 2 kW and 110/220 V, with minimal utility needs. Microcomputer control, LED display and inductive touch simplify operation, automatic water fill, air discharge and steam exhaust streamline workflows. Safety systems include door lock, over-temperature, over-pressure and low-water protection, plus anti-dry-burn. Integrated BD, Helix and vacuum tests with printer, USB and U-disk output provide traceable records for audits.

Why choose Labotemp Dental Autoclave LDA-05?
✓ Higher throughput: 18L chamber balances capacity and tabletop convenience for busy clinics.
✓ Operational safety: multi-level protections ensure secure, repeatable cycles.
✓ Audit-ready records: built-in validation tests and data export simplify compliance.

$3664

Datasheet

Capacity : 18 L Capacity	18 L
Rated Working Temperature : 134°C Rated Working Temperature	134°C
Voltage : 220V / 110V, 50Hz/60Hz Voltage	220V / 110V, 50Hz/60Hz
Power : 2 kW Power	2 kW
Design Pressure : 0.25 MPa Design Pressure	0.25 MPa
Design Temperature : 139°C Design Temperature	139°C
Rated Working Pressure : 0.22 MPa Rated Working Pressure	0.22 MPa
Chamber Volume : Ø250 × 370 mm Chamber Volume	Ø250 × 370 mm
Outer Dimension : 620 × 505 × 450 mm Outer Dimension	620 × 505 × 450 mm
Packing Size (L × W × H) : 670 × 560 × 510 mm Packing Size (L × W × H)	670 × 560 × 510 mm
Net Weight : 53kg Net Weight	53kg
Gross Weight : 62kg Gross Weight	62kg

LED Display Control ➤ LED Display Control
European Class B sterilization standard for reliable instrument processing ➤ European Class B sterilization standard for reliable instrument processing
Triple pre-vacuum system for improved steam penetration ➤ Triple pre-vacuum system for improved steam penetration
Fast heating with integrated steam generation technology ➤ Fast heating with integrated steam generation technology
Microprocessor-controlled sterilization cycles for stable performance ➤ Microprocessor-controlled sterilization cycles for stable performance
Automatic water inlet system for convenient operation ➤ Automatic water inlet system for convenient operation
Automatic cold-air discharge and post-cycle steam exhaust ➤ Automatic cold-air discharge and post-cycle steam exhaust
Built-in BD test, Helix test and vacuum test functions ➤ Built-in BD test, Helix test and vacuum test functions
Safety interlock system to prevent door opening during operation ➤ Safety interlock system to prevent door opening during operation
Multiple protection systems including over-temperature and over-pressure protection ➤ Multiple protection systems including over-temperature and over-pressure protection
Low water level and anti-dry heating protection for safe continuous use ➤ Low water level and anti-dry heating protection for safe continuous use
Automatic cycle stop with buzzer notification after sterilization ➤ Automatic cycle stop with buzzer notification after sterilization
Integrated printer and USB/U-disk support for cycle data storage and traceability ➤ Integrated printer and USB/U-disk support for cycle data storage and traceability

LDA-05 is suitable for sterilizing wrapped instruments, hollow tools, dental handpieces, surgical kits, glassware and laboratory items in dental clinics, hospitals, veterinary centers, research labs and CSSD environments ➤ LDA-05 is suitable for sterilizing wrapped instruments, hollow tools, dental handpieces, surgical kits, glassware and laboratory items in dental clinics, hospitals, veterinary centers, research labs and CSSD environments
Supports infection control, routine sterilization validation and audit-ready documentation with BD/Helix testing, printer and USB data logging ➤ Supports infection control, routine sterilization validation and audit-ready documentation with BD/Helix testing, printer and USB data logging
