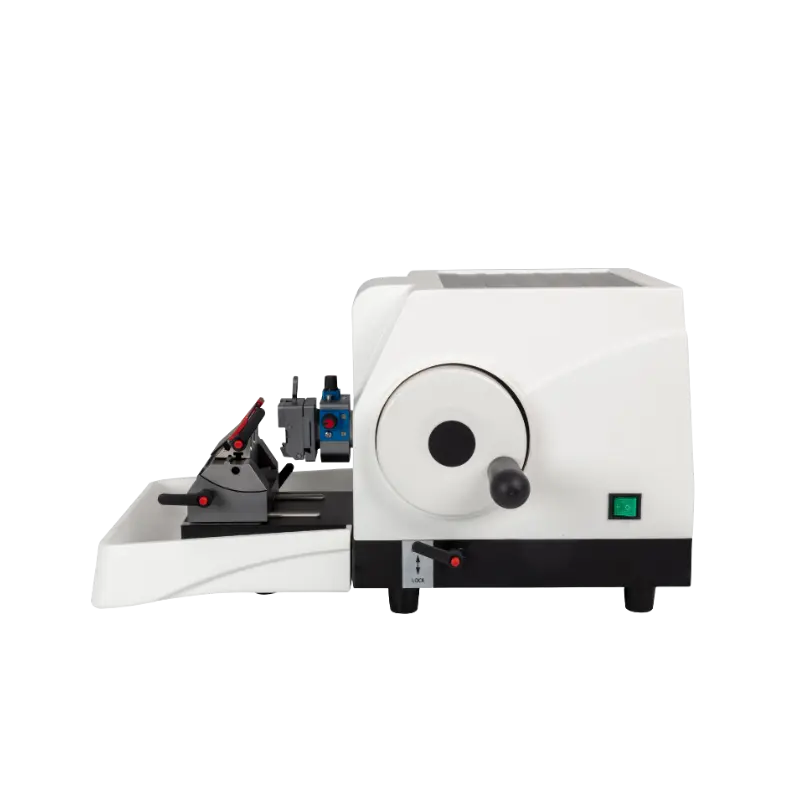

Labotemp Semi Automatic Rotary Microtome ROM-06 is a precision microtome machine designed for accurate tissue sectioning in histopathology and research laboratories. This semi-automatic microtome combines manual control with motorized assistance to produce uniform thin sections with an adjustable cut thickness range of 0–99 μm, supporting consistent serial sections for routine histology and microscopy. The motor-driven feed improves repeatability during sample preparation, reducing variability compared to fully manual systems.
The ROM-06 enables precise specimen handling with 28 mm horizontal and 60 mm vertical feed and 360° specimen rotation for accurate orientation. A stable microtome blade holder supports standard disposable microtome blades and steel microtome knives, maintaining reliable contact at the cutting edge for clean sectioning. Automated specimen retraction up to 100 μm and adjustable feed speeds improve workflow efficiency while maintaining dependable quality sections.
Why Choose Semi Automatic Rotary Microtome ROM-06?
✓ Precise thickness control: Accurate 0–99 μm sectioning
✓ Stable specimen positioning: 360° rotation for better orientation
✓ Cleaner sections: Secure blade holding for consistent cuts
| No. | Specification | Value |
|---|---|---|
| General Specifications | ||
| 1 | Section Thickness Setting Range | 0–99.9 µm, increment 0.1 µm |
| 2 | Trimming Thickness Setting | 0–999 µm, increment 0.1 µm |
| 3 | Specimen Retraction | 0–100 µm (can close) |
| 4 | Precision and Error | ±1% |
| 5 | Fast Feed Speed Adjust | 1–3.5 mm/s, at any set |
| 6 | Slow Feed Speed Adjust | 0.1–1 mm/s, at any set |
| 7 | Maximum Specimen Size | 60 × 50 mm |
| 8 | Specimen Horizontal Feeding | 28 mm |
| 9 | Specimen Vertical Feeding | 60 mm |
| 10 | Specimen Clamp Rotation | At any angle within 360° |
| 11 | Specimen Orientation System | X-Y 8° |
| 12 | Voltage and Frequency | AC 220 V / 50 Hz |
| Operation | ||
| 13 | Method | Semi-automatic |
| 14 | Control System | Advanced control panel |
| 15 | Display | High-definition color touchscreen |
| 16 | Sectioning Control | High-precision controller with accurate sectioning control |
| 17 | Feed Modes | Fast and slow feed modes with adjustable speeds |
| 18 | Specimen Movement | Motorized specimen feed with manual handwheel control |
| 19 | Specimen Clamp | Paraffin block clamp or cassette clamp (optional) |
| 20 | Blade Holder | High or low profile blade holder (optional) |
| Physical Dimensions | ||
| 21 | Size (W × D × H) | 580 × 490 × 315 mm |
| 22 | Net Weight | 30 kg |
| 23 | Gross Weight | 45 kg |
| 24 | Package Size(W × D × H) | 660 × 520 × 420 mm |
Histopathology Sectioning:Suitable for routine and advanced preparation of tissue sections for histological examination.
Pathology Laboratories: Supports precise specimen sectioning for routine diagnostic and pathology workflows.
Medical & Diagnostic Laboratories: Provides controlled tissue preparation for microscopic analysis and clinical examination.
Research Institutions: Useful for biomedical research requiring consistent and reproducible tissue sections.
Academic Laboratories: Supports histology and pathology teaching, practical training, and research activities.
Tissue Sample Preparation: Enables accurate preparation of specimens for staining, microscopy, and pathological evaluation.
