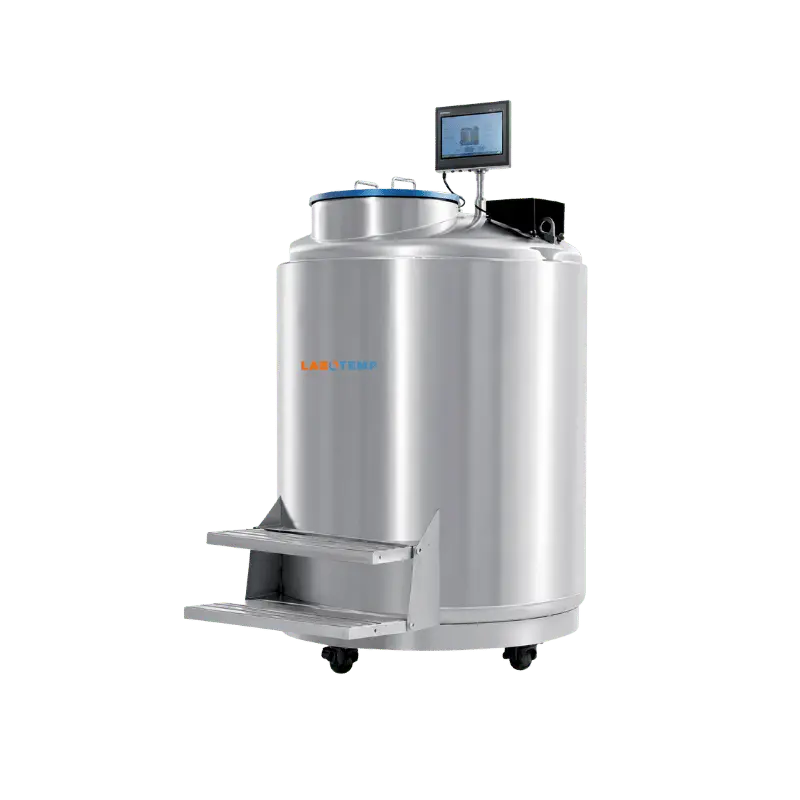

Labotemp Liquid Nitrogen Storage Tank LLN 102 provides 370 L storage capacity with a 55 L liquid nitrogen capacity for high volume cryogenic preservation of biological samples. Designed for LN₂ vapor phase and liquid phase storage, the system supports long term preservation where cryogenic temperatures are required. The wide neck design provides convenient access to stored samples, while the system can accommodate up to 15,600 vials of 2 mL capacity when configured according to the specified vial loading arrangement.
The LLN 102 features a microprocessor controller with a 7 inch or 10 inch touch screen display, automatic liquid nitrogen filling, and temperature and LN₂ level monitoring. Its vapor phase operation maintains the temperature of the upper storage area at ≤ −190°C, while optional accessories such as a sample lifting system, storage racks, boxes, vials, protective gloves and suit, and UPS backup battery can be selected according to the storage requirements. Cryogenic storage systems using liquid nitrogen vapor phase are commonly used for long term biological sample preservation.
Why Choose Labotemp Liquid Nitrogen Storage Tank LLN 102?
✓ 370 L Storage Capacity: Provides high volume cryogenic storage for biological samples and research materials.
✓ 55 L LN₂ Capacity: Designed with dedicated liquid nitrogen capacity to support cryogenic storage operation.
✓ Dual Storage Modes: Supports both LN₂ vapor phase and liquid phase operation according to the selected storage requirement.
| Storage Capacity | |
|
Storage Capacity- : 370 L Storage Capacity- |
370 L |
|
Liquid Nitrogen Capacity : 55 L Liquid Nitrogen Capacity |
55 L |
|
2 mL Tube Capacity : 15,600 tubes 2 mL Tube Capacity |
15,600 tubes |
|
Larger Rack : 10 × 10 Box Configuration Larger Rack |
10 × 10 Box Configuration |
|
Larger Rack Quantity : 12 Racks Larger Rack Quantity |
12 Racks |
|
Smaller Rack : 5 × 5 Box Configuration Smaller Rack |
5 × 5 Box Configuration |
|
Smaller Rack Quantity : 4 Racks Smaller Rack Quantity |
4 Racks |
| Cryogenic Performance | |
|
Storage Mode : LN₂ Vapor Phase or Liquid Phase Storage Mode |
LN₂ Vapor Phase or Liquid Phase |
|
Temperature of Top Internal Area : ≤ −190°C Temperature of Top Internal Area |
≤ −190°C |
|
LN₂ Filling System : Automatic LN₂ Filling System |
Automatic |
|
Temperature Monitoring : Yes Temperature Monitoring |
Yes |
|
LN₂ Level Monitoring : Yes LN₂ Level Monitoring |
Yes |
|
Controller : Microprocessor Controller |
Microprocessor |
|
Touch Screen Display : 7 inch or 10 inch Touch Screen Display |
7 inch or 10 inch |
| Tank Dimensions | |
|
Neck Diameter : 317 mm Neck Diameter |
317 mm |
|
Internal Height : 708 mm Internal Height |
708 mm |
|
Internal Diameter : 756 mm Internal Diameter |
756 mm |
|
External Height : 1400 mm External Height |
1400 mm |
|
Required Door Width : 850 mm Required Door Width |
850 mm |
|
Empty Weight : 212 kg Empty Weight |
212 kg |
|
Full Weight : 513 kg Full Weight |
513 kg |
| Blood Bag Storage | |
|
25 mL Blood Bag Capacity : 1,372, 7 × 196 25 mL Blood Bag Capacity |
1,372, 7 × 196 |
|
50 mL Blood Bag Capacity : 840, 7 × 120 50 mL Blood Bag Capacity |
840, 7 × 120 |
|
250 mL Blood Bag Capacity : 384, 4 × 96 250 mL Blood Bag Capacity |
384, 4 × 96 |
|
500 mL Blood Bag Capacity : 224, 4 × 56 500 mL Blood Bag Capacity |
224, 4 × 56 |
Ø76 Canisters: 48
Ø63 Canisters: 4
Ø38 Canisters: 23
Total Height: 1435 mm
Touch Screen Display: 7 inch or 10 inch
Temperature of Top Internal Area: ≤ −190°C
Temperature Monitoring: Yes
Tank Dimensions:
