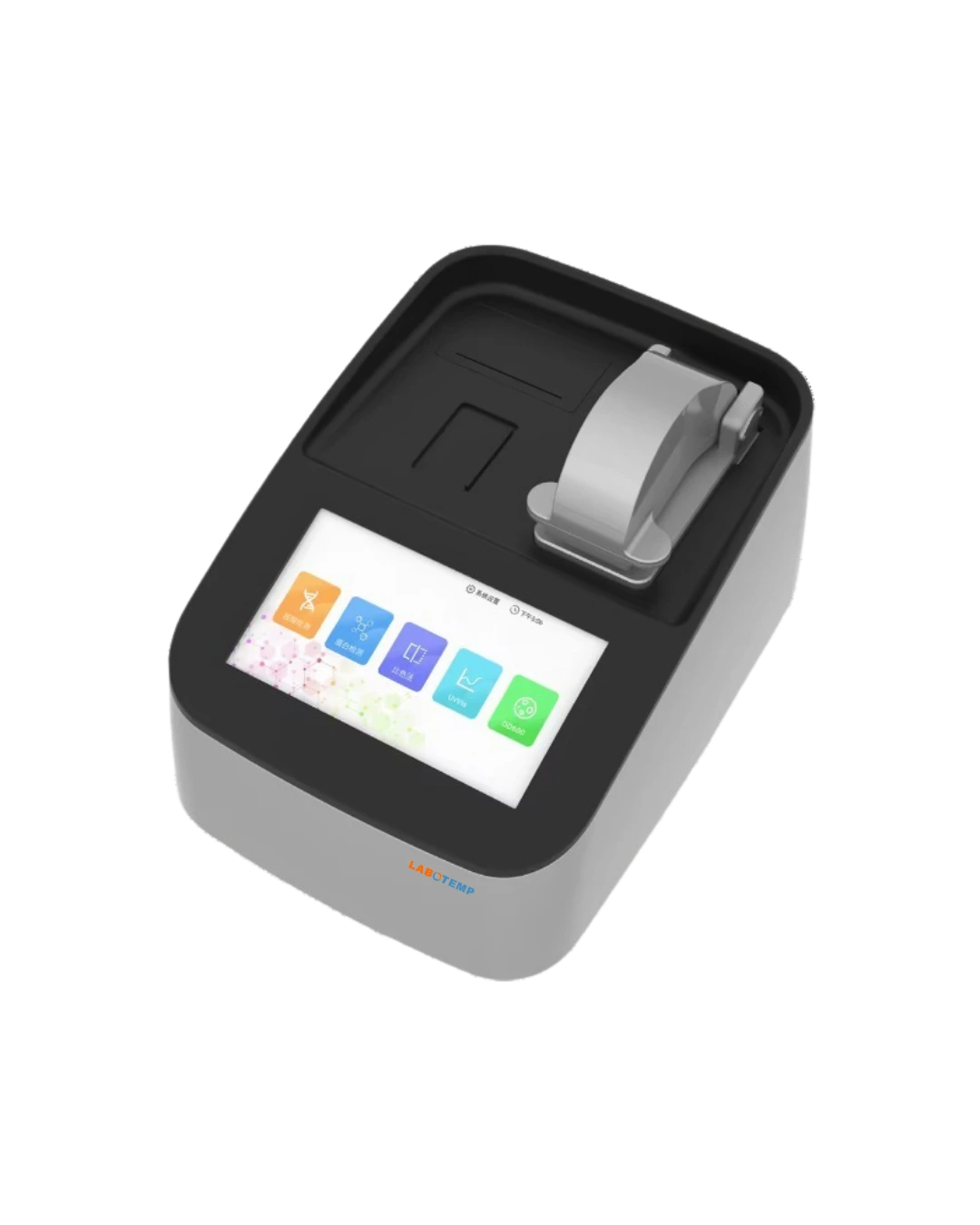

Labotemp Nanodrop Spectrophotometer NSP-01 is a micro-volume spectrophotometer designed for rapid and accurate quantification of nucleic acids, proteins and other biomolecules in modern laboratories. The system requires only 0.5–2 µl sample volume, enabling direct measurement without dilution while preserving valuable samples. With a 190–900 nm wavelength range and 1 nm wavelength accuracy, it delivers reliable absorbance measurements for DNA, RNA and protein analysis. The advanced optical system with automatic path length switching (0.02–1 mm) ensures precise detection across both high and low concentration samples.
The instrument integrates a 2048-unit CMOS linear array detector and xenon flash lamp to provide stable measurements with testing completed in less than 5 seconds. It also supports OD600 detection for monitoring bacterial and yeast cell growth. The durable stainless steel and quartz sample pedestal allows easy cleaning and long-term reliability. Its compact design makes it suitable for molecular biology research, biotechnology laboratories, clinical diagnostics and pharmaceutical testing.
Why Choose Nanodrop Spectrophotometer NSP-01?
✓ Micro-Volume Measurement: Measures DNA, RNA and proteins with just 0.5 µl sample without dilution.
✓ Broad Detection Range: 190–900 nm wavelength range with automatic path switching for different sample concentrations.
✓ ISO & CE Compliant: Built to ISO and CE standards for reliable and safe laboratory performance.
|
Minimum Sample Size : 0.5 µl Minimum Sample Size |
0.5 µl |
|
Wavelength Range : 190 – 900 nm Wavelength Range |
190 – 900 nm |
|
Wavelength Accuracy : 1 nm Wavelength Accuracy |
1 nm |
|
Wavelength Resolution : 1 nm Wavelength Resolution |
1 nm |
|
Optical Path Length : 0.02 / 0.05 / 0.1 / 0.5 / 1 mm (automatic switching) Optical Path Length |
0.02 / 0.05 / 0.1 / 0.5 / 1 mm (automatic switching) |
|
Absorbance Accuracy : ±1% (0.76 at 260 nm) Absorbance Accuracy |
±1% (0.76 at 260 nm) |
|
Absorbance Resolution : 0.002 Abs (at 1 mm path length) Absorbance Resolution |
0.002 Abs (at 1 mm path length) |
|
Absorbance Range : 0 – 750 A (10 mm equivalent) Absorbance Range |
0 – 750 A (10 mm equivalent) |
|
OD600 Absorbance Range : 0 – 4.000 Abs OD600 Absorbance Range |
0 – 4.000 Abs |
|
OD600 Stability : [0–3] ≤0.5%, [3–4] ≤2% OD600 Stability |
[0–3] ≤0.5%, [3–4] ≤2% |
|
OD600 Repeatability : [0–3] ≤0.5%, [3–4] ≤2% OD600 Repeatability |
[0–3] ≤0.5%, [3–4] ≤2% |
|
Nucleic Acid Detection Range : 1.5 – 37500 ng/µl (dsDNA), lower limit 1.5 ng/µl Nucleic Acid Detection Range |
1.5 – 37500 ng/µl (dsDNA), lower limit 1.5 ng/µl |
|
Protein Detection Range : 0.05 – 1110 mg/ml (BSA), 0.03 – 540 mg/ml (IgG) Protein Detection Range |
0.05 – 1110 mg/ml (BSA), 0.03 – 540 mg/ml (IgG) |
|
Sample Pedestal Material : 304 Stainless Steel and Quartz Sample Pedestal Material |
304 Stainless Steel and Quartz |
|
Measurement Time : < 5 seconds Measurement Time |
< 5 seconds |
|
Detector : 2048 unit CMOS linear array sensor Detector |
2048 unit CMOS linear array sensor |
|
Light Source : Xenon Flash Lamp Light Source |
Xenon Flash Lamp |
|
Dimensions (W × D × H) : 310 × 221 × 176 mm Dimensions (W × D × H) |
310 × 221 × 176 mm |
|
Package Size : 320 × 380 × 330 mm Package Size |
320 × 380 × 330 mm |
|
Gross Weight : 9kg Gross Weight |
9kg |
|
Net Weight : 5.2kg Net Weight |
5.2kg |
Wavelength Resolution: 1 nm
Wavelength Range: 190 – 900 nm
Wavelength Accuracy: 1 nm
Sample Pedestal Material: 304 Stainless Steel and Quartz
