Microwave Digester LMD-01

Name: Microwave Digester LMD-01
Brand: Labotemp
SKU: LMD-01
Price: 13710.00 USD
Availability: InStock
Rating: 5 (892 reviews)

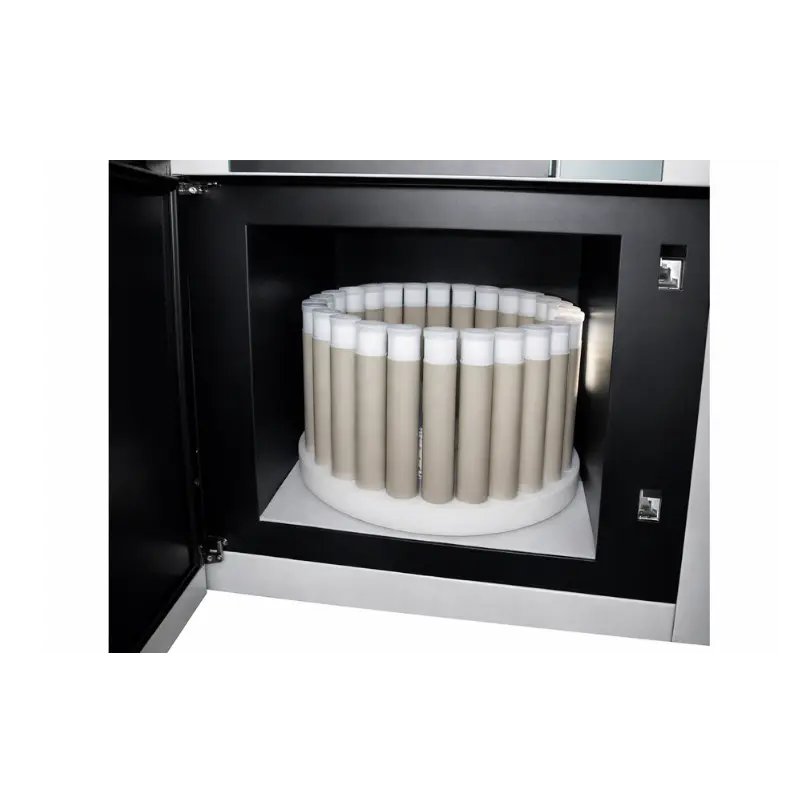

Labotemp Microwave Digestion System LMD-01 is a high-throughput solution designed for fast, safe, and controlled microwave digestion of laboratory samples under elevated temperature and pressure conditions. Equipped with a 16-position rotor, this advanced microwave digester is ideal for food, environmental, pharmaceutical, and research laboratories requiring consistent sample preparation. It features a 66L 316-grade stainless steel cavity with corrosion-resistant construction and an industrial magnetron with continuous frequency conversion control (0–1800W), ensuring uniform microwave distribution and reproducible digestion results.

Engineered for precision and safety, this intelligent digester incorporates non-contact infrared temperature control (0–350°C range, typical operation below 300°C) and real-time pressure monitoring (up to 10 MPa with automatic relief). The 360° continuous rotation system ensures uniform heating across all vessels, improving analytical consistency. A self-locking explosion-proof furnace door, multiple safety interlocks, and automatic fault protection enhance operator safety. With an efficient exhaust and air-cooling system, Siemens PLC control, and durable PTFE inner vessels with PEEK outer protection, the LMD-01 delivers stable performance, energy-efficient operation, and long-term reliability.

Why Choose Labotemp Microwave Digestion System LMD-01?
✓ Advanced safety system: Explosion-proof door with multi-level interlocks
✓ Precise control: Infrared temperature & real-time pressure monitoring
✓ Certified & reliable: Labotemp manufactured, ISO 13485:2016 & CE compliant

$13710

Datasheet User Manual

Number of Reaction Vessels : 16 vessels Number of Reaction Vessels	16 vessels
Power Supply : 220V 50 / 110V 60Hz, 15 A Power Supply	220V 50 / 110V 60Hz, 15 A
Vessel Capacity : 70 ml / 100 ml (optional) Vessel Capacity	70 ml / 100 ml (optional)
Microwave Output Power : 0 – 1800 W (automatic control) Microwave Output Power	0 – 1800 W (automatic control)
Temperature Range : 0 – 350°C (recommended ≤260°C) Temperature Range	0 – 350°C (recommended ≤260°C)
Temperature Accuracy : ±0.5°C Temperature Accuracy	±0.5°C
Pressure Range : 0 – 10 MPa (auto control up to 15 MPa) Pressure Range	0 – 10 MPa (auto control up to 15 MPa)
Microwave Control System : Non-pulse continuous automatic frequency conversion Microwave Control System	Non-pulse continuous automatic frequency conversion
Temperature Control System : Non-contact infrared sensor with real-time monitoring Temperature Control System	Non-contact infrared sensor with real-time monitoring
Pressure Control System : Real-time monitoring with automatic pressure relief Pressure Control System	Real-time monitoring with automatic pressure relief
Control System : Siemens PLC control Control System	Siemens PLC control
Display Interface : 8-inch TFT LCD touch screen Display Interface	8-inch TFT LCD touch screen
Microwave Uniformity : 3D waveguide system with uniform field distribution Microwave Uniformity	3D waveguide system with uniform field distribution
Turntable Design : 360° continuous rotation Turntable Design	360° continuous rotation
Cavity Material : 66 L, 316L stainless steel Cavity Material	66 L, 316L stainless steel
Inner Vessel Material : Imported TFM (modified PTFE) Inner Vessel Material	Imported TFM (modified PTFE)
Outer Vessel Material : Aerospace-grade PEEK Outer Vessel Material	Aerospace-grade PEEK
Explosion Protection : Self-locking explosion-proof door Explosion Protection	Self-locking explosion-proof door
Safety Features : Over-pressure protection, auto shutdown, alarm Safety Features	Over-pressure protection, auto shutdown, alarm
Cooling System : High-power exhaust air cooling Cooling System	High-power exhaust air cooling
Operating Temperature (System) : ≤300°C Operating Temperature (System)	≤300°C
Accessories Included : Temp sensor, vessels, turntable, venting tools Accessories Included	Temp sensor, vessels, turntable, venting tools
Packaging Dimensions (W×D×H) : 720 × 720 × 800 mm Packaging Dimensions (W×D×H)	720 × 720 × 800 mm
Gross Weight : 65 kg Gross Weight	65 kg
Net Weight : 50kg Net Weight	50kg
Acid removal apparatus (Net Weight) : 12kg Acid removal apparatus (Net Weight)	12kg
Acid removal apparatus (Gross Weight) : 20kg Acid removal apparatus (Gross Weight)	20kg
Acid removal apparatus (Packaging Dimension) : 250x250x300mm Acid removal apparatus (Packaging Dimension)	250x250x300mm

Uniform 360° Heating ➤ Uniform 360° Heating
Non-pulse continuous microwave frequency conversion control ➤ Non-pulse continuous microwave frequency conversion control
High-power output up to 1800 W for rapid digestion ➤ High-power output up to 1800 W for rapid digestion
16-position high-throughput digestion capacity ➤ 16-position high-throughput digestion capacity
Non-contact infrared temperature sensing with real-time monitoring ➤ Non-contact infrared temperature sensing with real-time monitoring
Accurate pressure control with automatic pressure relief system ➤ Accurate pressure control with automatic pressure relief system
Siemens PLC-based intelligent control system ➤ Siemens PLC-based intelligent control system
8-inch TFT LCD touch screen with real-time data display ➤ 8-inch TFT LCD touch screen with real-time data display
3D microwave field distribution for uniform heating ➤ 3D microwave field distribution for uniform heating
360° continuous rotation turntable for consistent digestion ➤ 360° continuous rotation turntable for consistent digestion
316L stainless steel large-volume corrosion-resistant cavity ➤ 316L stainless steel large-volume corrosion-resistant cavity
Imported TFM inner vessels with high chemical resistance ➤ Imported TFM inner vessels with high chemical resistance
Aerospace-grade PEEK outer vessels for high-pressure safety ➤ Aerospace-grade PEEK outer vessels for high-pressure safety
Self-locking explosion-proof door with pressure release mechanism ➤ Self-locking explosion-proof door with pressure release mechanism
Automatic shutdown and alarm system for overpressure conditions ➤ Automatic shutdown and alarm system for overpressure conditions
High-efficiency exhaust cooling system for continuous operation ➤ High-efficiency exhaust cooling system for continuous operation
PID-controlled temperature ramping and holding ➤ PID-controlled temperature ramping and holding
Automatic temperature and pressure tracking with curve display ➤ Automatic temperature and pressure tracking with curve display

Acid digestion of environmental, food, and pharmaceutical samples for trace element analysis ➤ Acid digestion of environmental, food, and pharmaceutical samples for trace element analysis
Sample preparation for ICP-OES, ICP-MS, and AAS workflows requiring controlled high-pressure digestion ➤ Sample preparation for ICP-OES, ICP-MS, and AAS workflows requiring controlled high-pressure digestion
Pharmaceutical QC and regulatory testing requiring precise temperature-pressure profiling ➤ Pharmaceutical QC and regulatory testing requiring precise temperature-pressure profiling
Material and chemical analysis of polymers, metals, and inorganic compounds ➤ Material and chemical analysis of polymers, metals, and inorganic compounds
High-throughput digestion in research, academic, and industrial laboratories with validated and repeatable conditions ➤ High-throughput digestion in research, academic, and industrial laboratories with validated and repeatable conditions

Temperature Sensor ➤ Temperature Sensor
PEEK outer tank ➤ PEEK outer tank
Turntable Bracket ➤ Turntable Bracket
PTFE inner tank ➤ PTFE inner tank
