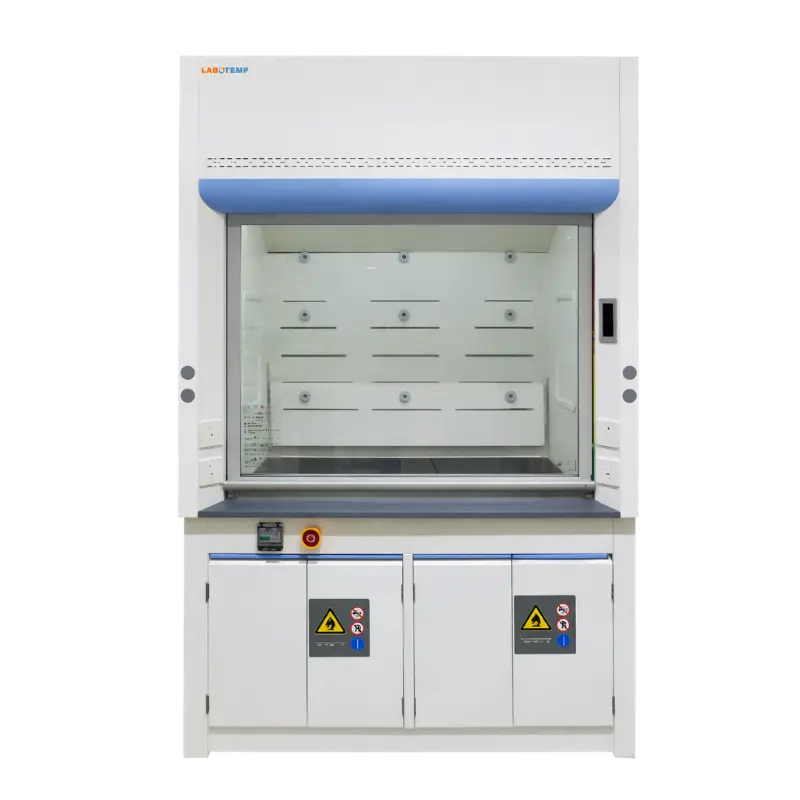

Ducted Fume Hood LFH-01

Name: Ducted Fume Hood LFH-01
Brand: Labotemp
SKU: LFH-01
Price: 3428.00 USD
Availability: InStock
Rating: 4.7 (711 reviews)

Labotemp Ducted Fume Hood LFH-01 is a reliable and high-performance solution engineered for safe handling of hazardous fumes in modern laboratories. Designed as a robust chemical fume hood, it effectively captures and exhausts volatile gases, ensuring operator safety during chemical reactions, sample preparation, and testing procedures. With a recommended external ducting system, this laboratory fume hood maintains consistent airflow (≥0.50 m/s), helping prevent exposure to toxic, flammable, or reactive substances while supporting stable working conditions.

Built with a corrosion-resistant cold-rolled steel body and an acid/alkali-resistant work surface, this fume hood is suitable for demanding environments in chemical, pharmaceutical, academic, and industrial labs. The tempered glass sash, integrated LED lighting, and touch control panel enhance usability and visibility, while safety features like overload protection and proper grounding ensure long-term operational reliability. Its efficient ventilation design and low noise operation make it a dependable choice for continuous laboratory use.

Why Choose Labotemp Ducted Fume Hood LFH-01?
✓ Efficient chemical safety: Designed as a ducted fume hood for reliable exhaust of hazardous fumes and vapors
✓ Trusted manufacturer: Labotemp is an experienced manufacturer of laboratory equipment ensuring consistent quality
✓ Certified & compliant: Manufactured under ISO 13485:2016 standards with CE certification for safety and reliability

$3428

Datasheet

Ambient Temperature : 15°C ~ 35°C Ambient Temperature	15°C ~ 35°C
Power Supply : AC 220 ±22V, 50Hz Power Supply	AC 220 ±22V, 50Hz
Relative Humidity : ≤ 75% Relative Humidity	≤ 75%
Atmospheric Pressure : 70 kPa ~ 106 kPa Atmospheric Pressure	70 kPa ~ 106 kPa
Inlet Wind Speed : ≥ 0.50 m/s Inlet Wind Speed	≥ 0.50 m/s
Vibration Amplitude : ≤ 5 µm (rms) (10Hz–10kHz) Vibration Amplitude	≤ 5 µm (rms) (10Hz–10kHz)
Noise Measurement Condition : Measured at center, 300 mm outward & 380 mm above work surface, ambient ≤ 50 dB Noise Measurement Condition	Measured at center, 300 mm outward & 380 mm above work surface, ambient ≤ 50 dB
Withstand Voltage : 1500 V Withstand Voltage	1500 V
Ground Resistance : ≤ 0.1 Ω Ground Resistance	≤ 0.1 Ω
Topper cabinet : 1200x850x1500mm Topper cabinet	1200x850x1500mm
Down cabinet : 1200x850x850mm Down cabinet	1200x850x850mm
Duct dimension : 4000x315x315mm Duct dimension	4000x315x315mm
Net weight : 450kg Net weight	450kg
Gross weight : 530kg Gross weight	530kg

Corrosion Resistant ➤ Corrosion Resistant
Durable powder-coated steel construction resists corrosion and extends equipment lifespan ➤ Durable powder-coated steel construction resists corrosion and extends equipment lifespan
Chemical-resistant work surface supports handling of aggressive reagents and solvents ➤ Chemical-resistant work surface supports handling of aggressive reagents and solvents
Clear toughened glass sash provides safe visibility and smooth operation ➤ Clear toughened glass sash provides safe visibility and smooth operation
User-friendly control interface allows easy adjustment of airflow and functions ➤ User-friendly control interface allows easy adjustment of airflow and functions
Integrated illumination system enhances workspace clarity for precise tasks ➤ Integrated illumination system enhances workspace clarity for precise tasks
Low vibration and reduced noise design supports comfortable, long-duration use ➤ Low vibration and reduced noise design supports comfortable, long-duration use
Built-in electrical safety mechanisms protect against overload and leakage risks ➤ Built-in electrical safety mechanisms protect against overload and leakage risks
High-quality lab-grade socket ensures safe connection of auxiliary equipment ➤ High-quality lab-grade socket ensures safe connection of auxiliary equipment
Modular internal design enables quick cleaning and maintenance ➤ Modular internal design enables quick cleaning and maintenance
Optimized exhaust structure improves ventilation efficiency when connected to external ducting ➤ Optimized exhaust structure improves ventilation efficiency when connected to external ducting
Designed for continuous operation in controlled indoor laboratory environments ➤ Designed for continuous operation in controlled indoor laboratory environments

 LFH-01 is used for safe handling of volatile, toxic, and flammable gases in controlled indoor labs with ducted exhaust systems ➤ LFH-01 is used for safe handling of volatile, toxic, and flammable gases in controlled indoor labs with ducted exhaust systems
Suitable for chemical reactions, sample prep, and toxic testing in pharma, academic, and industrial labs ➤ Suitable for chemical reactions, sample prep, and toxic testing in pharma, academic, and industrial labs
Supports environments requiring airflow control (≥0 ➤ Supports environments requiring airflow control (≥0
50 m/s), low noise, and electrical safety compliance for operator protection and regulatory workflows ➤ 50 m/s), low noise, and electrical safety compliance for operator protection and regulatory workflows

Fan accessories (Air Value, Exhaust fan, Air duct 2pcs for 1set, Bend 2pcs for 1set, Bend) ➤ Fan accessories (Air Value, Exhaust fan, Air duct 2pcs for 1set, Bend 2pcs for 1set, Bend)
