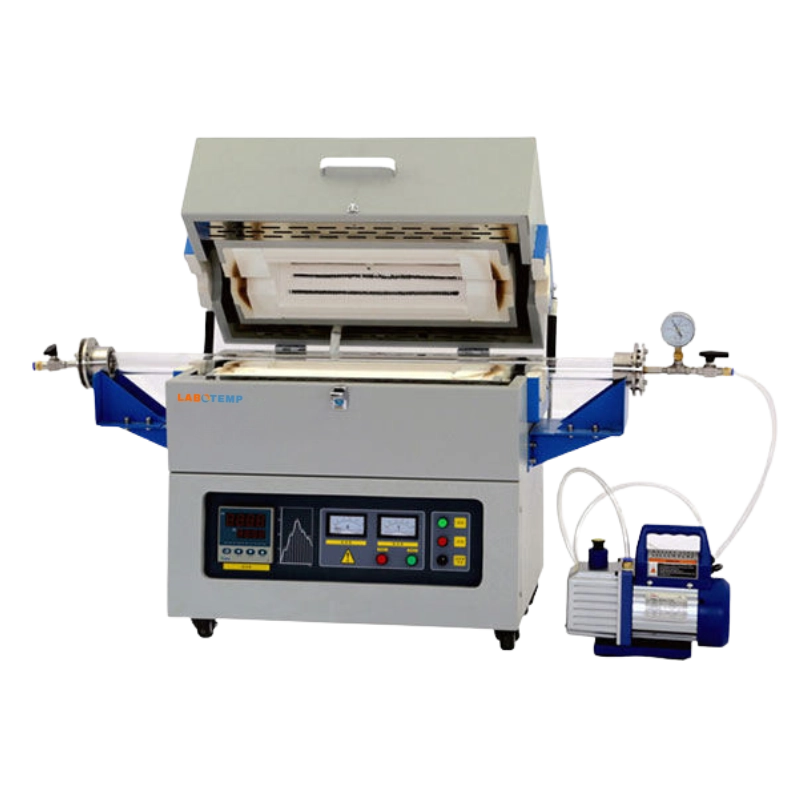

Labotemp Vacuum Tube Furnace FMT-03 is a precision laboratory tube furnace engineered for uniform heat treatment up to 1200°C (working ≤1100°C). It features a ∮40 mm high-purity quartz tube, a 350 mm heating zone and a 1000 mm total tube length. Resistance-wire heating elements combined with advanced PID control and 30-segment programmable temperature curves deliver ±1°C accuracy and ±5°C uniformity.
Manufactured by an experienced furnace manufacturer and supplied through authorised furnace suppliers, the FMT-03 vacuum tube furnace is ideal for material synthesis, annealing, sintering, semiconductor processing, powder metallurgy and nanomaterial research. This vacuum tubular furnace configuration supports controlled-atmosphere processing with optional accessories, making it a reliable lab furnace and electric tube furnace for laboratory and industrial applications.
Why choose Labotemp Tube Furnace FMT-03?
✓ Precision Control: Proven PID thermal control with programmable profiles for stable and repeatable results.
✓ Industry Authority: Developed by a leading furnace manufacturer with deep application expertise.
✓ Robust Design: Durable, compact vacuum tubular furnace built for research and production use.
| No. | Specification | Value |
|---|---|---|
| 1 | Maximum Temperature | 1200°C |
| 2 | Standard Heating Zone Length (mm) | 350 |
| 3 | Chamber Size(mm) | 40*350 |
| 4 | Standard Tube Diameter (mm) | ∮40 |
| 5 | Total Length of Furnace Tube (mm) | 1000 |
| 6 | External Size | 650×420×665 mm |
| 7 | Working Temperature | ≤1100 |
| 8 | Heating Rate (℃/min) | 0 ~ 20℃/min |
| 9 | Temperature Accuracy | ±1 |
| 10 | Temperature Uniformity | ±5 |
| 11 | Furnace Tube Material | Quartz Tube |
| 12 | Heating Element | Resistance Wire |
| 13 | Thermocouple Type | K Type |
| 14 | Chamber Material | Alumina Ceramic Fiber |
| 15 | Power Supply | AC 220V, 50Hz/60Hz |
| 16 | Net Weight | 70kg |
| 17 | Gross weight | 90kg |
| 18 | Accessories Weight | 7Kg |
| 19 | Accessories Package Size | 1080x175x185mm |
| 20 | Main Unit Packaging Size | 995x585x1015mm |
Used for material synthesis, annealing, sintering, semiconductor processing, powder metallurgy, nanomaterial preparation, and thermal stability testing in research and industrial applications
