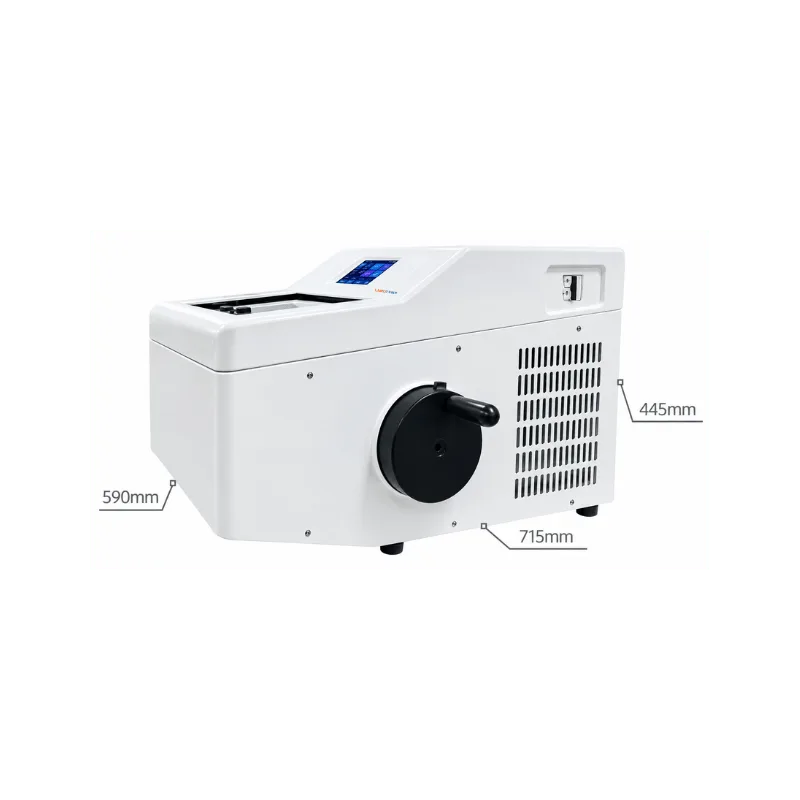

Labotemp Portable Bench Top Cryostat Microtome CRM-03 combines controlled low temperature refrigeration with precision tissue sectioning for frozen specimen preparation. Designed as a compact cryotome, it features a refrigerated cryo chamber, specimen head, knife or blade holder, and freezing shelves to support controlled sectioning conditions. The specimen head provides precise feeding through a high precision stepper motor system, with section thickness from 0.5 to 100 µm and a default setting of 6 µm.
The Portable Cryostat Microtome CRM-03 features a 5 inch color LCD touch screen, specimen head position memory, 360° specimen positioning, three freezing stations, and a specimen head temperature range of −5 to −50°C. Its compact bench top design, 70 kg weight, UV disinfection function, integrated lighting, and adjustable knife or blade holder make it suitable for frozen section preparation in pathology, histology, biomedical research, and other laboratory applications where thin frozen tissue sections are required. Cryostat microtomes are used to section frozen tissue at low temperatures for microscopic examination and frozen section histology.
Why Choose Labotemp Portable Bench Top Cryostat Microtome CRM-03?
✓ Wide Temperature Control: Supports specimen head temperatures from −5 to −50°C for controlled frozen sectioning.
✓ Intelligent Sectioning: Specimen head position memory allows the feeding location to be recalled after replacing the tissue specimen.
✓ Compact Bench Top Design: Portable construction with a 590 × 715 × 445 mm footprint and 70 kg weight supports flexible laboratory installation.
| No. | Specification | Value |
|---|---|---|
| Sectioning Parameters | ||
| 1 | Product Type | Portable Bench Top Cryostat Microtome |
| 2 | Section Thickness | 0.5 to 100 µm, default 6 µm |
| 3 | Section Thickness Setting | 0.5 to 5 µm, step 0.5 µm 5 to 20 µm, step 1 µm 20 to 60 µm, step 5 µm 60 to 100 µm, step 10 µm |
| 4 | Trim Thickness | 1 to 600 µm, default 20 µm |
| 5 | Trim Thickness Setting | 1 to 20 µm, step 1 µm 20 to 50 µm, step 5 µm 50 to 100 µm, step 10 µm 100 to 600 µm, step 50 µm |
| 6 | Feeding Drive Mode | Stepper motor feeding, precise and stable |
| 7 | Specimen Head Memory | Memorizes specimen head feeding position and recalls the position with one click |
| 8 | Specimen Head Retraction | 0 to 250 µm, default 20 µm |
| 9 | Coarse Feeding Speed | 900 to 2000 µm/s, default 1800 µm/s |
| 10 | Fine Feeding Speed | 100 to 900 µm/s, default 300 µm/s |
| 11 | Horizontal Stroke of Specimen Head | 25 ± 1 mm |
| 12 | Vertical Stroke of Specimen Head | 60 ± 1 mm |
| 13 | Specimen Positioning | 360° specimen disc rotation, 0 digit indication |
| 14 | Specimen Head Return | Fast return speed of 2000 µm/s |
| 15 | Handwheel Lock | Locking positions at 0 o'clock and 12 o'clock |
| Refrigeration Parameters | ||
| 16 | Knife or Blade Holder | Compatible with high profile and low profile blades |
| 17 | Knife or Blade Holder Movement | Horizontal movement of 48 mm |
| 18 | Knife or Blade Angle Adjustment | 0 to 15° |
| 19 | Refrigeration Positions | Cryo chamber, specimen head, knife holder, and freezing shelves |
| 20 | Temperature Display | Cryo chamber, specimen head, knife holder, and freezing shelf temperatures |
| 21 | Specimen Head Temperature | −5 to −50°C, default −15°C |
| 22 | Refrigeration Method | One compressor |
| 23 | Number of Freezing Stations | 3 |
| 24 | Disinfection Function | UVC disinfection, manual disinfection, 30 min, 60 min, 180 min optional |
| Auxiliary Parameters | ||
| 25 | Lighting | Sliding window with induction automatic lighting |
| 26 | Data Accumulation | Section and trim thickness and times are cumulative and zeroable |
| 27 | Automatic Standby | 1 to 60 min, default 5 min |
| 28 | Knife or Blade Anti Collision | Supports knife position marking and re marking after holder movement |
| 29 | Audio Alerts | Audio alerts when specimen head reaches front or rear limit |
| 30 | Screen | 5 inch color LCD touch screen |
| 31 | Sliding Window | Single pane |
| 32 | Key Panel | Physical keypad for fast forward, fast backward, slow forward, slow backward, thickness modification, and section or trim conversion |
| General Specifications | ||
| 33 | Power Consumption | 370 W |
| 34 | Rated Voltage and Frequency | 220V/50Hz and 110V/60Hz |
| 35 | Dimensions | 590 × 715 × 445 mm, handle included |
| 36 | Packaging Dimensions | 877 x 730 x 645 mm |
| 37 | Net Weight | 70 kg |
| 38 | Gross Weight | 116 kg |
Histopathology Laboratories: Suitable for preparing frozen tissue sections for microscopic histopathological examination. Cryostat microtomes are routinely used for frozen sectioning in histopathology workflows.
Clinical Pathology: Supports rapid preparation of frozen sections when tissue examination is required during surgical procedures.
Biomedical Research: Suitable for sectioning frozen biological specimens for microscopic research and tissue studies.
Neuroscience Research: Supports preparation of frozen brain and other biological tissue sections for microscopic examination.
Histology Research: Useful for preparing thin frozen tissue sections while preserving structures and components that may be affected by conventional fixation and processing.
