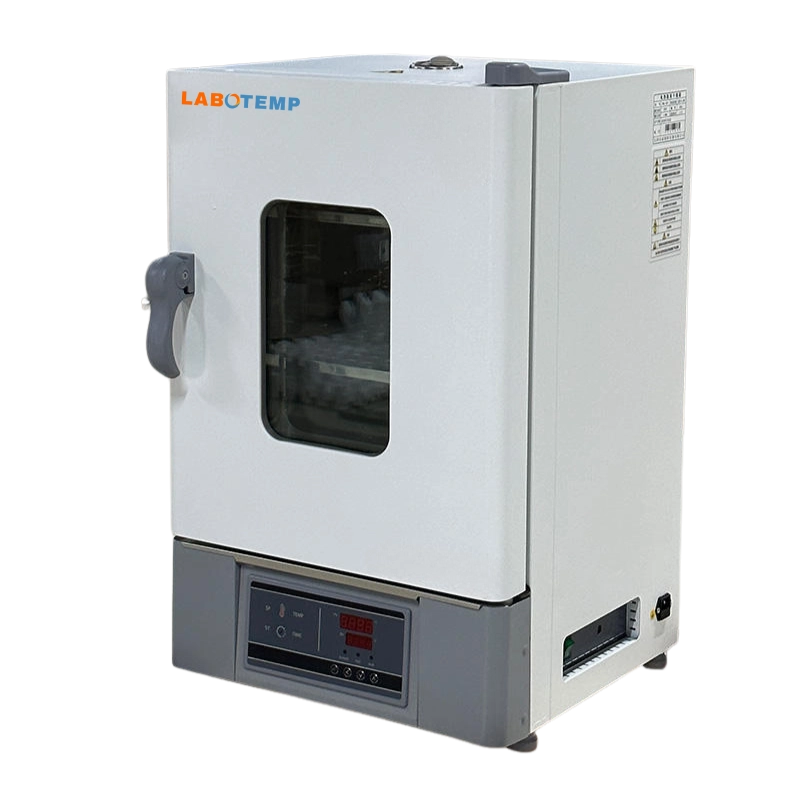

Labotemp Blast Drying Oven FOV-05 delivers controlled hot-air drying, baking, wax melting, and heat treatment in a compact 30 L chamber. Designed with a forced-convection airflow system, the oven circulates heated air through the chamber to support uniform temperature distribution. It operates from RT+10°C to 300°C, with 0.1°C temperature resolution, ±1.0°C temperature fluctuation, and ±2.0% temperature distribution accuracy, making it suitable for routine laboratory heating and drying applications.
The FOV-05 features a 5-inch color touchscreen with fuzzy PID temperature control, providing convenient monitoring and adjustment of operating conditions. Its mirror stainless-steel interior, chemical-resistant coated cold-rolled steel exterior, silica/aluminum-silicate fiber insulation, Pt100 sensor, stainless-steel heating pipe, and forced-air circulation system support consistent thermal operation. The programmable controller can store up to 50 experimental programs with 50 steps per program, while timer operation, scheduled operation, automatic stop, temperature deviation correction, menu locking, and over-temperature protection support controlled laboratory workflows.
Why Choose Labotemp Blast Drying Oven FOV-05?
✓ Compact 30 L Capacity: Provides a practical chamber size for routine laboratory drying and heating tasks.
✓ Fuzzy PID Control: 5-inch touchscreen control provides responsive temperature regulation with 0.1°C resolution.
✓ Programmable Operation: Stores up to 50 programs with 50 steps per program for controlled temperature processes.
| No. | Specification | Value |
|---|---|---|
| Temperature & Control | ||
| 1 | Chamber Capacity | 30 L |
| 2 | Temperature Range | RT+10°C to 300°C |
| 3 | Temperature Resolution | 0.1°C |
| 4 | Temperature Fluctuation | ±1.0°C |
| 5 | Temperature Distribution Accuracy | ±2.0% |
| 6 | Controller | 5-inch color touchscreen |
| 7 | Temperature Control | Fuzzy PID |
| 8 | Sensor | Pt100 |
| 9 | Timer Range | 0–9999 minutes |
| 10 | Program Capacity | 50 programs × 50 steps |
| 11 | Program Step Time | 0–6000 minutes per step |
| 12 | Operating Functions | Fixed-value operation, timed operation, automatic stop, scheduled start |
| Chamber & Air Circulation | ||
| 13 | Air Circulation | Dual-channel forced convection |
| 14 | Fan | Variable-speed fan |
| 15 | Interior Material | Mirror stainless steel |
| 16 | Exterior Material | Cold-rolled steel with chemical-resistant coating |
| 17 | Insulation Material | Silica/aluminum-silicate fiber |
| 18 | Heating Element | Stainless steel heating pipe |
| 19 | Air Vent | Ø28 mm × 1, top |
| 20 | Partition Load Capacity | 15 kg |
| 21 | Number of Layers / Standard Layers | 5 / 2 |
| 22 | Partition Spacing | 40 mm |
| Dimensions & Capacity | ||
| 23 | Internal Dimensions (W × D × H) | 310 × 310 × 310 mm |
| 24 | External Dimensions (W × D × H) | 428 x 505 x 710 mm |
| 25 | Package Dimensions (W × D × H) | 552 x 578 x 840 mm |
| 26 | Net Weight | 32 kg |
| 27 | Gross Weight | 37 kg |
| Electrical | ||
| 28 | Rated Power | 0.8 kW |
| 29 | Power Supply | AC 220 V/ 120 V |
| 30 | Rated Current | 3.6 A |
| 31 | Frequency | 50/60 Hz |
| Safety & Additional Functions | ||
| 32 | Safety Device | Anti-temperature-rise device |
| 33 | Over-Temperature Protection | Standard |
| 34 | Additional Functions | Temperature deviation correction, menu locking, power-failure memory |
| 35 | Data Interface | RS485 available |
Laboratory Drying: Suitable for drying laboratory glassware, samples, materials, and components under controlled hot-air conditions.
Sample Preparation: Supports controlled heating and drying steps during laboratory sample preparation.
Baking Applications: Suitable for laboratory processes requiring controlled baking at elevated temperatures.
Wax Melting: Can be used for controlled melting of wax and similar materials.
Heat Treatment: Supports laboratory-scale heat treatment processes requiring temperatures up to 300°C.
Research & Development: Suitable for controlled thermal experiments and material research in laboratories.
Educational Laboratories: Useful for teaching and demonstration of controlled drying, heating, and thermal treatment processes.
