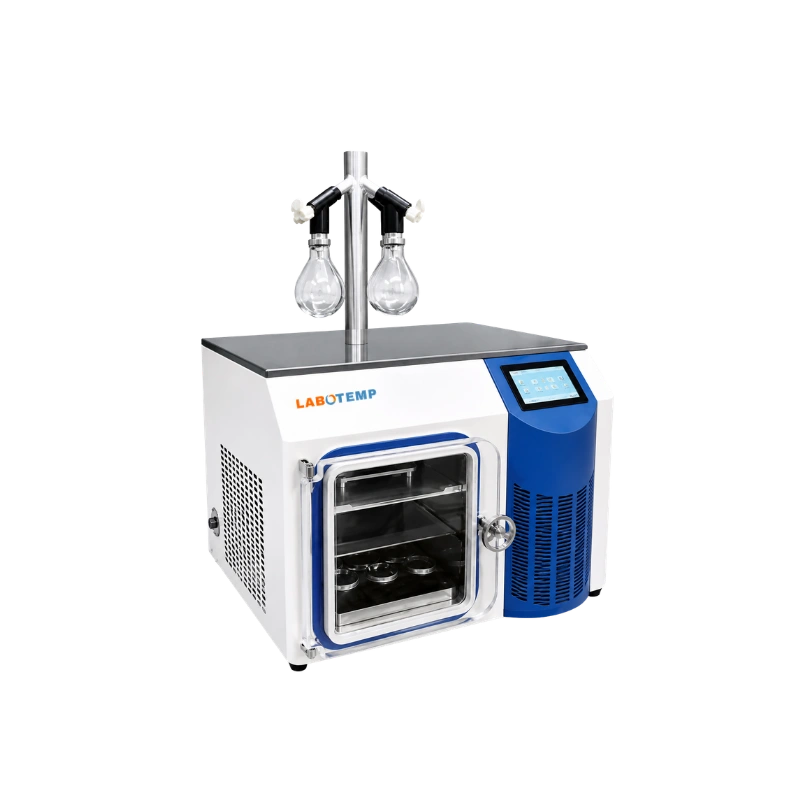

Small Freeze Dryer LFD-301

Name: Small Freeze Dryer LFD-301
Brand: Labotemp
SKU: LFD-301
Price: 14474.00 USD
Availability: InStock
Rating: 4.9 (609 reviews)

Labotemp Small Freeze Dryer LFD-301 delivers reliable lyophilization for pharmaceutical, biotechnology, food, and research laboratories handling heat-sensitive samples. Designed as a compact benchtop freeze dryer, it combines an -88°C cold trap, 0.1 m² freeze-drying area, 40 L chamber capacity, and 11 L cold trap capacity to achieve efficient moisture removal while preserving sample structure and biological activity. With a shelf temperature range of -60°C to +70°C, ±2°C temperature accuracy, ≤0.1 Pa ultimate vacuum, and up to 3 kg/24 h water trapping efficiency, the system provides stable and repeatable freeze-drying performance for biological specimens, enzymes, pharmaceuticals, plant extracts, and laboratory chemicals.

Built for dependable daily operation, the LFD-301 features a 7-inch touchscreen PLC controller with programmable drying cycles, real-time monitoring of vacuum and temperature, data logging, and USB export for complete process traceability. The in-situ freeze-drying chamber eliminates sample transfer, reducing contamination risk, while automatic cold trap defrosting, intelligent diagnostics, audible alarms, vacuum protection, and an energy-efficient refrigeration system enhance operational safety and long-term reliability.

Why Choose Labotemp Small Freeze Dryer LFD-301?

✓ Efficient Freeze Drying: -88°C cold trap, 0.1 m² freeze-drying area, 40 L chamber, and 3 kg/24 h water trapping capacity deliver fast, consistent lyophilization.
✓ Intelligent Operation: 7-inch touchscreen PLC, programmable drying methods, real-time monitoring, USB data export, and comprehensive process data management.
✓ Long-Term Laboratory Performance: Energy-efficient refrigeration, corrosion-resistant stainless steel construction, intelligent diagnostics, and low-maintenance operation ensure dependable daily use.

$14474

Datasheet

General Specifications
Chamber Capacity : 40 L Chamber Capacity	40 L
Cold Trap Temperature : -88°C Cold Trap Temperature	-88°C
Cold Trap Capacity : 11 L Cold Trap Capacity	11 L
Freeze-Drying Area : 0.1 m² Freeze-Drying Area	0.1 m²
Maximum Ice Trapping Capacity : 4 kg Maximum Ice Trapping Capacity	4 kg
Water Trapping Capacity : 3 kg / 24 h Water Trapping Capacity	3 kg / 24 h
Power Supply : As specified by configuration Power Supply	As specified by configuration
Applicable Environment : Suitable for laboratory operation Applicable Environment	Suitable for laboratory operation
Freeze-Drying Parameters
Shelf Temperature Range : -60°C to +70°C Shelf Temperature Range	-60°C to +70°C
Shelf Temperature Accuracy : < ±2°C Shelf Temperature Accuracy	< ±2°C
Ultimate Vacuum Degree : ≤0.1 Pa (no-load, slightly varies with vacuum pump) Ultimate Vacuum Degree	≤0.1 Pa (no-load, slightly varies with vacuum pump)
Vacuum Display Accuracy : 0.1 Pa Vacuum Display Accuracy	0.1 Pa
Pumping Speed : ≤15 min (atmospheric pressure to 10 Pa) Pumping Speed	≤15 min (atmospheric pressure to 10 Pa)
Vial Capacity Ø22 mm : 216 vials Vial Capacity Ø22 mm	216 vials
Vial Capacity Ø16 mm : 400 vials Vial Capacity Ø16 mm	400 vials
Vial Capacity Ø12 mm : 726 vials Vial Capacity Ø12 mm	726 vials
Shelf Dimension : 270 × 400 mm Shelf Dimension	270 × 400 mm
Number of Shelf Layers : 1 layer Number of Shelf Layers	1 layer
Shelf Spacing : 150 mm Shelf Spacing	150 mm
Operation
Control System : 7-inch LCD touchscreen control system Control System	7-inch LCD touchscreen control system
Programmable Programs : Up to 40 customizable lyophilization programs Programmable Programs	Up to 40 customizable lyophilization programs
Programmable Segments : Up to 40 programmable process segments per program Programmable Segments	Up to 40 programmable process segments per program
Operating Modes : Manual parameter setting and pre-validated one-touch startup Operating Modes	Manual parameter setting and pre-validated one-touch startup
Process Monitoring : Real-time vacuum pressure, shelf temperature, chamber temperature, and elapsed process time monitoring Process Monitoring	Real-time vacuum pressure, shelf temperature, chamber temperature, and elapsed process time monitoring
Data Logging : Automatic runtime logging and historical lyophilization record storage Data Logging	Automatic runtime logging and historical lyophilization record storage
Data Storage : Stores more than 10,000 complete process records Data Storage	Stores more than 10,000 complete process records
Data Export : USB data export Data Export	USB data export
User Management : Three-tier role-based access control with password authentication User Management	Three-tier role-based access control with password authentication
Vacuum Measurement : Pirani vacuum gauge Vacuum Measurement	Pirani vacuum gauge
Vacuum Pump : High-performance vacuum pump Vacuum Pump	High-performance vacuum pump
Vacuum Protection : Integrated anti-backstreaming protection during power interruption Vacuum Protection	Integrated anti-backstreaming protection during power interruption
Defrost System : Electrically actuated cold trap defrosting Defrost System	Electrically actuated cold trap defrosting
System Diagnostics : Real-time self-check of refrigeration, vacuum, and other critical subsystems System Diagnostics	Real-time self-check of refrigeration, vacuum, and other critical subsystems
Alerts : Audible and on-screen alarms with event time stamping Alerts	Audible and on-screen alarms with event time stamping
Maintenance : Vacuum pump service reminders and predictive maintenance monitoring Maintenance	Vacuum pump service reminders and predictive maintenance monitoring
Remote Operation : Remote activation/deactivation capability Remote Operation	Remote activation/deactivation capability
Drying Method : In-situ freeze drying within the chamber Drying Method	In-situ freeze drying within the chamber
Chamber Door : Colorless, optically transparent door for sample observation Chamber Door	Colorless, optically transparent door for sample observation
Refrigeration System : Parallel shelf-cold trap configuration with high-performance refrigeration Refrigeration System	Parallel shelf-cold trap configuration with high-performance refrigeration
Shelf Temperature Control : Advanced shelf temperature control for uniform heat transfer Shelf Temperature Control	Advanced shelf temperature control for uniform heat transfer
Refrigeration Heating Rate : Up to 3.5°C/min Refrigeration Heating Rate	Up to 3.5°C/min
Data Security : Anti-loss protection for stored process data Data Security	Anti-loss protection for stored process data
Physical Dimensions
External Dimensions (W × D × H) : 820 × 695 × 600 mm External Dimensions (W × D × H)	820 × 695 × 600 mm
Shipping Dimensions (W × D × H) : 940 × 850 × 990 mm Shipping Dimensions (W × D × H)	940 × 850 × 990 mm
Freeze Dryer & Pump Dimensions : 610 × 230 × 310 mm Freeze Dryer & Pump Dimensions	610 × 230 × 310 mm
Gross Weight : 180 kg Gross Weight	180 kg

≤0.1 Pa Vacuum ➤ ≤0.1 Pa Vacuum
-88°C cold trap for efficient moisture capture during lyophilization ➤ -88°C cold trap for efficient moisture capture during lyophilization
0.1 m² freeze-drying area for routine laboratory sample processing ➤ 0.1 m² freeze-drying area for routine laboratory sample processing
11 L cold trap capacity for extended freeze-drying operation ➤ 11 L cold trap capacity for extended freeze-drying operation
≤0.1 Pa ultimate vacuum for efficient sublimation and moisture removal ➤ ≤0.1 Pa ultimate vacuum for efficient sublimation and moisture removal
-60°C to +70°C shelf temperature range for flexible process control ➤ -60°C to +70°C shelf temperature range for flexible process control
In-situ freeze drying eliminates the need to transfer samples before or during lyophilization ➤ In-situ freeze drying eliminates the need to transfer samples before or during lyophilization
Transparent optically clear chamber door provides unobstructed sample observation ➤ Transparent optically clear chamber door provides unobstructed sample observation
Electrically actuated cold trap defrosting simplifies post-cycle recovery ➤ Electrically actuated cold trap defrosting simplifies post-cycle recovery
Parallel shelf-cold trap configuration supports improved thermal uniformity ➤ Parallel shelf-cold trap configuration supports improved thermal uniformity
7-inch LCD touchscreen provides intuitive parameter setting and process visualization ➤ 7-inch LCD touchscreen provides intuitive parameter setting and process visualization
Up to 40 customizable lyophilization programs with up to 40 programmable process segments ➤ Up to 40 customizable lyophilization programs with up to 40 programmable process segments
Manual parameter setting and pre-validated one-touch startup for flexible operation ➤ Manual parameter setting and pre-validated one-touch startup for flexible operation
Storage capacity for more than 10,000 complete process records ➤ Storage capacity for more than 10,000 complete process records
Three-tier role-based access control with password authentication supports audit-compliant operation ➤ Three-tier role-based access control with password authentication supports audit-compliant operation
Real-time system diagnostics monitor refrigeration, vacuum, and other critical subsystems ➤ Real-time system diagnostics monitor refrigeration, vacuum, and other critical subsystems
Audible and on-screen alerts provide timely notification of system conditions ➤ Audible and on-screen alerts provide timely notification of system conditions
Integrated vacuum protection helps prevent vacuum pump oil ingress during power interruption ➤ Integrated vacuum protection helps prevent vacuum pump oil ingress during power interruption
Remote activation and deactivation capability supports convenient system management ➤ Remote activation and deactivation capability supports convenient system management

Pharmaceutical Research: Freeze drying of pharmaceutical formulations, APIs, vaccines, and other moisture-sensitive materials Pharmaceutical Research
Freeze drying of pharmaceutical formulations, APIs, vaccines, and other moisture-sensitive materials
Biotechnology: Preservation of proteins, enzymes, biological samples, cultures, and other temperature-sensitive biomaterials Biotechnology
Preservation of proteins, enzymes, biological samples, cultures, and other temperature-sensitive biomaterials
Clinical Laboratories: Lyophilization of diagnostic reagents, biological specimens, and laboratory reference materials Clinical Laboratories
Lyophilization of diagnostic reagents, biological specimens, and laboratory reference materials
Microbiology: Preservation and stabilization of microbial cultures and biological preparations for research and storage Microbiology
Preservation and stabilization of microbial cultures and biological preparations for research and storage
Food & Nutraceutical Research: Freeze drying of probiotics, food extracts, nutritional ingredients, and heat-sensitive food materials Food & Nutraceutical Research
Freeze drying of probiotics, food extracts, nutritional ingredients, and heat-sensitive food materials
Molecular Biology: Processing of enzymes, reagents, biological samples, and other moisture-sensitive research materials Molecular Biology
Processing of enzymes, reagents, biological samples, and other moisture-sensitive research materials
Plant & Natural Product Research: Freeze drying of plant extracts, botanical samples, and natural compounds while minimizing thermal degradation Plant & Natural Product Research
Freeze drying of plant extracts, botanical samples, and natural compounds while minimizing thermal degradation
Laboratory R&D: Suitable for formulation development, process optimization, stability studies, sample preparation, and controlled lyophilization research Laboratory R&D
Suitable for formulation development, process optimization, stability studies, sample preparation, and controlled lyophilization research
