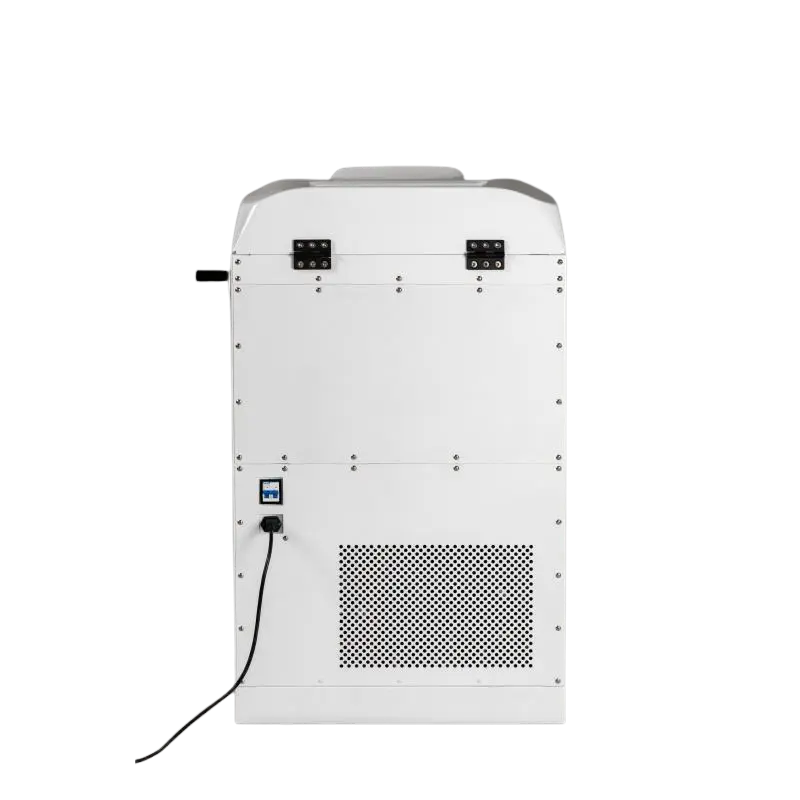

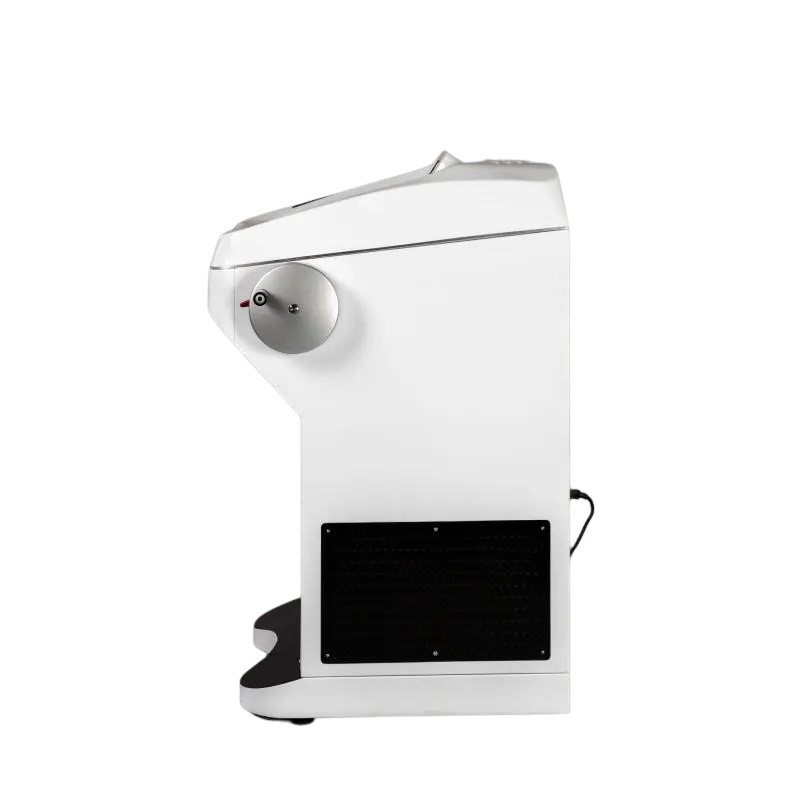

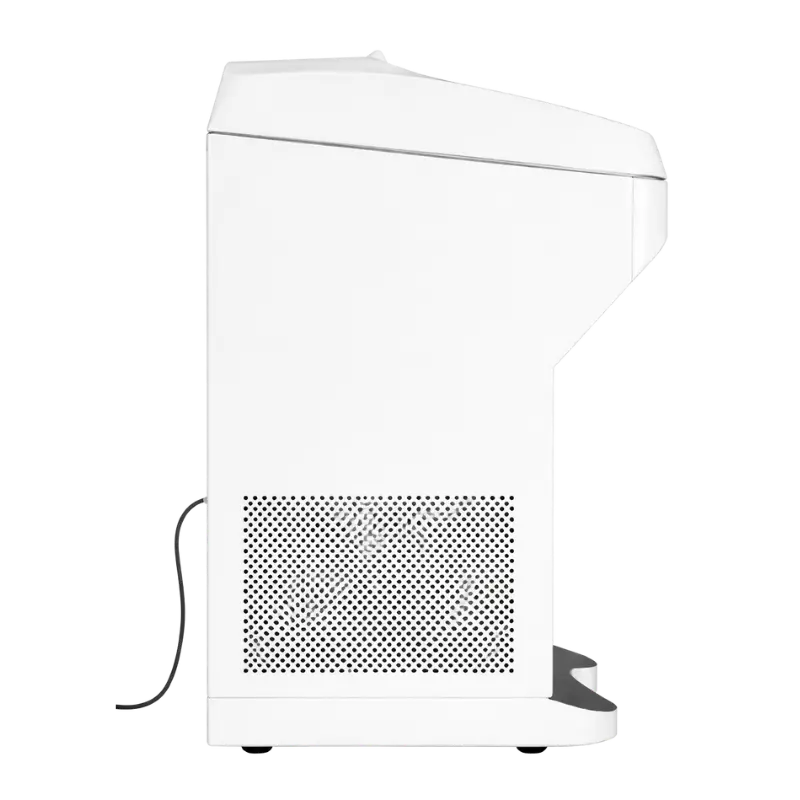

Labotemp Cryostat Microtome CRM-01, also known as a freezing microtome or cryotome, is a specialized microtome machine used in microtomy in histopathology for rapid frozen tissue sectioning. Designed for precise cryostat sectioning of fresh and frozen tissue, the CRM-01 supports accurate intraoperative diagnosis and urgent pathology workflows. This advanced cryostat microtome produces uniform thin sections with an adjustable cut thickness from 0.5 µm to 100 µm, enabling reliable microtomy and consistent sample preparation for laboratory microscopy.
The fully enclosed cryogenic chamber operates from 0°C to –60°C, providing stable freezing conditions for dependable performance. Controlled specimen movement with 65 mm vertical stroke, 22 mm horizontal stroke, and 100 µm specimen retraction improves section quality and protects the blade. A rigid microtome blade holder supports disposable microtome blades and microtome knives, maintaining a clean cutting edge for reproducible sections.
Why choose Labotemp Cryostat Microtome CRM-01?
✓ Wide thickness range: Accurate frozen sectioning from 0.5–100 µm
✓ Stable cryostat sectioning: Controlled freezing down to –60°C
✓ Safe laboratory operation: Integrated UV disinfection and enclosed chamber
|
Section thickness range : 0.5µm to 100µm adjustable<br> 0.5µm to 5µm in 0.5µm increment<br> 5µm to 20µm in 1µm increment<br> 20µm to 50µm in 2µm increment<br> 50µm to 100µm in 5µm increment Section thickness range |
0.5µm to 100µm adjustable 0.5µm to 5µm in 0.5µm increment 5µm to 20µm in 1µm increment 20µm to 50µm in 2µm increment 50µm to 100µm in 5µm increment |
|
Trimming thickness range : 1µm to 600µm adjustable<br> 0µm to 50µm in 5µm increment<br> 50µm to 100µm in 10µm increment<br> 100µm to 600µm in 50µm increment Trimming thickness range |
1µm to 600µm adjustable 0µm to 50µm in 5µm increment 50µm to 100µm in 10µm increment 100µm to 600µm in 50µm increment |
|
Tissue retraction function : 0 to 100 µm adjustable in 2 µm increment Tissue retraction function |
0 to 100 µm adjustable in 2 µm increment |
|
Pellet cooling working time : 15 minutes Pellet cooling working time |
15 minutes |
|
Freezing chamber temperature range : −10 °C to −40 °C Freezing chamber temperature range |
−10 °C to −40 °C |
|
Speed of fast forward and backward : 0.9 m/s, 0.45 m/s Speed of fast forward and backward |
0.9 m/s, 0.45 m/s |
|
Specimen head minimum temperature : 0 °C to −60 °C Specimen head minimum temperature |
0 °C to −60 °C |
|
Maximum specimen size : 55×60 mm Maximum specimen size |
55×60 mm |
|
Freeze shelf minimum temperature : 0 °C to −55 °C Freeze shelf minimum temperature |
0 °C to −55 °C |
|
Specimen vertical stroke : 65 mm Specimen vertical stroke |
65 mm |
|
Lowest temperature of Peltier units on freezing shelf : −60 °C Lowest temperature of Peltier units on freezing shelf |
−60 °C |
|
Specimen horizontal stroke : 22 mm Specimen horizontal stroke |
22 mm |
|
Power : 1500 W Power |
1500 W |
|
Voltage and frequency : AC 220 V / 50 Hz Voltage and frequency |
AC 220 V / 50 Hz |
|
Dimensions (W × D × H) : 700×780×1650 mm Dimensions (W × D × H) |
700×780×1650 mm |
|
Disinfection method : UV Disinfection method |
UV |
|
Net weight : 210 kg Net weight |
210 kg |
|
Gross Weight : 225 kg Gross Weight |
225 kg |
|
Package Size : 930x870x1450 mm Package Size |
930x870x1450 mm |
Voltage and frequency: AC 220 V / 50 Hz
Trimming thickness range: 1µm to 600µm adjustable
0µm to 50µm in 5µm increment
50µm to 100µm in 10µm increment
100µm to 600µm in 50µm increment
Tissue retraction function: 0 to 100 µm adjustable in 2 µm increment
Speed of fast forward and backward: 0.9 m/s, 0.45 m/s
Voltage and frequency: AC 220 V / 50 Hz
Trimming thickness range: 10 µm to 600 µm adjustable
10 µm to 50 µm, in 5 µm increment
50 µm to 100 µm, in 10 µm increment
100 µm to 600 µm, in 50 µm increment
Tissue retraction function: 0–100 µm adjustable in 5 µm increment
Speed of fast forward / backward: 0.9 m/s, 0.45 m/s
