Combined Refrigerator And Freezer CFR-03

Labotemp Combined Refrigerator And Freezer

Combined Refrigerator And Freezer CFR-03

Name: Combined Refrigerator And Freezer CFR-03
Brand: Labotemp
SKU: CFR-03
Price: 4715.00 USD
Availability: InStock
Rating: 4.9 (969 reviews)

Labotemp Combined Refrigerator and Freezer CFR 03 provides dual temperature storage in a single cabinet, combining a 280L refrigerator compartment operating from 2 to 8°C with a 120L freezer compartment operating from −10 to −40°C. The unit uses a single compressor refrigeration system with electronic temperature control, audible and visual alarms, and a PTC probe for temperature monitoring. Its 304 stainless steel interior provides a durable and easy to clean storage environment for laboratories, hospitals, and pharmaceutical facilities.

The refrigerator compartment features automatic defrost, while the freezer compartment uses manual defrost to support its low temperature operation. A USB and SD data port allows temperature data to be transferred for monitoring and record keeping. With 120 mm insulation, stainless steel interior construction, powder coated steel exterior, and organized storage with stainless steel shelves and inner doors, CFR 03 provides practical dual temperature storage for vaccines, reagents, biological samples, and other temperature sensitive materials.

Why Choose Labotemp Combined Refrigerator and Freezer CFR 03?

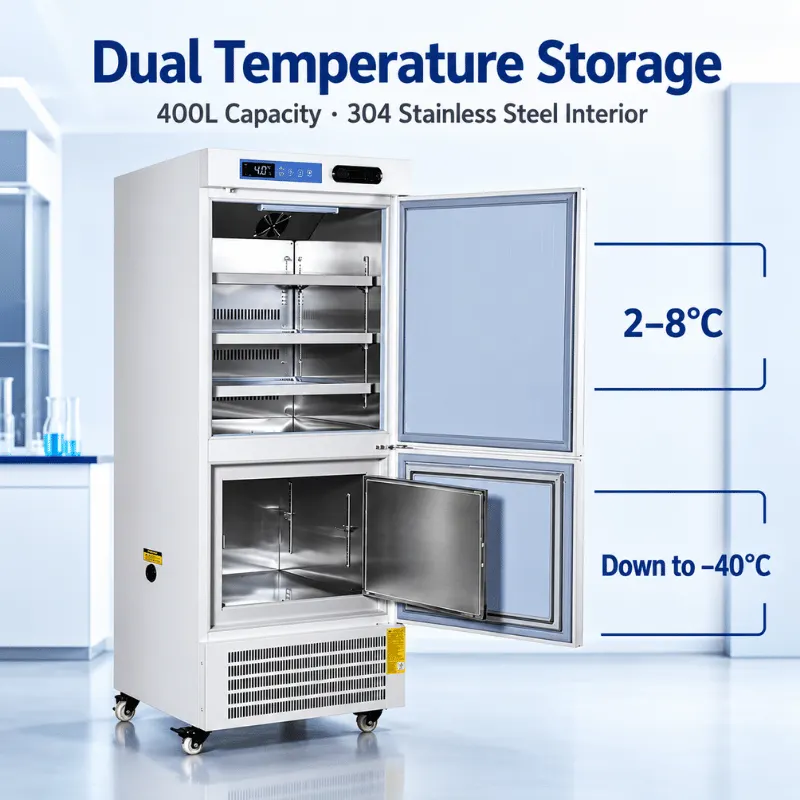

✓ Dual Temperature Storage: Combines a 280L refrigerator at 2 to 8°C with a 120L freezer operating from −10 to −40°C in one unit
✓ Temperature Data Transfer: USB and SD data ports support temperature data transfer for laboratory record keeping and monitoring.
✓ Durable Stainless Steel Interior: 304 stainless steel construction provides a robust interior suitable for routine laboratory storage and cleaning.

$4715

Datasheet

General Specifications
Model : CFR 03 Model	CFR 03
Capacity, Refrigerator / Freezer : 280 L / 120 L Capacity, Refrigerator / Freezer	280 L / 120 L
Internal Temperature, Refrigerator : 2 to 8°C Internal Temperature, Refrigerator	2 to 8°C
Internal Temperature, Freezer : −10 to −40°C Internal Temperature, Freezer	−10 to −40°C
Refrigeration System : Single compressor refrigeration system Refrigeration System	Single compressor refrigeration system
Compressor : HUAYI Compressor	HUAYI
Refrigerant : Fluorine free environmental protection refrigerant Refrigerant	Fluorine free environmental protection refrigerant
Temperature Control : Electronic temperature control Temperature Control	Electronic temperature control
Temperature Display : Data display Temperature Display	Data display
Probe : PTC Probe	PTC
Alarm : Audible and visual alarm Alarm	Audible and visual alarm
Defrost, Refrigerator : Automatic Defrost, Refrigerator	Automatic
Defrost, Freezer : Manual Defrost, Freezer	Manual
Electrical Specifications
Voltage : 220 V / 50 Hz Voltage	220 V / 50 Hz
Input Power : 470 W Input Power	470 W
Power Consumption : 4.9 kWh / 24 h Power Consumption	4.9 kWh / 24 h
Protect Grade : I/B Protect Grade	I/B
Climate Type : N Climate Type	N
Condenser Fans : EBM Condenser Fans	EBM
Temperature Data Port : USB / SD Temperature Data Port	USB / SD
Construction and Storage
Exterior Material : Powder coated steel plate Exterior Material	Powder coated steel plate
Interior Material : Stainless Steel 304 Interior Material	Stainless Steel 304
Foaming Layer Thickness : 120 mm Foaming Layer Thickness	120 mm
Balance Hole : 1, diameter 18 mm Balance Hole	1, diameter 18 mm
Castors : 4 Castors	4
Storage Shelves : 3 stainless steel shelves Storage Shelves	3 stainless steel shelves
Inner Doors : 2 Inner Doors	2
Dimensions and Weight
External Dimensions : 770 × 715 × 1980 mm External Dimensions	770 × 715 × 1980 mm
Internal Dimensions, Refrigerator / Freezer : 660 × 610 × 800 mm / 553 × 524 × 425 mm Internal Dimensions, Refrigerator / Freezer	660 × 610 × 800 mm / 553 × 524 × 425 mm
Package Size : 840 × 790 × 2150 mm Package Size	840 × 790 × 2150 mm
Net Weight : 135 kg Net Weight	135 kg
Gross Weight : 175 kg Gross Weight	175 kg

Thick 120mm Insulation ➤ Thick 120mm Insulation
280L refrigerator compartment with a 2 to 8°C temperature range for refrigerated storage. ➤ 280L refrigerator compartment with a 2 to 8°C temperature range for refrigerated storage.
120L freezer compartment with a −10 to −40°C temperature range for low temperature storage. ➤ 120L freezer compartment with a −10 to −40°C temperature range for low temperature storage.
Single compressor refrigeration system supports both temperature zones in one cabinet. ➤ Single compressor refrigeration system supports both temperature zones in one cabinet.
Automatic defrost function in the refrigerator compartment. ➤ Automatic defrost function in the refrigerator compartment.
Manual defrost function in the freezer compartment. ➤ Manual defrost function in the freezer compartment.
Electronic temperature control supports controlled operation of both compartments. ➤ Electronic temperature control supports controlled operation of both compartments.
Audible and visual alarms help alert users to temperature and system conditions. ➤ Audible and visual alarms help alert users to temperature and system conditions.
USB and SD data ports support temperature data transfer for monitoring and record keeping. ➤ USB and SD data ports support temperature data transfer for monitoring and record keeping.
304 stainless steel interior provides a durable and easy to clean storage surface. ➤ 304 stainless steel interior provides a durable and easy to clean storage surface.
Powder coated steel exterior provides a robust outer cabinet construction. ➤ Powder coated steel exterior provides a robust outer cabinet construction.
120 mm foaming layer provides thermal insulation for the storage compartments. ➤ 120 mm foaming layer provides thermal insulation for the storage compartments.
Three stainless steel shelves provide organized storage space. ➤ Three stainless steel shelves provide organized storage space.
Two inner doors help separate and organize stored materials. ➤ Two inner doors help separate and organize stored materials.
PTC probe supports temperature monitoring inside the unit. ➤ PTC probe supports temperature monitoring inside the unit.
Four castors allow convenient movement of the cabinet. ➤ Four castors allow convenient movement of the cabinet.

Hospitals: Suitable for storing vaccines, medicines, reagents, and temperature sensitive biological materials requiring different refrigerated and frozen conditions Hospitals
Suitable for storing vaccines, medicines, reagents, and temperature sensitive biological materials requiring different refrigerated and frozen conditions
Laboratories: Supports storage of laboratory reagents, samples, test materials, and other temperature sensitive substances Laboratories
Supports storage of laboratory reagents, samples, test materials, and other temperature sensitive substances
Pharmaceutical Facilities: Suitable for pharmaceutical materials that require controlled refrigerated or low temperature storage Pharmaceutical Facilities
Suitable for pharmaceutical materials that require controlled refrigerated or low temperature storage
Research Centers: Supports preservation of biological samples and research materials across different temperature requirements Research Centers
Supports preservation of biological samples and research materials across different temperature requirements
Diagnostic Laboratories: Useful for storing reagents, specimens, and other temperature sensitive materials requiring refrigerated or frozen conditions Diagnostic Laboratories
Useful for storing reagents, specimens, and other temperature sensitive materials requiring refrigerated or frozen conditions
