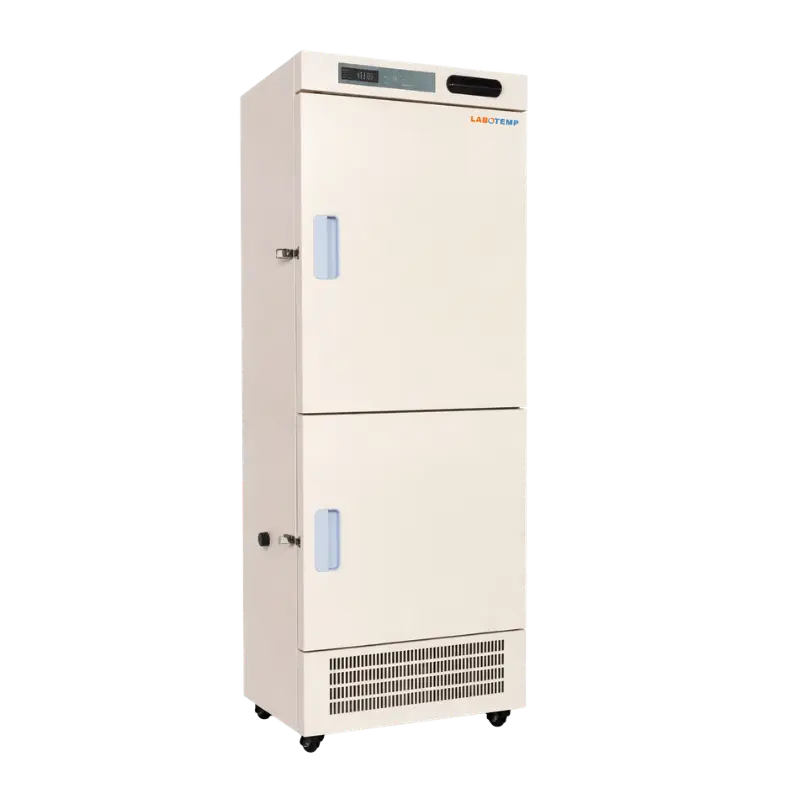

Combined Refrigerator And Freezer CFR-05

Labotemp Combined Refrigerator And Freezer

Combined Refrigerator And Freezer CFR-05

Name: Combined Refrigerator And Freezer CFR-05
Brand: Labotemp
SKU: CFR-05
Price: 3980.00 USD
Availability: InStock
Rating: 4.9 (793 reviews)

Labotemp combined refrigerator freezer CFR -05 is an integrated refrigerator freezer engineered for laboratories, hospitals, blood banks, and research facilities that require dependable dual-temperature storage within a single unit. This model features a 140 liter upper refrigerator compartment adjustable from 2°C to 8°C for vaccines, pharmaceuticals, and reagents, and a 75 liter lower freezer compartment operating from -5°C to -40°C for biological samples and temperature-sensitive materials. The microcomputer temperature controller with digital display allows precise adjustment in 0.1°C increments, ensuring consistent temperature stability for critical storage applications.

Constructed with a 304 stainless steel interior and CFC-free eco-friendly refrigerant, this model uses an imported Secop or Cubigel compressor to deliver efficient cooling with low power consumption of 4.8 kWh per 24 hours. Thick insulation, double-sealed doors, and optimized airflow design help maintain uniform internal conditions. Audible and visual alarms, high and low temperature alerts, sensor failure protection, and safety door lock enhance storage security. Designed for continuous operation, this integrated refrigerator freezer manufacturer offers long-term reliability in regulated laboratory and healthcare environments.

Why Choose Labotemp Combined Refrigerator Freezer CFR -05?
✓ Dedicated Dual Storage: Separate 140L refrigerator and 75L freezer for organized sample management
✓ Precision Monitoring: Digital temperature control with comprehensive alarm system
✓ Compliance & Trust: ISO 13485:2016 certified, CE marked, and aligned with WHO PQS guidelines

$3980

Datasheet User Manual

Model : CFR-05 Model	CFR-05
Type : Vertical Type	Vertical
Capacity (Refrigerator / Freezer) : 140L / 75L Capacity (Refrigerator / Freezer)	140L / 75L
Internal Temperature : 2 ~ 8°C / -5 ~ -40°C (Adjustable) Internal Temperature	2 ~ 8°C / -5 ~ -40°C (Adjustable)
Alarm : Audible and Visual Alarm Alarm	Audible and Visual Alarm
Power Supply : 220V / 50Hz Power Supply	220V / 50Hz
Power : 450 W Power	450 W
Power Consumption : 4.8 kWh / 24h Power Consumption	4.8 kWh / 24h
Protection Class : I Protection Class	I
Climate Class : N Climate Class	N
Refrigerant : CFC-free eco-friendly refrigerant Refrigerant	CFC-free eco-friendly refrigerant
Compressor : Secop or Cubigel Compressor	Secop or Cubigel
Temperature Control : (Kaide) Electronic Temperature Controller Temperature Control	(Kaide) Electronic Temperature Controller
Temperature Display : Digital Display Temperature Display	Digital Display
Probe : PTC Probe	PTC
Condenser Fan : EBM Condenser Fan	EBM
Outer Cabinet : Powder-coated Cold-rolled Steel Plate Outer Cabinet	Powder-coated Cold-rolled Steel Plate
Inner Cabinet : 304 Stainless Steel Inner Cabinet	304 Stainless Steel
Shelves / Inner Door : Upper: 2 Layers Wire Shelves; Lower: 1 Shelf & 1 Inner Door (304 Stainless Steel) Shelves / Inner Door	Upper: 2 Layers Wire Shelves; Lower: 1 Shelf & 1 Inner Door (304 Stainless Steel)
Foam Thickness : 45 mm / 95 mm Foam Thickness	45 mm / 95 mm
Balance Hole : 1 pc (Inner Diameter 18 mm) in Lower Cabinet Balance Hole	1 pc (Inner Diameter 18 mm) in Lower Cabinet
Casters : 4 pcs Casters	4 pcs
Net / Gross Weight : 120 kg / 155 kg Net / Gross Weight	120 kg / 155 kg
External Dimensions (W×D×H) : 620 × 650 × 1680 mm External Dimensions (W×D×H)	620 × 650 × 1680 mm
Internal Dimensions : Upper: 530 × 490 × 540 mm; Lower: 425 × 435 × 409 mm Internal Dimensions	Upper: 530 × 490 × 540 mm; Lower: 425 × 435 × 409 mm
Packing Dimensions : 670 × 720 × 1750 mm Packing Dimensions	670 × 720 × 1750 mm

Audio & Visual Alarm ➤ Audio & Visual Alarm

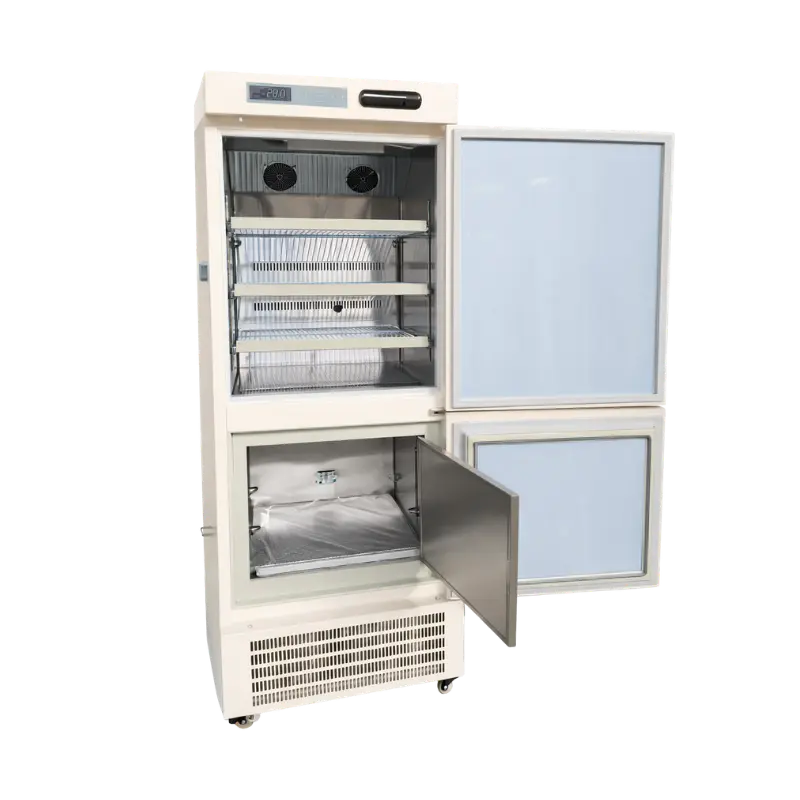

Separate access doors to minimize temperature fluctuation during operation. ➤ Separate access doors to minimize temperature fluctuation during operation.

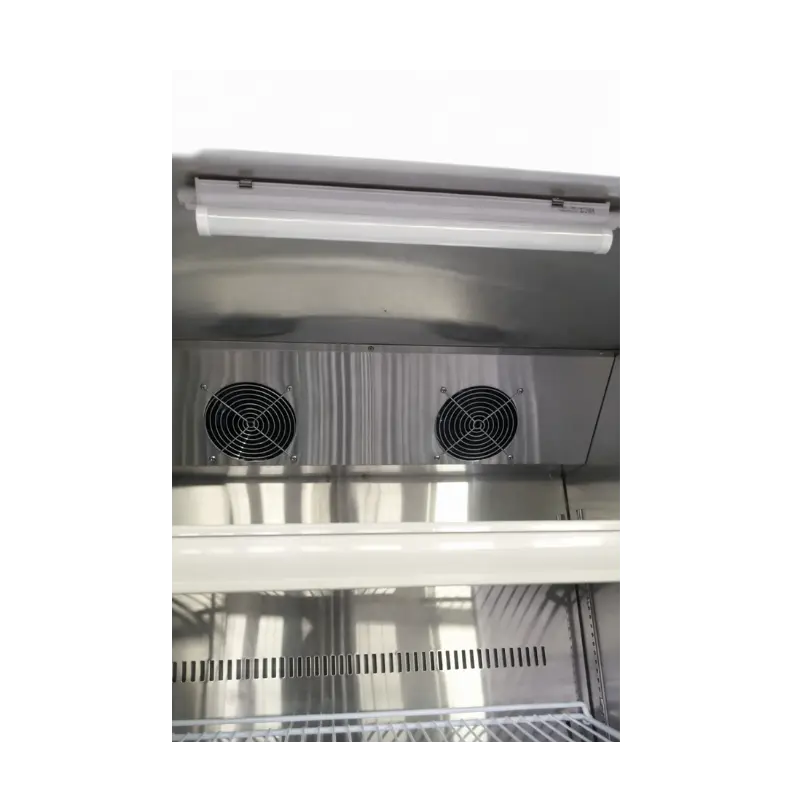

Energy-optimized airflow design for faster temperature recovery. ➤ Energy-optimized airflow design for faster temperature recovery.
Low-noise operation suitable for laboratory and clinical environments. ➤ Low-noise operation suitable for laboratory and clinical environments.
Durable powder-coated exterior resistant to corrosion. ➤ Durable powder-coated exterior resistant to corrosion.
Removable and adjustable storage racks for flexible organization. ➤ Removable and adjustable storage racks for flexible organization.
Heavy-duty castor wheels with locking mechanism for stable positioning. ➤ Heavy-duty castor wheels with locking mechanism for stable positioning.
Interior LED illumination for clear visibility of stored materials. ➤ Interior LED illumination for clear visibility of stored materials.

Combined Refrigerator And Freezer CFR-05 is designed for suitable vaccine and reagent storage, biological sample preservation, clinical laboratory workflows, blood center processing areas, and pharmaceutical research ➤ Combined Refrigerator And Freezer CFR-05 is designed for suitable vaccine and reagent storage, biological sample preservation, clinical laboratory workflows, blood center processing areas, and pharmaceutical research
Ideal for environments needing digital temperature control, alarm protection, and stable 24/7 operation under regulated healthcare and research standards ➤ Ideal for environments needing digital temperature control, alarm protection, and stable 24/7 operation under regulated healthcare and research standards
