Plant Growth Chamber with Humidity PGC-10
Labotemp Plant Growth Chamber
Labotemp Plant Growth Chamber
Labotemp Plant Growth Chamber
Labotemp Plant Growth Chamber
Labotemp Plant Growth Chamber
Labotemp Plant Growth Chamber

Plant Growth Chamber with Humidity PGC-10

Labotemp Plant Growth Chamber with Humidity PGC-10 provides a controlled environment for plant research, seed germination, tissue culture, and other biological cultivation applications requiring regulated temperature, light, and humidity conditions. With a 150 L capacity, 0–65°C temperature range, 40–95% humidity range, and 15,000 lux illumination, the chamber provides controlled environmental conditions for plant growth studies. Its two-side and door lighting configuration supports uniform illumination for cultivation and research applications, making it suitable for use as a seed germination chamber.

This Plant Growth Chamber features ±0.1°C temperature accuracy, ±0.5% temperature fluctuation, and ±3% humidity fluctuation for controlled environmental conditions. The refrigeration system uses R134 refrigerant and includes automatic defrost and compressor delay protection. A built-in intelligent humidification system with an automatic water replenishment tank supports humidity control, while the programmable PID controller provides temperature and humidity management, timing, over-temperature alarm, and data recovery after power failure.

Why Choose Labotemp Plant Growth Chamber with Humidity PGC-10?

✓ Controlled Temperature & Humidity: Provides a 0–65°C temperature range and 40–95% humidity range for controlled plant-growth conditions.
✓ 15,000 Lux Illumination: Two-side and door lighting provides high-intensity illumination for plant cultivation and research.
✓ Programmable Environmental Control: PID-based control supports temperature and humidity management, timing, alarms, and power-failure data recovery.

$4970
Datasheet

Specifications Plant Growth Chamber with Humidity PGC-10

General Specifications

Product Name : Plant Growth Chamber with Humidity

Product Name
Plant Growth Chamber with Humidity

Chamber Type : Plant Growth Chamber with 2-Side + Door Lighting and Humidity

Chamber Type
Plant Growth Chamber with 2-Side + Door Lighting and Humidity

Capacity : 150 L

Capacity
150 L

Interior Dimensions (H × W × D) : 800 × 500 × 380 mm

Interior Dimensions (H × W × D)
800 × 500 × 380 mm

Packing Size : 1690x830x780 mm

Packing Size
1690x830x780 mm

Net Weight : 160Kg

Net Weight
160Kg

Gross Weight : 180Kg

Gross Weight
180Kg

Voltage : 220 V

Voltage
220 V

Power : 1.3 kW

Power
1.3 kW
Temperature Specifications

Temperature Range : 0–65°C

Temperature Range
0–65°C

Temperature Accuracy : ±0.1°C

Temperature Accuracy
±0.1°C

Temperature Fluctuation : ±0.5%

Temperature Fluctuation
±0.5%

Timer : 0–999 min/hour

Timer
0–999 min/hour
Humidity Specifications

Humidity Range : 40–95%

Humidity Range
40–95%

Humidity Fluctuation : ±3%

Humidity Fluctuation
±3%
Lighting Specifications

Lighting Configuration : 2 Sides + Door Lighting

Lighting Configuration
2 Sides + Door Lighting

Illumination : ≥15,000 Lux

Illumination
≥15,000 Lux

Shelf Configuration : 2 Shelves

Shelf Configuration
2 Shelves
Control & Environmental System

Temperature Control : Programmable Intelligent PID Controller

Temperature Control
Programmable Intelligent PID Controller

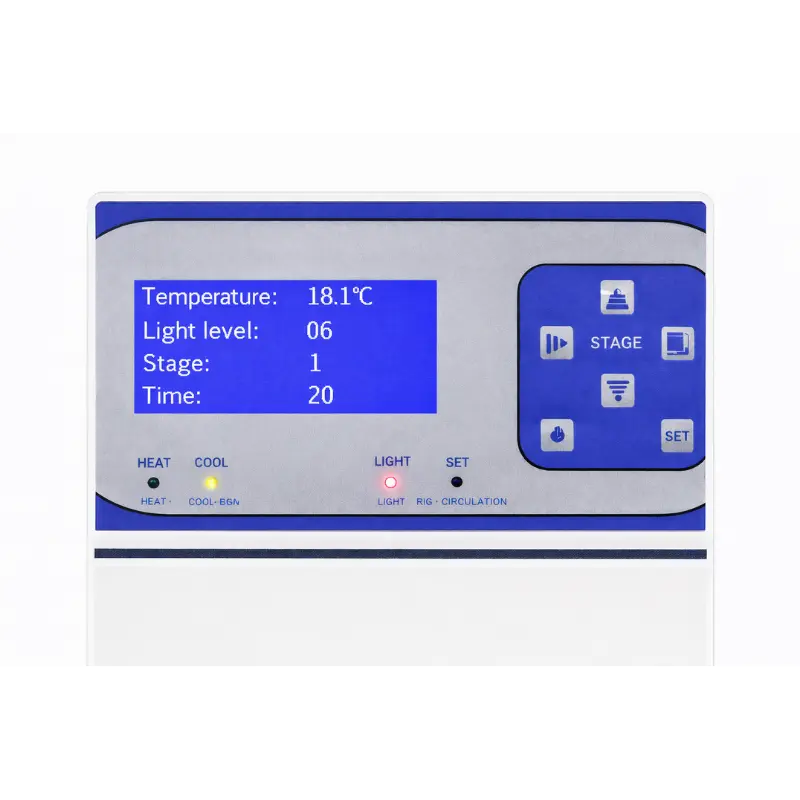

Display : LCD

Display
LCD

Humidification : Built-in Intelligent Humidification System

Humidification
Built-in Intelligent Humidification System

Water Replenishment : Automatic Water Replenishment Tank

Water Replenishment
Automatic Water Replenishment Tank

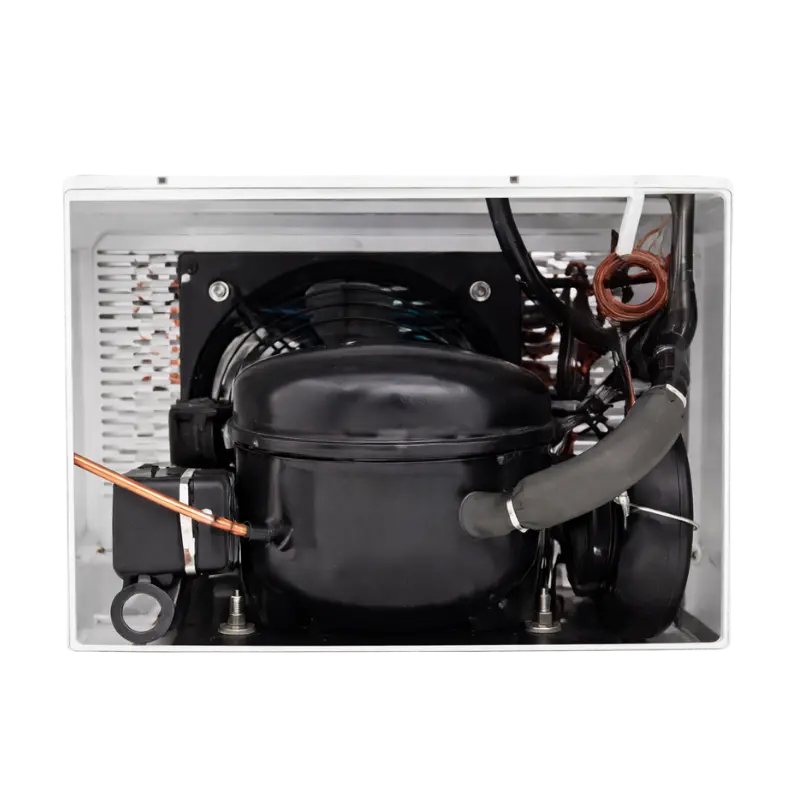

Refrigeration : Fluorine-Free R134 Refrigeration System

Refrigeration
Fluorine-Free R134 Refrigeration System

Defrosting : Automatic Defrost

Defrosting
Automatic Defrost

Compressor Protection : Delay Protection

Compressor Protection
Delay Protection

Over-Temperature Protection : Over-Temperature Alarm

Over-Temperature Protection
Over-Temperature Alarm

Power Failure Function : Data Recovery After Power Failure

Power Failure Function
Data Recovery After Power Failure

Computer Interface : RS485

Computer Interface
RS485
Construction

Chamber Material : SUS 304 Mirror Stainless Steel

Chamber Material
SUS 304 Mirror Stainless Steel

Shelf Arrangement : Adjustable Shelf Spacing and Number of Shelves

Shelf Arrangement
Adjustable Shelf Spacing and Number of Shelves

Door : Tempered Glass Door

Door
Tempered Glass Door

Door Seal : Silicone Sealing Ring

Door Seal
Silicone Sealing Ring

Internal Construction : Insulating Glass

Internal Construction
Insulating Glass

Features Plant Growth Chamber with Humidity PGC-10

  • 2-side and door lighting ➤ 2-side and door lighting
  • 150 L chamber capacity supports controlled plant cultivation and research workflows. ➤ 150 L chamber capacity supports controlled plant cultivation and research workflows.
  • 0–65°C temperature range provides controlled thermal conditions for plant growth studies. ➤ 0–65°C temperature range provides controlled thermal conditions for plant growth studies.
  • 40–95% humidity range supports cultivation requiring controlled moisture conditions. ➤ 40–95% humidity range supports cultivation requiring controlled moisture conditions.
  • Dual-Side and Door LED Lighting provides integrated illumination to improve light distribution throughout the cultivation chamber. ➤ Dual-Side and Door LED Lighting provides integrated illumination to improve light distribution throughout the cultivation chamber.
  • Adjustable Light Intensity allows illumination to be adjusted through current-level control when configured with the applicable controller. ➤ Adjustable Light Intensity allows illumination to be adjusted through current-level control when configured with the applicable controller.
  • 15,000 lux illumination supports controlled light conditions for plant cultivation. ➤ 15,000 lux illumination supports controlled light conditions for plant cultivation.
  • ±0.1°C temperature accuracy supports precise temperature control. ➤ ±0.1°C temperature accuracy supports precise temperature control.
  • ±0.5°C temperature fluctuation helps maintain stable chamber conditions. ➤ ±0.5°C temperature fluctuation helps maintain stable chamber conditions.
  • ±3% humidity fluctuation supports stable humidity conditions during cultivation. ➤ ±3% humidity fluctuation supports stable humidity conditions during cultivation.
  • Programmable intelligent PID controller provides temperature and humidity control. ➤ Programmable intelligent PID controller provides temperature and humidity control.
  • LCD display provides convenient monitoring and control of chamber conditions. ➤ LCD display provides convenient monitoring and control of chamber conditions.
  • Built-in intelligent humidification system supports controlled humidity operation. ➤ Built-in intelligent humidification system supports controlled humidity operation.
  • Automatic water replenishment tank simplifies humidification management. ➤ Automatic water replenishment tank simplifies humidification management.
  • Fluorine-free R134 refrigeration system provides controlled cooling. ➤ Fluorine-free R134 refrigeration system provides controlled cooling.
  • Automatic defrosting supports continuous chamber operation. ➤ Automatic defrosting supports continuous chamber operation.
  • Compressor delay protection helps protect the refrigeration system during operation. ➤ Compressor delay protection helps protect the refrigeration system during operation.
  • Adjustable shelf spacing allows the internal arrangement to be adapted to different cultivation requirements. ➤ Adjustable shelf spacing allows the internal arrangement to be adapted to different cultivation requirements.
  • Mirror stainless-steel chamber construction provides a durable internal surface. ➤ Mirror stainless-steel chamber construction provides a durable internal surface.
  • Tempered glass door provides visibility of the chamber interior. ➤ Tempered glass door provides visibility of the chamber interior.
  • Silicone sealing ring supports effective door sealing. ➤ Silicone sealing ring supports effective door sealing.
  • Timing function supports programmed operating periods. ➤ Timing function supports programmed operating periods.
  • Over-temperature alarm provides an alert when temperature exceeds the controlled limit. ➤ Over-temperature alarm provides an alert when temperature exceeds the controlled limit.
  • Power-failure data recovery helps retain operating settings after power interruption. ➤ Power-failure data recovery helps retain operating settings after power interruption.

Applications Plant Growth Chamber with Humidity PGC-10

  • Plant Research: Suitable for controlled environmental studies involving plant growth and development Plant Research
    Suitable for controlled environmental studies involving plant growth and development
  • Seed Germination: Provides controlled temperature, humidity, and light conditions for seed germination studies Seed Germination
    Provides controlled temperature, humidity, and light conditions for seed germination studies
  • Tissue Culture: Supports controlled environmental conditions required for tissue culture applications Tissue Culture
    Supports controlled environmental conditions required for tissue culture applications
  • Commercial Horticulture: Suitable for controlled cultivation and horticultural research Commercial Horticulture
    Suitable for controlled cultivation and horticultural research
  • Plant-Based Pharmaceutical Research: Supports plant cultivation and research related to plant-derived pharmaceutical materials Plant-Based Pharmaceutical Research
    Supports plant cultivation and research related to plant-derived pharmaceutical materials
  • Biopharmaceutical Research: Suitable for controlled plant and biological cultivation workflows in biopharmaceutical research Biopharmaceutical Research
    Suitable for controlled plant and biological cultivation workflows in biopharmaceutical research
  • Algal Reproduction: Provides controlled environmental conditions for algal cultivation and reproduction Algal Reproduction
    Provides controlled environmental conditions for algal cultivation and reproduction
  • Small Insect & Drosophila Cultivation: Suitable for controlled cultivation of small insects and Drosophila Small Insect & Drosophila Cultivation
    Suitable for controlled cultivation of small insects and Drosophila

Optional Accessories

  • Gas interface ➤ Gas interface
  • USB port data recorder ➤ USB port data recorder
  • Portable printer ➤ Portable printer
  • Touch screen controller ➤ Touch screen controller
  • Programmable software ➤ Programmable software
  • Wireless mobile phone short message alarm system ➤ Wireless mobile phone short message alarm system
  • CO₂ concentration controller ➤ CO₂ concentration controller
  • Laminate light shelf ➤ Laminate light shelf
  • Lamps with different spectra ➤ Lamps with different spectra
