Refrigerated Floor Standing Centrifuge- Low Speed LRC-106

A4 preview · Your PDF uses these same pages.

Refrigerated Floor Standing Centrifuge- Low Speed LRC-106
Get to know

Why choose
Refrigerated Floor Standing Centrifuge- Low Speed LRC-106?

  1. 1
    Smooth Operation
  2. 2
    Low-speed refrigerated centrifugation up to 7000 rpm
  3. 3
    High capacity with swing bucket and angle rotor configurations
LRC-106

Refrigerated Floor Standing Centrifuge

Refrigerated Floor Standing Centrifuge- Low Speed LRC-106
Refrigerated Floor Standing Centrifuge- Low Speed LRC-106
Overview

Product
Description

Product overview

Refrigerated Floor Standing Centrifuge- Low Speed LRC-106

Labotemp Floor standing refrigerated centrifuge LRC-106 is designed for laboratories requiring reliable low-speed centrifugation with controlled cooling for biological samples. This refrigerated centrifuge machine operates up to 7000 rpm with a maximum RCF of 8897 × g, making it suitable for plasma separation, serum preparation, and routine sample processing in hospitals, diagnostic laboratories, blood banks, and biotechnology facilities. The refrigeration system maintains a stable -20°C to 40°C temperature range with ±1°C accuracy, helping protect temperature-sensitive samples during centrifugation.

Designed for continuous use, this blood centrifuge features a microprocessor control system with touch LCD display for precise monitoring of speed, RCF, and timer settings. Up to 30 programmable operation profiles allow laboratories to repeat commonly used protocols with consistent results. Low noise operation (≤58 dB) improves the working environment, while caster wheels allow easy mobility within laboratory spaces. Built with durable laboratory-grade construction, the LRC-06 provides dependable performance for routine clinical and research centrifugation tasks.

Why Choose Labotemp Floor standing refrigerated centrifuge LRC-106

✓ Flexible Processing Capacity: Supports both swing bucket and fixed-angle rotor configurations
✓ Stable Temperature Control: Maintains controlled cooling for sensitive biological samples
✓ Trusted Centrifuge Manufacturer: Labotemp designs centrifuges focused on durability and consistent laboratory performance

Technical data · LRC-106

Complete Specifications

Refrigerated Floor Standing Centrifuge- Low Speed LRC-106
No.SpecificationValue
1Maximum Capacity4 × 1000 ml (Swing Bucket), 4 × 500 ml (Angle Rotor)
2Maximum Speed7000 rpm
3Maximum RCF8897 × g
4Temperature Range-20°C to +40°C
5Temperature Accuracy±1°C
6Power SupplyAC 220V, 50 Hz, 16 A
7Power Consumption1500 W
8Control SystemMicroprocessor control

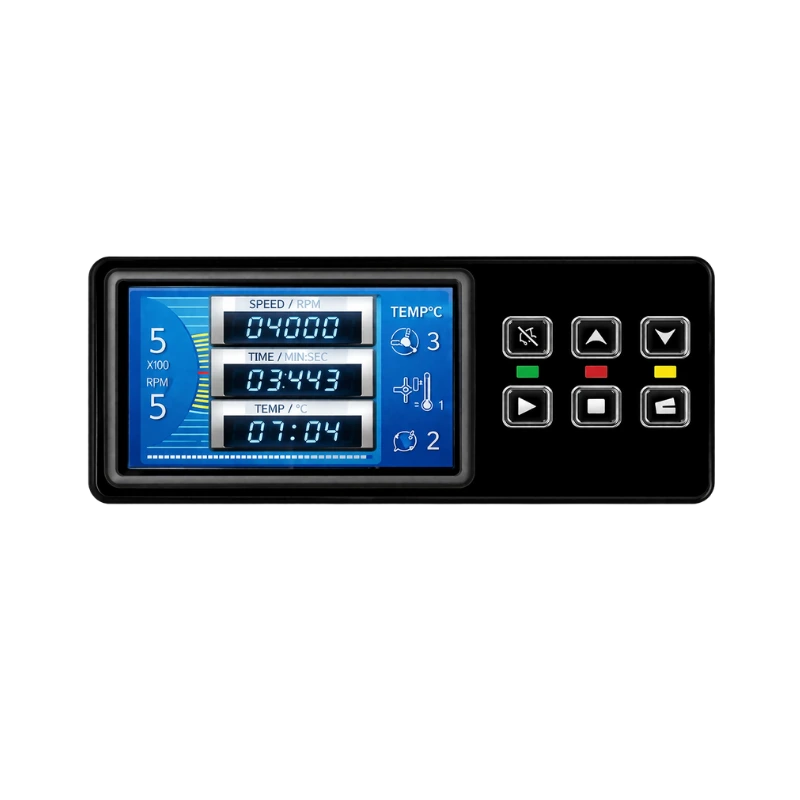

9DisplayTouch LCD screen
10Timer Range1 – 99 min 59 sec
11Acceleration / Deceleration1 – 10 levels
12Speed Accuracy±20 r/min
13Daily Program Storage30 programs
14Motor TypeAC frequency conversion motor, direct drive
15Noise Level≤58 dB(A)
16Dimensions (L×W×H)690 × 590 × 835 mm
17Net Weight (without rotor)190 kg
18Gross Weight 260kg
19Package Size920x780x1090mm
What's included

Features

  1. 1
    Smooth Operation
  2. 2
    Low-speed refrigerated centrifugation up to 7000 rpm
  3. 3
    High capacity with swing bucket and angle rotor configurations
  4. 4
    Temperature control from -20°C to +40°C
  5. 5
    Microprocessor-controlled system for precise operation
  6. 6
    Touch LCD display with real-time monitoring
  7. 7
    RTC (Real-Time Control) function for process tracking
  8. 8
    AC frequency conversion motor with low noise performance
  9. 9
    PID temperature control with ±1°C accuracy
  10. 10
    Dual-loop heating and cooling system
  11. 11
    CFC-free refrigeration with pre-cooling feature
  12. 12
    30 programmable memory settings with recall function
  13. 13
    Adjustable acceleration and deceleration (1–10 levels)
  14. 14
    Smooth rotor locking system for easy handling
  15. 15
    Stainless steel chamber with durable construction
  16. 16
    Wind shield design for stable sample processing
  17. 17
    Caster wheels for easy mobility
  18. 18
    Advanced safety system: overspeed protection, imbalance detection, lid lock, self-diagnostics
Where it's used

Applications

  • Blood component separation and processing in hospitals, blood banks, and transfusion centers with high tube capacity
  • Clinical diagnostics requiring controlled low-speed centrifugation with temperature stability
  • Pharmaceutical and biotech labs handling sensitive biological samples under regulated conditions
  • Routine sample preparation in research and academic laboratories
  • Industrial and food testing labs requiring reliable, large-volume refrigerated separation
Refrigerated Floor Standing Centrifuge- Low Speed LRC-106

LET'S EQUIP
YOUR LABORATORY

View product online

+1 581 465 8405

www.labotemp.com · info@labotemp.com

144 E, Midwest Avenue, Casper WY 82601, USA

More about this product

Optional Modules

No.Rotor / AdapterMax CapacityMax SpeedMax RCFTube Type
1Angle Rotor with Adapters4 × 500 ml; Adapter: 4 × 100 ml / 4 × 3×50 ml / 4 × 8×15/10 ml7000 r/min8897 × gPP / PC Tubes
2Angle Rotor with Adapters16 × 50 ml; Adapter: 16 × 15 ml / 16 × 10 ml / 16 × 3×1.5 ml7000 r/min7121 × gPP / PC Tubes
3Angle Rotor32 × 15 ml7000 r/min7300 × gPP / PC Tubes
4Swing Bucket with Adapters4 × 1000 ml; Adapter: 4 × 26×5/2 ml / 4 × 13×15/10 ml / 4 × 5×50 ml / 4 × 3×100 ml4000 r/min3578 × gPP / PC Tubes
5Microplate Rotor with Adapter4 × 2 × 96 well; Adapter: 4 × 32 × 1.5 ml4200 r/min2859 × gPP / PC Tubes
