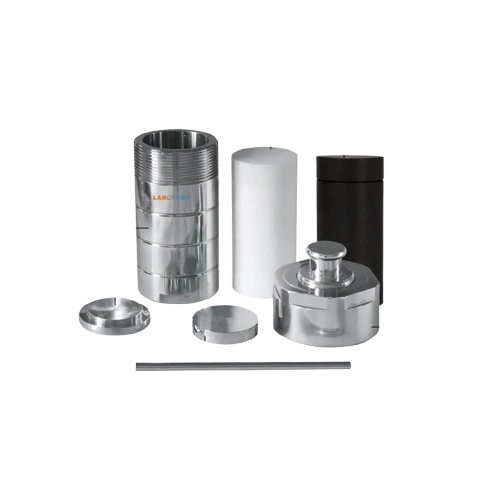

Labotemp Hydrothermal Reactor Autoclave HRA-07 is a 500 mL, PTFE-lined hydrothermal reactor engineered for reliable hydrothermal synthesis, pressure digestion and catalytic reactions. Its thick-walled 316 stainless-steel kettle and secure gasketed lid resist strong acids and alkalis while preventing sample contamination. Rated for 200 °C operating (250 °C max) and 3.0 MPa, the HRA-07 accelerates fast, nondestructive dissolution of insoluble or volatile samples—ideal for trace-element analysis, materials research and high-purity workflows. Easy to operate and maintain, this teflon lined autoclave supports reproducible results across demanding lab tasks.
Designed for petrochemical, biomedical, geological, environmental and food labs, the HRA-07 handles heavy metals, pesticide residues, rare earths and complex organics with low contamination risk and reduced analysis time. Its robust construction, user-friendly maintenance and reliable temperature/pressure control make it a practical choice for routine sample pretreatment and hydrothermal synthesis projects. This hydrothermal autoclave reactor is engineered and designed by Labotemp, a specialized autoclave manufacturer for research laboratories.
Why Choose Labotemp Hydrothermal Reactor HRA-07?
✓ Certified safety: Complies with ISO 13485 and CE standards.
✓ Durable build: 316 stainless steel body with PTFE lining for long-term use.
✓ Reliable results: Fast, low-contamination digestion for consistent analysis.
| No. | Specification | Value |
|---|---|---|
| General Specifications | ||
| 1 | Capacity | 500 ml |
| 2 | Kettle Body Material | 316 Stainless Steel |
| Sterilization Parameters | ||
| 3 | Maximum Temperature | 250°C |
| 4 | Maximum Pressure | 3.0 MPa |
| Chamber Dimensions | ||
| 5 | Kettle Lid Height | 50 mm |
| 6 | Kettle Body Height | 161 mm |
| 7 | Kettle Body Diameter | 118 mm |
| 8 | Kettle Body Inner Diameter | 91 mm |
| 9 | Kettle Body Wall Thickness | 13.5 mm |
| 10 | Inner Diameter | 91 mm |
| Physical Dimensions | ||
| 11 | Overall Height | 220 mm |
| 12 | Length of Grip Bar | 8 × 120 mm |
| 13 | Lined With High | 136 mm |
| 14 | Lining Height / Thickness | 8 mm |
| 15 | Thickness of Lower Gasket | 10 mm |
| 16 | Thickness of Upper Gasket | 10 mm |
| Packaging Information | ||
| 17 | Product Weight | 7.45 kg |
| 18 | Packing Dimension | 24.2 × 24.2 × 35.2 cm |
| 19 | Gross Weight | 13 kg |
Hydrothermal Synthesis: Suitable for hydrothermal and solvothermal synthesis, crystal growth, nanomaterial preparation, and advanced material development requiring elevated temperature and pressure.
High-Pressure Sample Digestion: Designed for digestion and dissolution of trace elements, heavy metals, geological samples, and other difficult-to-dissolve materials.
Petrochemical Research: Supports high-temperature and high-pressure reactions, sample preparation, and material evaluation in petrochemical laboratories.
Materials Science: Suitable for synthesis and processing of catalysts, ceramics, inorganic compounds, nanomaterials, and other advanced materials.
Geological & Environmental Laboratories: Supports preparation and digestion of mineral, soil, sediment, and environmental samples for subsequent laboratory analysis.
Chemical Research: Suitable for controlled high-pressure chemical reactions, dissolution studies, reaction screening, and laboratory-scale synthesis.
Food & Agricultural Research: Useful for high-pressure sample digestion and preparation of compatible food, agricultural, and environmental samples.
Academic & Research Laboratories: The 500 mL capacity provides practical higher-volume processing for university, research, and industrial laboratory experiments.
