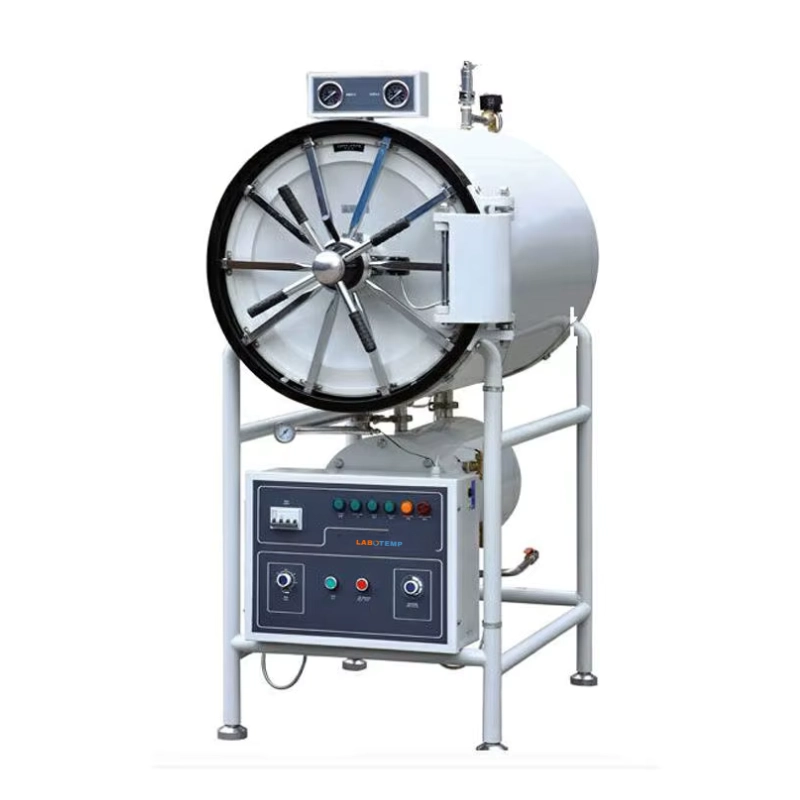

Labotemp Horizontal Autoclave HZA-01 is a high-performance horizontal steam sterilizer designed for safe and efficient sterilization of laboratory instruments, culture media, dressing materials, glassware, and industrial components. This horizontal cylindrical pressure steam sterilizer uses saturated steam at controlled temperature and pressure to eliminate bacteria, viruses, and spores, ensuring complete contamination control. The autoclave machine horizontal design allows easy loading of bulk materials, making it ideal for high-volume sterilization applications requiring reliability and consistency.
This horizontal cylindrical autoclave features a 150L stainless steel chamber, operating at a working pressure of 0.22 MPa and a maximum temperature of 134°C for effective sterilization cycles. With adjustable temperature range from 40°C to 134°C and sterilization and drying time from 0–60 minutes, it ensures flexibility for different laboratory processes. Compliant with ISO & CE standards, Labotemp is a trusted horizontal autoclave manufacturer providing reliable and durable sterilization solutions.
Why Choose Labotemp Horizontal Autoclave HZA-01?
✓ Efficient Sterilization: Operates up to 134°C for reliable sterilization of laboratory and medical materials.
✓ Safety Protection: Includes over-pressure safety valve and low-water cut-off for safe operation.
✓ Durable Construction: Stainless steel chamber with automatic control ensures long service life.
| No. | Specification | Value |
|---|---|---|
| General Specifications | ||
| 1 | Working Temperature | 134°C |
| 2 | Volume | 150 L |
| 3 | Sterilizing Chamber | 440 × 1000 mm |
| 4 | Time of Sterilization | 0–60 min |
| 5 | Working Pressure | 0.22 MPa |
| 6 | Time of Drying | 0–60 min |
| 7 | Heat Average | ≤ ±2°C |
| 8 | Adjustment of Temperature | 40°C–134°C |
| Electrical & Construction | ||
| 9 | Power | 9 kW |
| 10 | Voltage | 380 V, 50 Hz |
| Packaging Information | ||
| 11 | Dimension (L × W × H) | 1400 × 600 × 1300 mm |
| 12 | Transport Dimension | 1550 × 750 × 1850 mm |
| 13 | Gross Weight | 320 kg |
| 14 | Net Weight | 240 kg |
Research & Microbiology Laboratories: Suitable for sterilizing laboratory glassware, instruments, culture media, solutions, and biological waste.
Healthcare & Medical Facilities: Supports sterilization of compatible dressing materials, instruments, and reusable laboratory equipment.
Laboratory Glassware Sterilization: Ideal for high-volume processing of laboratory bottles, containers, glassware, and other heat- and moisture-compatible items.
Culture Media & Solutions: Suitable for steam sterilization of prepared culture media and compatible laboratory solutions.
Industrial Applications: Designed for sterilization of larger quantities of compatible components and materials where high-capacity steam processing is required.
