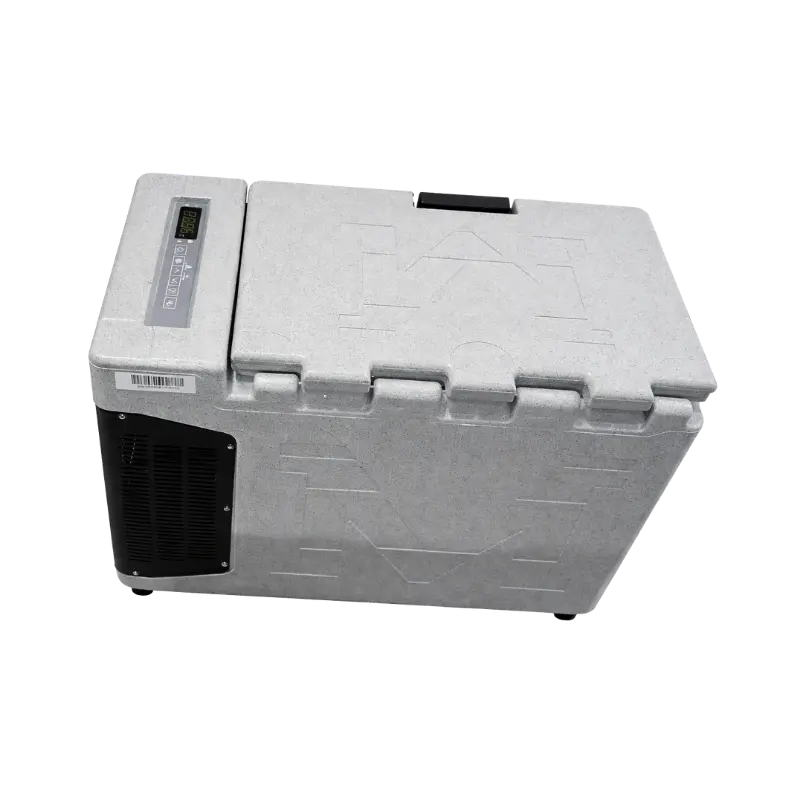

Labotemp Portable Biomedical Freezer BPF-01B provides reliable temperature-controlled storage and transportation of blood, plasma, serum, vaccines, pharmaceuticals, reagents, and other temperature-sensitive medical products. Designed as a compact Medical Freezer for laboratory, healthcare, and field applications, it offers a 30 L storage capacity with an adjustable temperature range from -25°C to +30°C and 0.1°C temperature resolution for accurate temperature management. The microprocessor controller, NTC temperature sensor, and forced-air cooling system maintain uniform chamber conditions, while the integrated cooling and heating functions automatically adapt to changing ambient temperatures. Compatible with both AC 220 V and 12 V DC power supplies, the freezer supports reliable operation in hospitals, blood banks, vaccination centers, mobile clinics, research laboratories, and cold-chain transportation.
Built for dependable long-term performance, the BPF-01B features a durable PE cabinet with 55 mm polyurethane foam insulation for improved thermal efficiency and temperature stability. The system includes audible and visual alarms for high/low temperature, power failure, sensor error, and controller faults to help protect valuable medical materials. A built-in backup battery powers the controller during power interruptions, allowing temperature data to be retained and supporting the power failure alarm for up to 8 hours. Automatic restart delay protection helps safeguard the cooling system following power restoration.
Why Choose Labotemp Portable Biomedical Freezer BPF-01B?
✓ Wide Temperature Range: Adjustable -25°C to +30°C storage for diverse biomedical applications.
✓ Reliable Temperature Control: Microprocessor controller with 0.1°C resolution and forced-air cooling for uniform performance.
✓ Comprehensive Safety Features: Audible and visual alarms, 8-hour power failure backup, and automatic restart protection.
✓ Portable & Energy Efficient: 30 L capacity, AC/DC power compatibility, and insulated cabinet with low daily energy consumption.
| Temperature Range | -25°C to +30°C |
|---|---|
| Capacity | 30 L |
| Ambient Temperature | 10°C to 32°C |
| Voltage & Frequency | AC 220V±10%, 50/60Hz; DC 12V |
| Internal Dimensions (W×D×H) | 364×253×353 mm |
| External Dimensions (W×D×H) | 615×370×472 mm |
| Noise Level | 45 dB |
| Controller | Microprocessor |
| Display | Digital |
| Power | 80 W |
| Electric Current | DC 6.5 A |
| Power Consumption | 1.2 kWh/24h |
| Refrigeration Type | Forced-air cooling |
| Defrost | Manual |
| Refrigerant | R134a |
| Door Type | PE Foamed Solid Door (1) |
| Inner Cabinet Material | PE |
| Outer Cabinet Material | PE |
| Insulation Material | PURF (55 mm) |
| Alarms | High/Low Temp, Power Failure (8h), Sensor & Controller Error |
| Packing Size (W×D×H) | 670×440×540 mm |
| Net Weight | 22 kg |
| Gross Weight | 26 kg |
Combined Refrigerator and Freezer BPF-01B is suitable for cold chain transport and storage of vaccines, blood products, reagents, and biological samples requiring controlled temperatures from -25°C to +30°C. Ideal for hospitals, diagnostic labs, research facilities, field sampling, and pharmaceutical distribution where AC/DC operation, portability, and alarm-monitored conditions ensure sample integrity and compliance.
