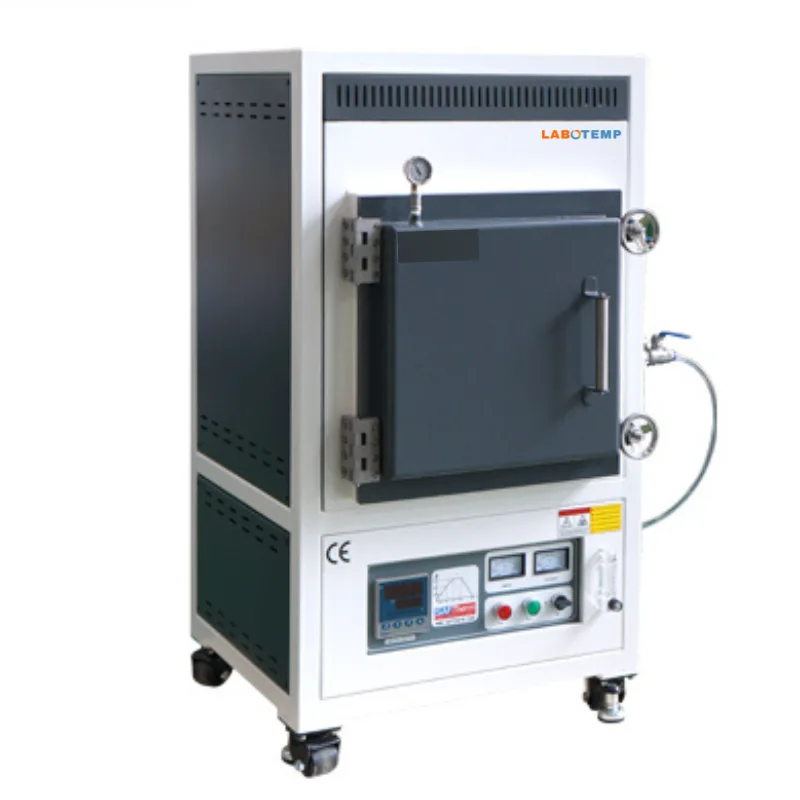

Labotemp Vacuum Furnace FVA-15 delivers high temperature thermal processing up to 1600°C continuous operation for material synthesis, heat treatment, sintering, annealing, and research requiring controlled vacuum or inert gas atmospheres. Featuring a 36 L chamber with 300 × 400 × 300 mm internal dimensions, the furnace combines high quality MoSi₂ heating elements, high temperature alumina ceramic fiber insulation, and a B type thermocouple to provide stable and uniform heating with ±1°C temperature precision. Its 13 kW heating system and 380 V three phase power supply make it suitable for demanding laboratory and industrial material processing applications.

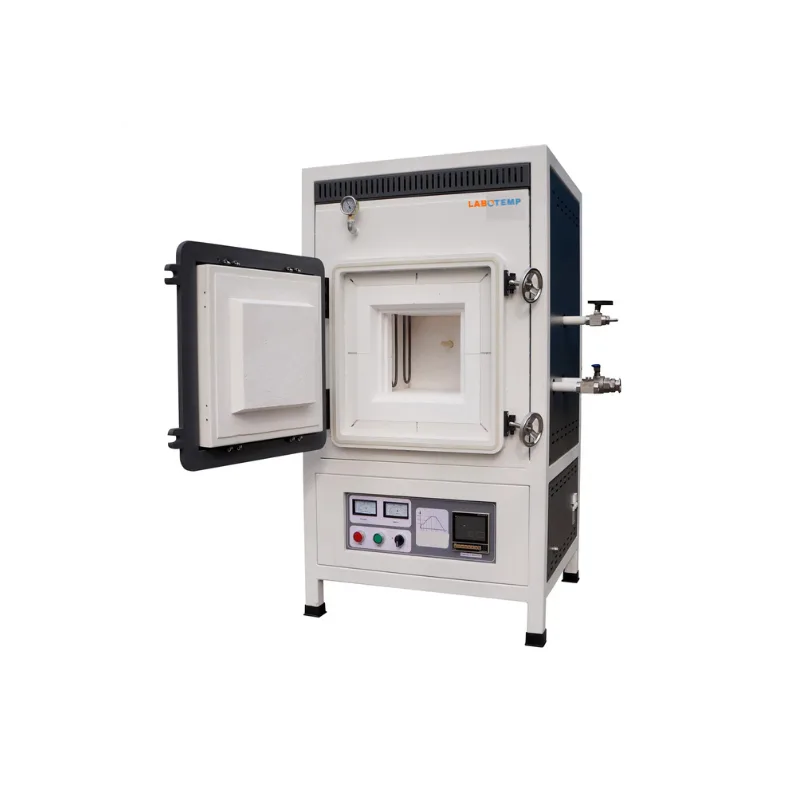

The FVA-15 features a double shell structure with cooling fan, reliable sealing, gas inlet and outlet ports, and water inlet and outlet connections for compatible cooling systems. An LCD touch screen temperature controller supports programmable heating profiles, while the vacuum chamber can operate with a vacuum level of up to 20,000 Pa as specified. The side opening furnace door, stainless steel sealing components, mechanical vacuum gauge, air outlet, and float flow meter provide practical control during operation. Optional vacuum systems, water chiller, gas supply system, digital vacuum gauge, and paperless recorder allow the furnace to be configured for specific processing requirements.
Why Choose Labotemp Vacuum Furnace FVA-15?
✓ 1600°C Continuous Operation: Supports demanding high temperature material processing and research.
✓ Precise Programmable Control: LCD touch screen controller with B type thermocouple enables accurate temperature management.
✓ Vacuum & Gas Atmosphere Capability: Supports controlled processing with vacuum and inert gas environments.
| No. | Specification | Value |
|---|---|---|
| Furnace & Operating Performance | ||
| 1 | Furnace Type | Vacuum Atmosphere Furnace |
| 2 | Chamber Type | Box Chamber, Side Door Opening |
| 3 | Chamber Volume | 36 L |
| 4 | Inner Chamber Dimensions (W × D × H) | 300 × 400 × 300 mm |
| 5 | Maximum Temperature | 1700 °C |
| 6 | Continuous Operating Temperature | 1600 °C |
| 7 | Temperature Precision | ±1 °C |
| 8 | Heating Rate | ≤15 °C/min |
| 9 | Recommended Heating Rate | 6 to 8 °C/min |
| Heating & Chamber Construction | ||
| 10 | Heating Element | High Quality Molybdenum Disilicide (MoSi₂) |
| 11 | Heating Element Arrangement | 8 MoSi₂ Rod Heaters |
| 12 | Chamber Material | High Temperature Polycrystalline Alumina Ceramic Fiber Plate |
| 13 | Insulation Material | High Quality Thermal Insulation Material |
| 14 | Furnace Shell | Cold Rolled Round Steel Sheet |
| 15 | Furnace Structure | Double Shell Structure with Cooling System |
| 16 | Door Type | Side Opening |
| 17 | Sealing System | High Temperature Sealing System |
| 18 | Inner Insulation Door | Yes |
| Temperature Control | ||
| 19 | Temperature Controller | LCD Touch Screen Controller |
| 20 | Programmable Curves | 15 Program Curves |
| 21 | Segments per Program | 30 |
| 22 | Total Programmable Segments | 450 |
| 23 | Thermocouple | B Type |
| 24 | Temperature Protection | Overheat Protection |
| 25 | Thermocouple Protection | Thermocouple Break Alarm |
| 26 | Electronic Components | High Quality DELIXI Electrical Parts |
| Vacuum & Gas System | ||
| 27 | Vacuum Level | ≤ 20,000 Pa |
| 28 | Vacuum Port | Yes |
| 29 | Gas Inlet | Yes |
| 30 | Gas Outlet | Yes |
| 31 | Gas Compatibility | Argon, Nitrogen and Other Gases |
| 32 | Vacuum Gauge | Mechanical Vacuum Gauge |
| Cooling & Utilities | ||
| 33 | Cooling Water Inlet | Yes |
| 34 | Cooling Water Outlet | Yes |
| 35 | Cooling Fan | Built In |
| 36 | Power Supply | 380 V, Three Phase, 50/60 Hz |
| 37 | Rated Power | 13 kW |
| 38 | Net Weight | 900Kg |
| 39 | Gross Weight | 1000Kg |
Material Synthesis: Suitable for high temperature synthesis and processing of advanced materials under controlled thermal conditions.
Sintering & Annealing: Used for thermal treatment, sintering, and annealing processes requiring temperatures up to 1600°C.
Ceramic Research: Suitable for processing ceramic materials and other high temperature refractory materials.
Powder Metallurgy: Supports high temperature treatment and sintering of metal powders and related materials.
Heat Treatment: Used for controlled heating processes where precise and repeatable temperature profiles are required.
Vacuum Processing: Suitable for material processing under controlled vacuum conditions to support atmosphere sensitive applications.
Inert Gas Processing: Supports heat treatment and material synthesis under argon, nitrogen, and other suitable controlled gas atmospheres.
Materials Science Research: Suitable for laboratory research involving thermal processing, material development, and high temperature characterization.
Research & Development: Useful for universities, research institutes, and industrial laboratories developing and testing materials requiring high temperature processing.
Laboratory Thermal Processing: Supports programmable multi stage heating cycles for research and production related thermal treatment workflows.
