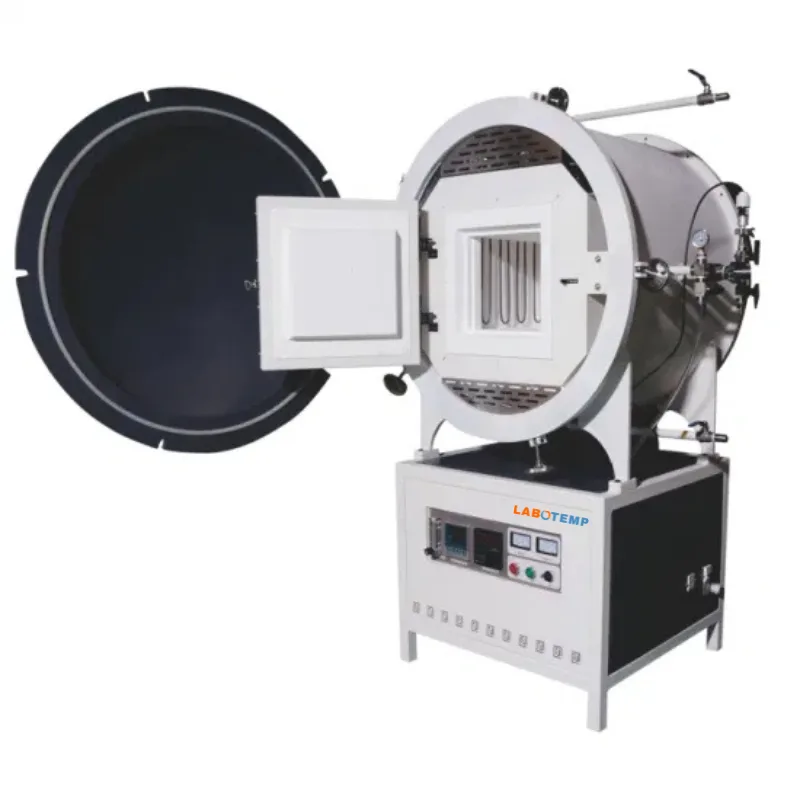

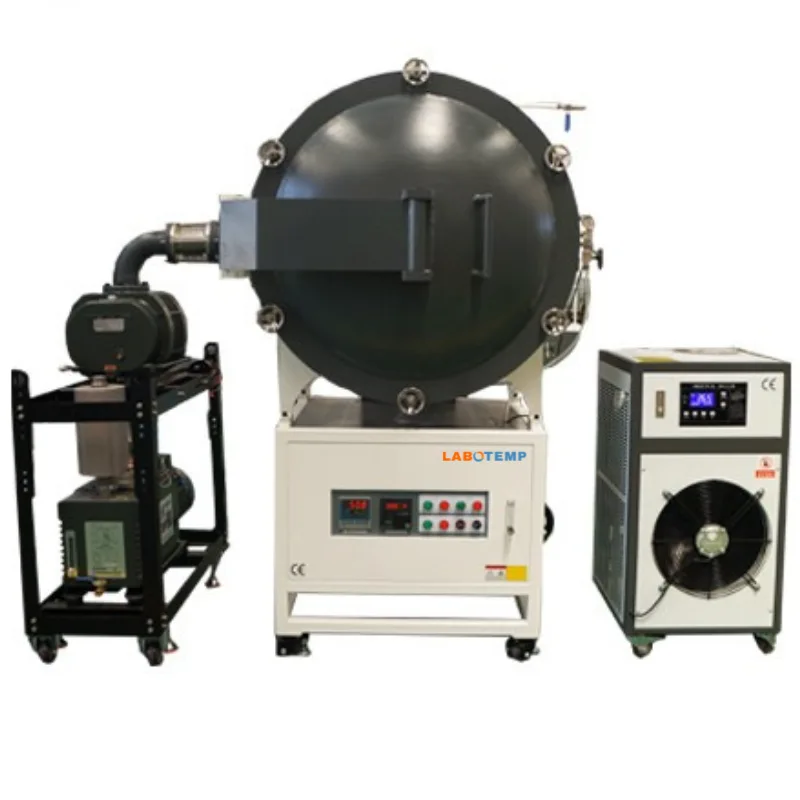

Labotemp Vacuum Furnace FVA-13 is an ultra-high-temperature laboratory vacuum furnace for precision heat treatment and materials research. It has a 12 L chamber (200×300×200 mm), a 1700°C max and 1600°C working range. Supports vacuum heat treatment, vacuum annealing, high-temperature sintering and controlled-atmosphere processing for ceramics, metal alloys, composites and powder metallurgy.
MoSi₂ rod heating elements deliver rapid response, energy efficiency, uniform distribution and long life. B-type platinum-rhodium thermocouple with Yudian or Shimaden controllers ensures precise, repeatable temperature control. Integrated data logging enables process monitoring and documentation. Developed by experienced vacuum furnace manufacturers, Labotemp provides dependable, high-efficiency furnace solutions trusted by aerospace, semiconductor, university, and industrial R&D laboratories.
Why Choose Labotemp Vacuum Furnace FVA-13?
✓ Ultra-High Temperature Capability: Reliable operation up to 1700°C.
✓ Precision Control & Logging: B-type control with data recording support.
✓ Efficient Heating: MoSi₂ elements for fast response and thermal stability.
✓ Safe & Reliable Design: Water cooling for long-term, high-temperature operation.
| No. | Specification | Value |
|---|---|---|
| 1 | Model No. | FVA-13 |
| 2 | Volume (L) | 12 |
| 3 | Max Temp (°C) | 1700 |
| 4 | Working Temp (°C) | 1600 |
| 5 | Voltage | 220V |
| 6 | Power (kW) | 6 |
| 7 | Chamber Size (mm) | 200×300×200 |
| 8 | Heating Element | MoSi₂ Rod |
| 9 | Thermocouple Type | B Type |
| 10 | Controller | Yudian / Shimaden |
| 11 | Cooling Requirement | Yes (Water Cooling) |
| 12 | Net weight | 500kg |
| 13 | Gross weight | 600kg |
