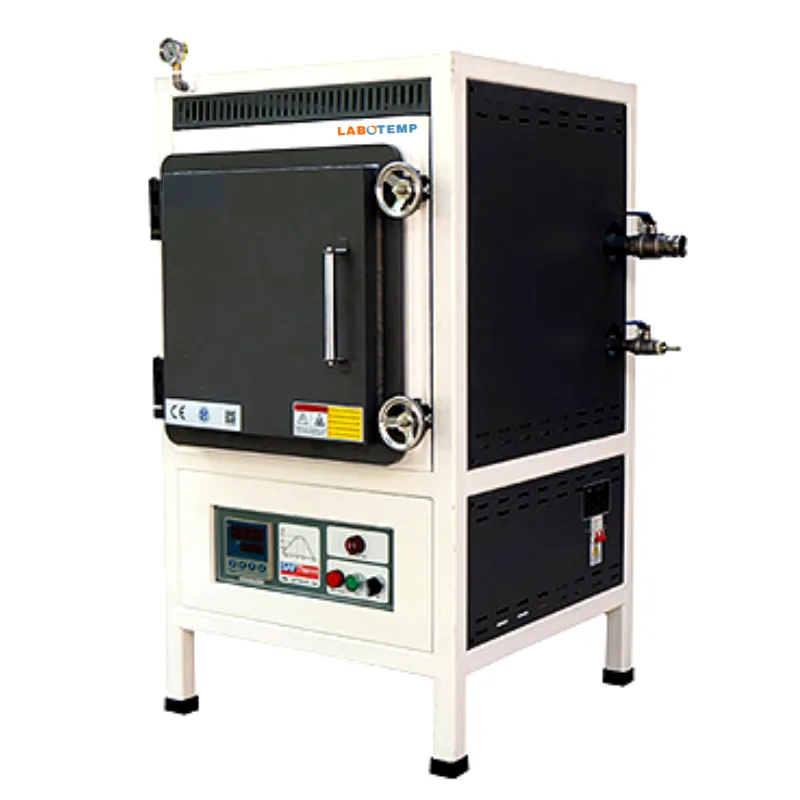

Labotemp Vacuum Furnace FVA-04 is a high-performance laboratory vacuum furnace engineered for precision thermal processing in research and industrial environments. Featuring an 18 L chamber and rated to 1200°C, this pre-vacuum supports vacuum annealing, sintering, curing and controlled heat treatment while reducing oxidation. HRE resistance wire heating elements ensure even heating and long operating life. The spacious 250×300×250 mm chamber accommodates larger samples. The system runs on 220V with efficient 6 kW heating for fast response and reliable continuous operation. Vacuum and inert-gas compatibility enable low-oxygen processing for powder metallurgy, ceramics, electronics and composite material development.
Designed and manufactured by experienced vacuum furnace manufacturer, Labotemp couples robust construction with application support and serviceability for university labs, material testing centers and industrial R&D.
Why choose Labotemp Vacuum Furnace FVA-04?
✓ High-Temperature Stability: Reliable performance up to 1200°C
✓ Uniform Heating: HRE elements ensure consistent thermal distribution
✓ Pre-Vacuum Capability: Reduces oxidation for cleaner processing
✓ Reliable Performance: Ideal for vacuum heat treatment, sintering, and annealing
| No. | Specification | Value |
|---|---|---|
| 1 | Model NO. | FVA-04 |
| 2 | Volume | 18L |
| 3 | Max Temp | 1200°C |
| 4 | Working Temp | 1100°C |
| 5 | Voltage | 220V 50Hz |
| 6 | Power | 6kW |
| 7 | Chamber Size | 250×300×250mm |
| 8 | Heating Element | HRE Wire |
| 9 | Vacuum / Pump System | No (Pre-vac Only) |
| 10 | Cooling Requirement | No |
| 11 | Net Weight | 290kg |
| 12 | Gross Weight | 380kg |
| 13 | Package Size | 1110x1050x1240 mm |
